Technical datasheet
DCE-SRCCylinder head screws
Cylinder head screws
for DCE tube clamps, with hexagon socket, steel
|
Code
|
Description
|
d
|
l
|
l1
|
sw
|
For tube clamp
|
|
|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
570181
|
DCE-SRC-S-M6X20-ZN-EH
|
M 6
|
20
|
20
|
5
|
DCE-S
|
7
|
|
570183
|
DCE-SRC-S-M6X25-ZN-EH
|
M 6
|
25
|
25
|
5
|
DCE-S
|
7
|
|
570185
|
DCE-SRC-S-M6X30-ZN-EH
|
M 6
|
30
|
30
|
5
|
DCE-S
|
8
|
|
570187
|
DCE-SRC-S-M6X35-ZN-EH
|
M 6
|
35
|
24
|
5
|
DCE-S
|
10
|
|
570189
|
DCE-SRC-S-M6X50-ZN-EH
|
M 6
|
50
|
24
|
5
|
DCE-S
|
13
|
|
570191
|
DCE-SRC-S-M6X60-ZN-EH
|
M 6
|
60
|
24
|
5
|
DCE-S
|
15
|
Material
Zinc-plated steel, class 8.8.
Features and applications
Cylindrical head screws (ISO 4762) for fastening the half clamps of the DIN 3015-1 standard series.
Typically used with the DCE-WA flat washer.
Produits associés
NEW

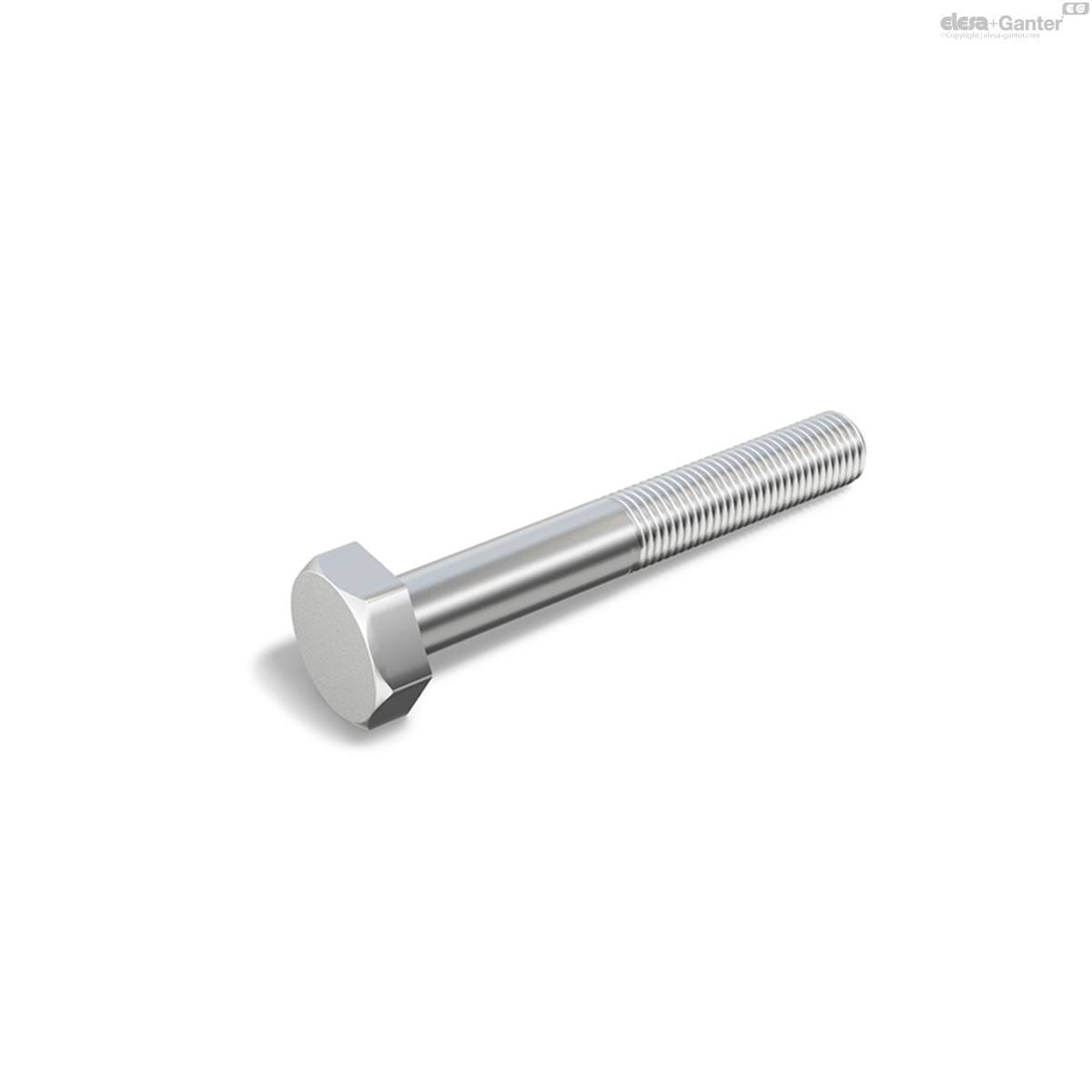

DCE-SRE
