CV-T-A-PCâbles de retenue

Avec un anneau et une plaque

Polyéthylène et acier inoxydable

Technical datasheet

CV-T-A-P

Avec un anneau et une plaque

Sans anneaux et sans plaques

CV-T-P

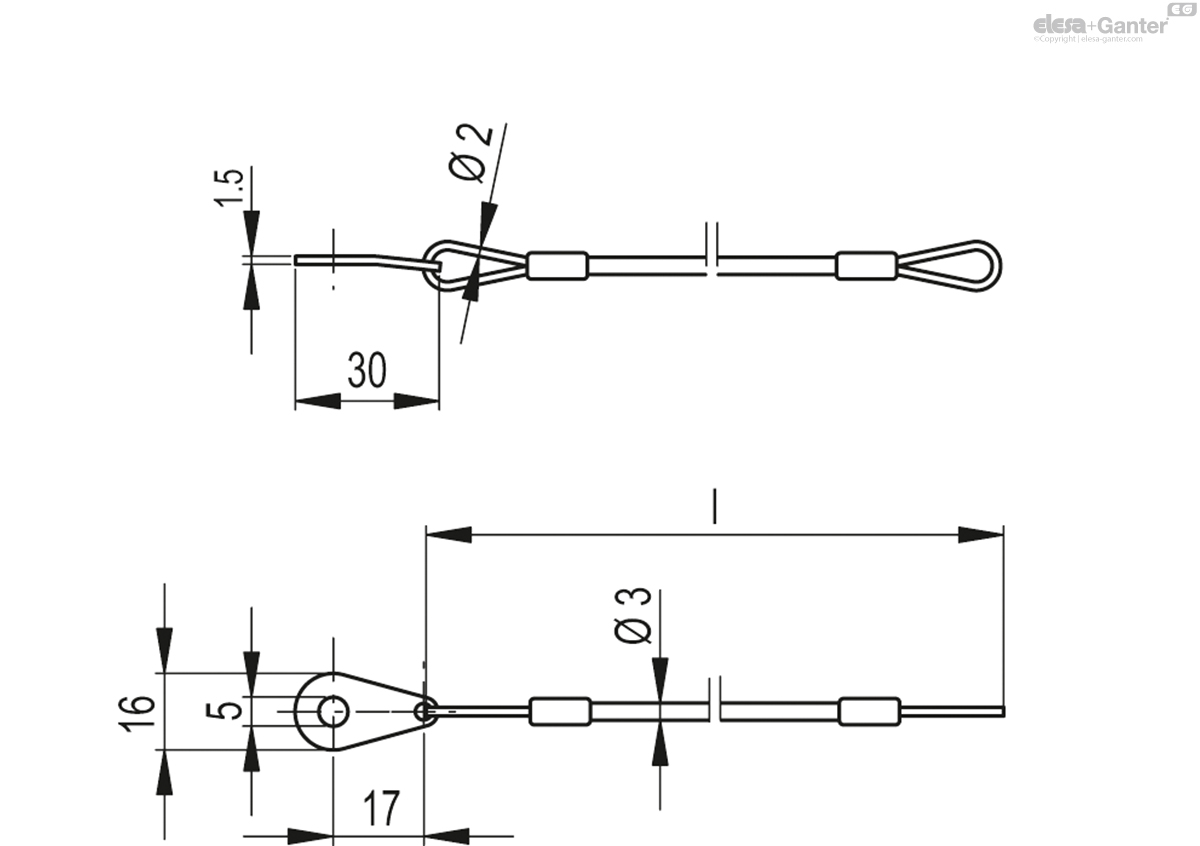

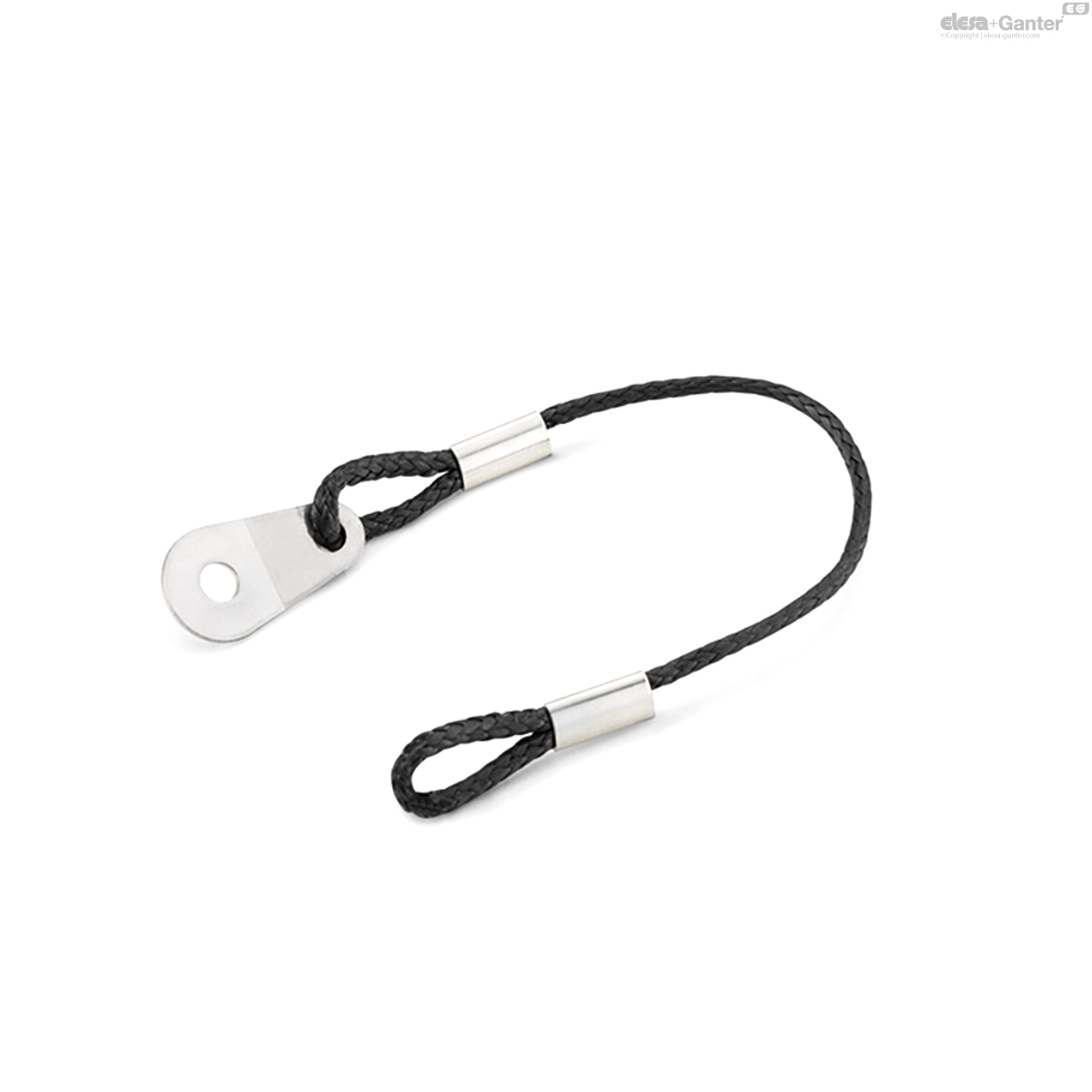

Sans anneaux et avec une assiette.

CV-T-A-P

Réinitialiser

Code	Description	d₁	d₂	l	Max. static load [N]

76221	CV-T-A-P-18-150	18	1.3	150	160	9
76222	CV-T-A-P-24-150	24	1.5	150	160	9
76223	CV-T-A-P-30-150	30	1.8	150	180	11
76226	CV-T-A-P-18-200	18	1.3	200	160	9
76227	CV-T-A-P-24-200	24	1.5	200	160	10
76228	CV-T-A-P-30-200	30	1.8	200	180	11
76231	CV-T-A-P-18-320	18	1.3	320	160	9
76232	CV-T-A-P-24-320	24	1.5	320	160	10
76233	CV-T-A-P-30-320	30	1.8	320	180	12
76236	CV-T-A-P-18-500	18	1.3	500	160	10
76237	CV-T-A-P-24-500	24	1.5	500	160	11
76238	CV-T-A-P-30-500	30	1.8	500	180	12

Main specifications
General information

Cable

High-modulus polyethylene (HMWPE), black.

Standard executions

AISI 304 stainless steel fixing plate.

NERINOX treated stainless steel ring with two coils.

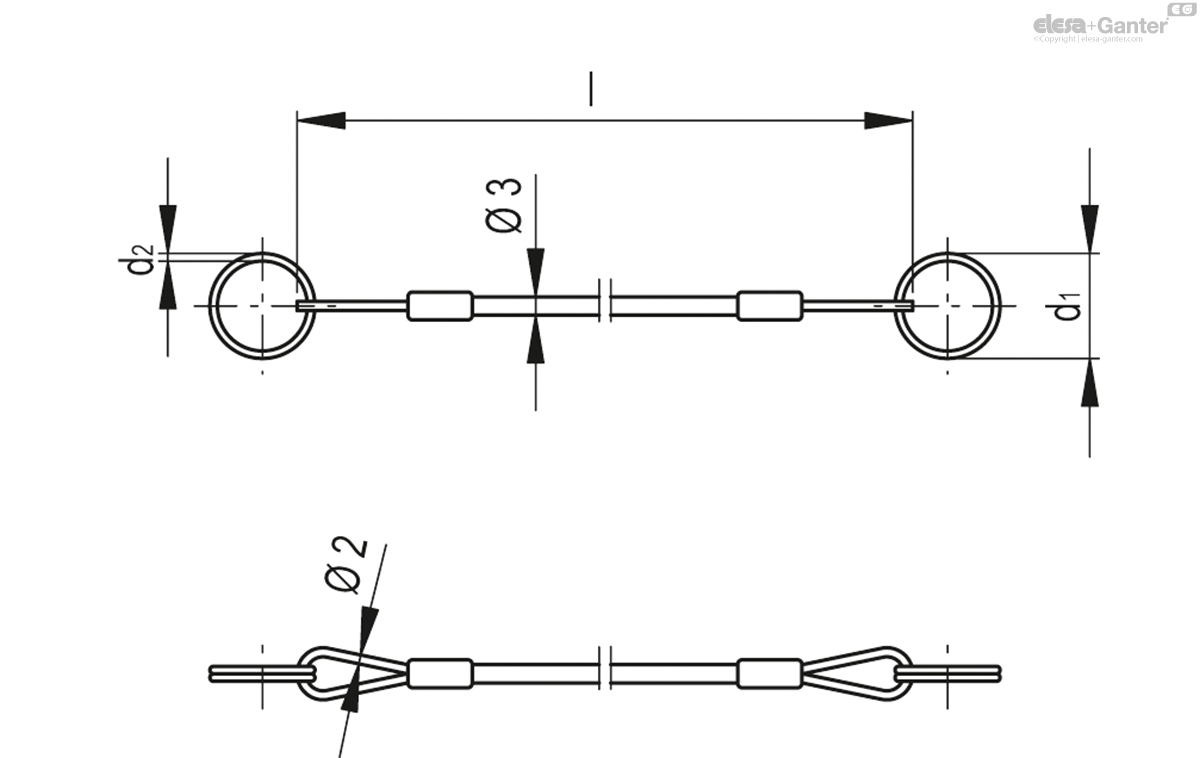

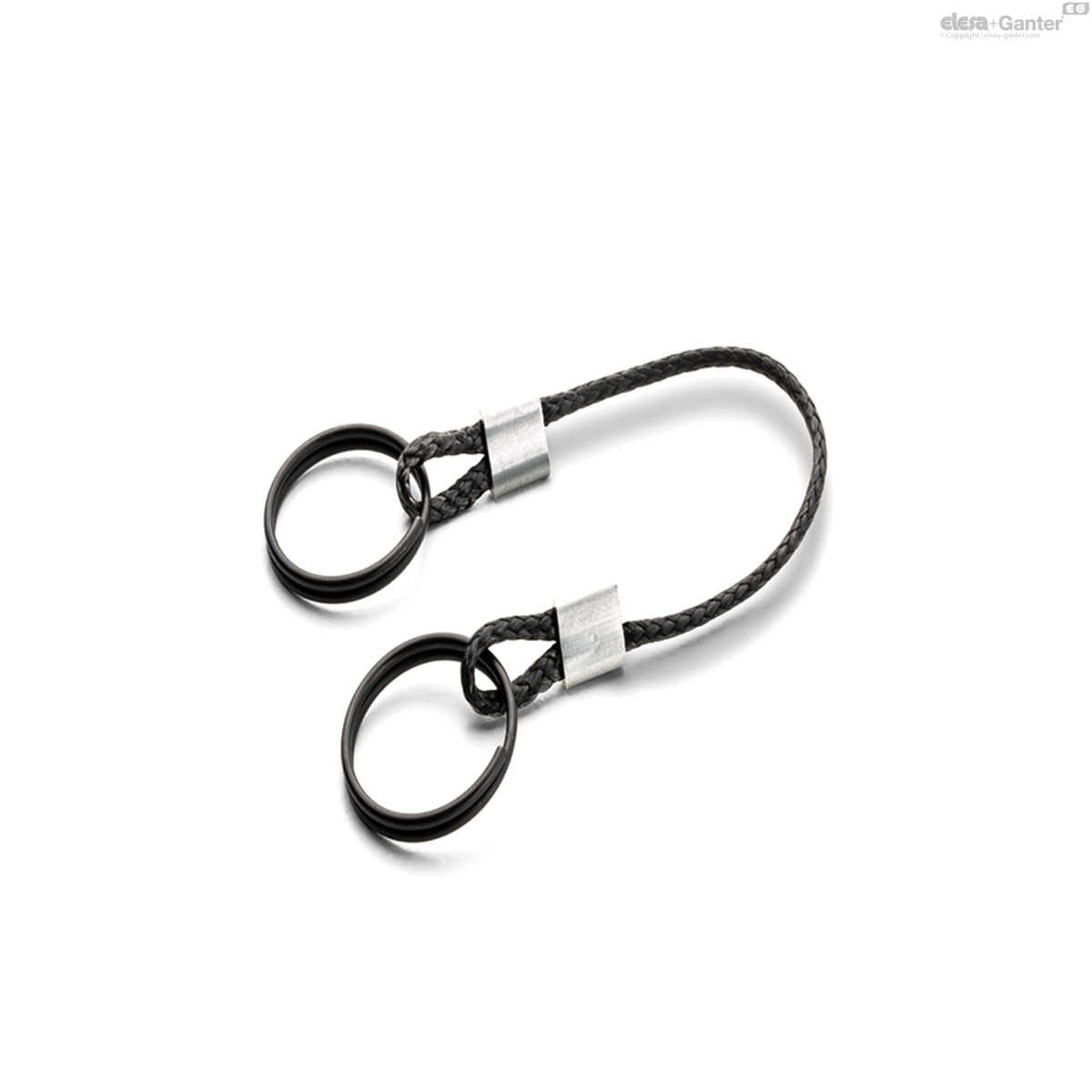

CV-T-2A: cable with two clamping rings.

CV-T-A-P: cable with one ring and one clamping plate.

CV-T-2P: cable with two clamping plates.

CV-T: cable without rings and without plates.

CV-T-P: cable without rings and with one plates.

Features and applications

CV-T cables are light yet remarkably tough.

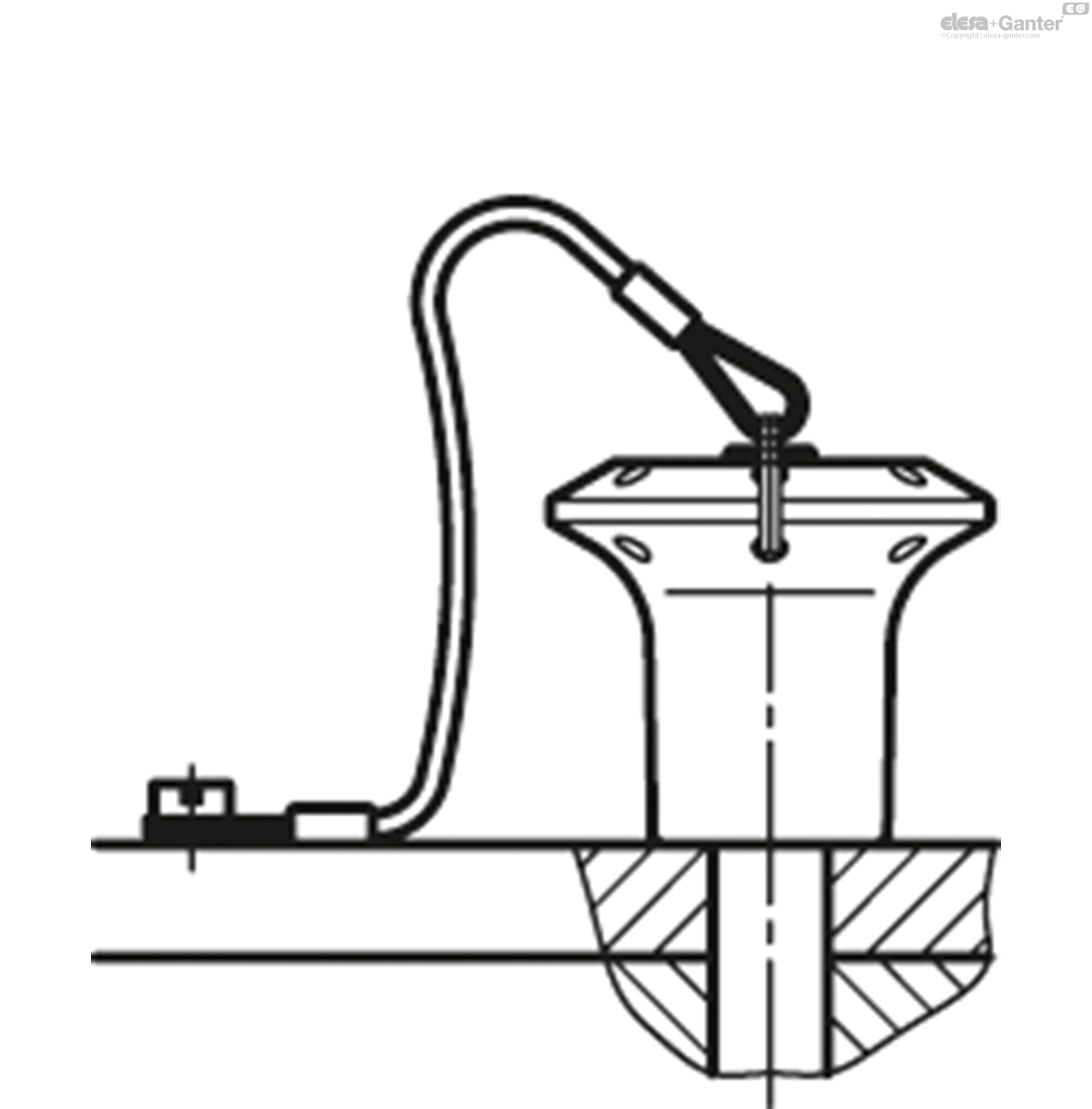

They are mainly used in combination with the different types of self-locking pins or in cases where you want to make small components or tools unmissable so that they are always available and at hand.

In particular, they can be used in place of the CT-S ball chain, when a particular tear resistance is required.
