DIN 653-NIVis moletées plates

Acier inoxydable

Acier / Acier inoxydable , Type plat

Technical datasheet

DIN 653-NI

Réinitialiser

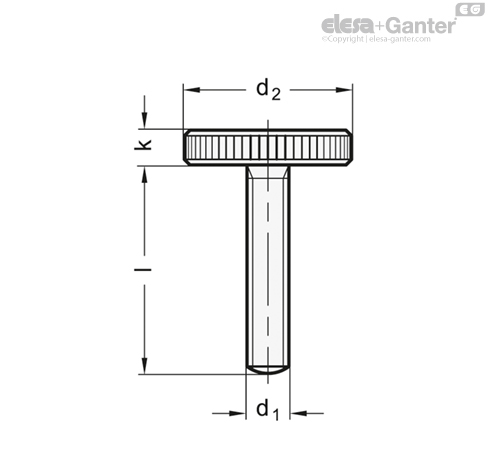

Code	d₁	l	d₂	k

DIN 653-M3-6-NI	M 3	6	12	2.5	2
DIN 653-M3-8-NI	M 3	8	12	2.5	3
DIN 653-M3-10-NI	M 3	10	12	2.5	3
DIN 653-M3-16-NI	M 3	16	12	2.5	3
DIN 653-M3-20-NI	M 3	20	12	2.5	3
DIN 653-M4-8-NI	M 4	8	16	3.5	6
DIN 653-M4-10-NI	M 4	10	16	3.5	7
DIN 653-M4-12-NI	M 4	12	16	3.5	7
DIN 653-M4-16-NI	M 4	16	16	3.5	6
DIN 653-M4-20-NI	M 4	20	16	3.5	6
DIN 653-M4-25-NI	M 4	25	16	3.5	7
DIN 653-M5-10-NI	M 5	10	20	4	11
DIN 653-M5-12-NI	M 5	12	20	4	11
DIN 653-M5-16-NI	M 5	16	20	4	12
DIN 653-M5-20-NI	M 5	20	20	4	12
DIN 653-M5-25-NI	M 5	25	20	4	13
DIN 653-M5-30-NI	M 5	30	20	4	13
DIN 653-M6-12-NI	M 6	12	24	5	18
DIN 653-M6-16-NI	M 6	16	24	5	20
DIN 653-M6-20-NI	M 6	20	24	5	20
DIN 653-M6-25-NI	M 6	25	24	5	21
DIN 653-M6-30-NI	M 6	30	24	5	22
DIN 653-M6-40-NI	M 6	40	24	5	25
DIN 653-M8-16-NI	M 8	16	30	6	35
DIN 653-M8-20-NI	M 8	20	30	6	37
DIN 653-M8-25-NI	M 8	25	30	6	40
DIN 653-M8-30-NI	M 8	30	30	6	42
DIN 653-M8-35-NI	M 8	35	30	6	43
DIN 653-M8-40-NI	M 8	40	30	6	48
DIN 653-M10-20-NI	M 10	20	36	8	72
DIN 653-M10-25-NI	M 10	25	36	8	74
DIN 653-M10-30-NI	M 10	30	36	8	76
DIN 653-M10-35-NI	M 10	35	36	8	78
DIN 653-M10-40-NI	M 10	40	36	8	80

Version in Steel

Property class 5

Visible face fine turned

Blackened

Zinc plated, blue passivated ZB

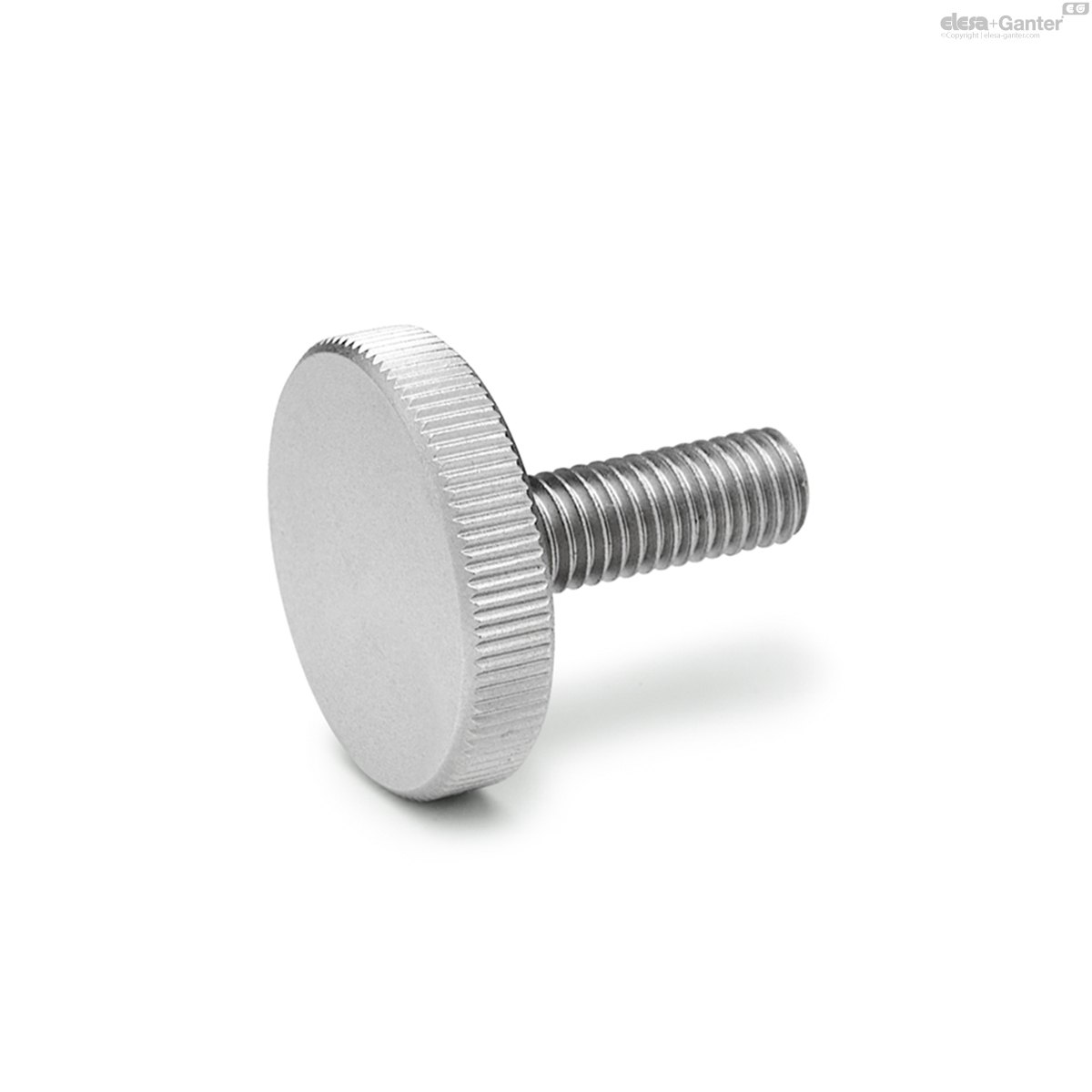

Version in Stainless Steel

Stainless steel AISI 303 NI

Matte shot-blasted

Knurled screws DIN 653 are turned entirely from a single piece. The thread of the screw generally extends up to the head and ends in a runout without recess as per the DIN designation A.

They are suitable for universal use and can be quickly tightened and loosened without tools.
