Technical datasheet
DIN 582-A4Écrous à anneau de levage

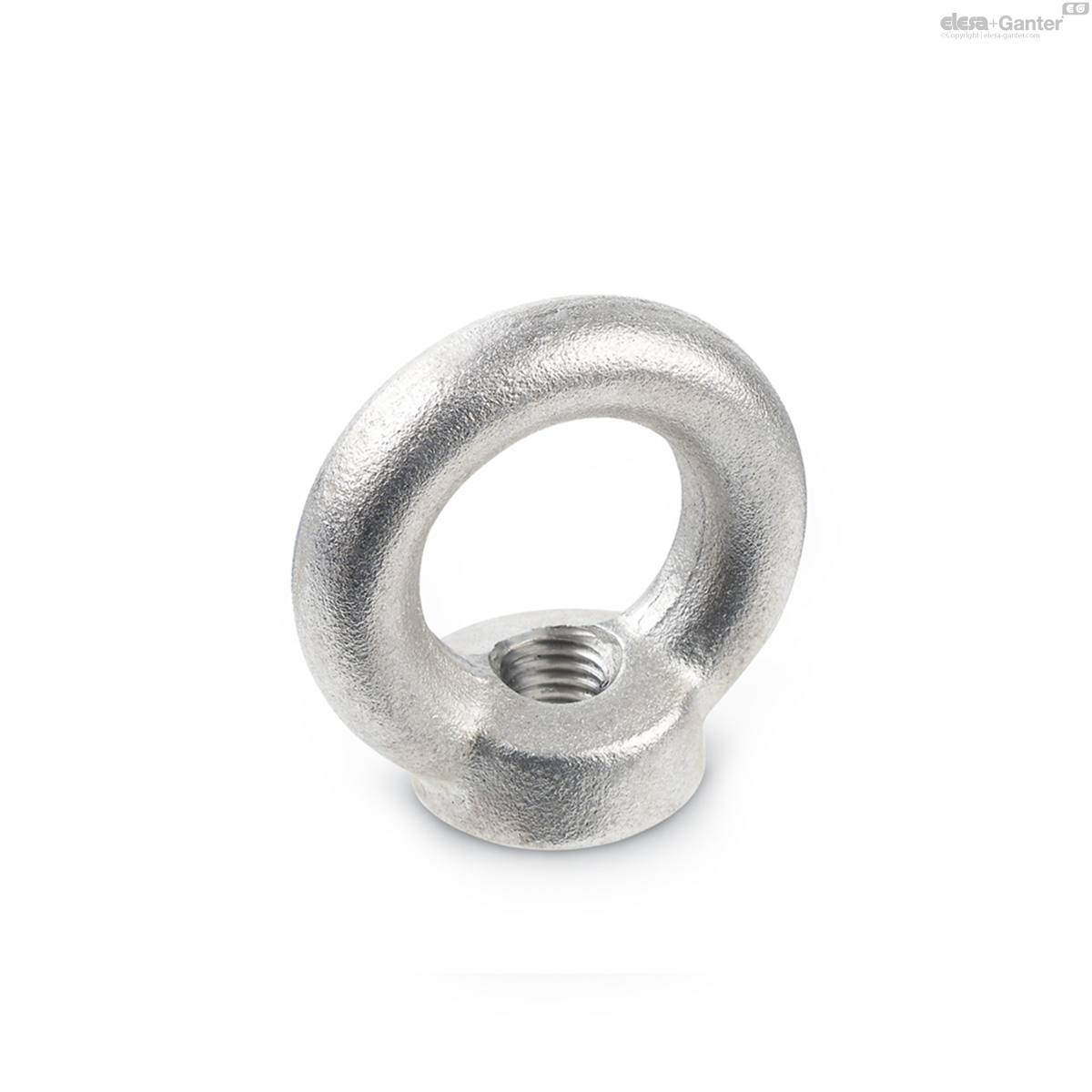

Acier inoxydable A4
Acier / Acier inoxydable
|
Code
|
d1
|
d2
|
d3
|
d4
|
e
|
h
|
k
|
m
|

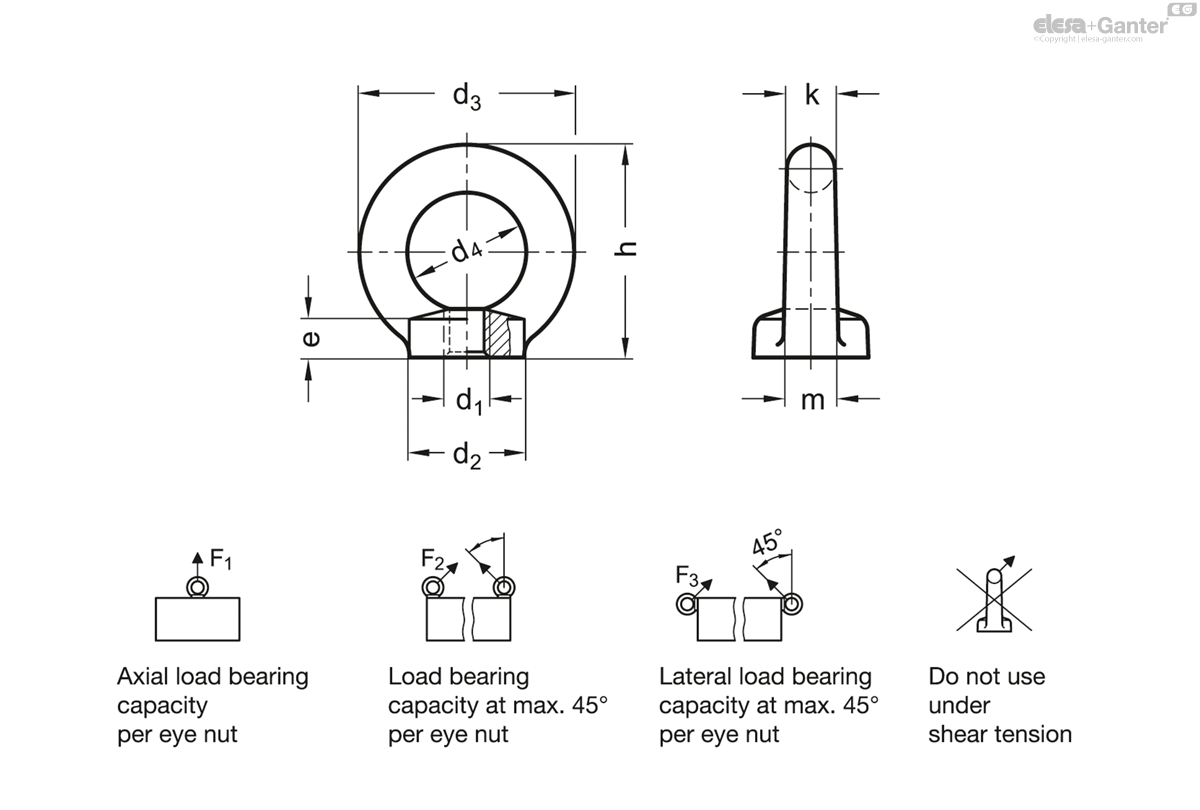

F1 max. in N
|
F2 max. in N
|
F3 max. in N
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
DIN 582-M6-A4
|
M 6
|
20
|
36
|
20
|
8.5
|
36
|
8
|
10
|
750
|
550
|
380
|
50
|
|
DIN 582-M8-A4
|
M 8
|
20
|
36
|
20
|
8.5
|
36
|
8
|
10
|
1400
|
1000
|
700
|
78
|
|
DIN 582-M10-A4
|
M 10
|
25
|
45
|
25
|
10
|
45
|
10
|
12
|
2300
|
1700
|
1150
|
88
|
|
DIN 582-M12-A4
|
M 12
|
30
|
54
|
30
|
11
|
53
|
12
|
14
|
3400
|
2400
|
1700
|
167
|
|
DIN 582-M16-A4
|
M 16
|
35
|
63
|
35
|
13
|
62
|
14
|
16
|
7000
|
5000
|
3500
|
249
|
|
DIN 582-M20-A4
|
M 20
|
40
|
72
|
40
|
16
|
71
|
16
|
19
|
12000
|
8600
|
6000
|
380
|
|
DIN 582-M24-A4
|
M 24
|
50
|
90
|
50
|
20
|
90
|
20
|
24
|
18000
|
12900
|
9000
|
753
|
Steel C 15 E ST
Steel C 15 E ST
- Drop-forged
- Annealed
- Contact face machined
- Zinc plated, blue passivated
Stainless steel NI
Stainless steel NI
- Drop-forged
- Contact face machined
Stainless steel A4
Stainless steel A4
- Drop-forged
- Contact face machined
The following guidelines of the lifting eye nuts DIN 582 have to be observed in addition to the load values given in the above table.
The eye nut must be of fully screwd in to achieve a perfect contact between the two mating faces.
Both threads must be of a equal length and the base material of equal strength to that of the nut.
The operating instructions also contain further important information and notes. It is part of the scope of delivery and can be downloaded as a PDF.
The official DIN standard sheet specifies the additional sizes M42, M48, M56, M64, M72x6, M80x6 and M100x6.
