Technical datasheet
DIN 468-DManivelles droites

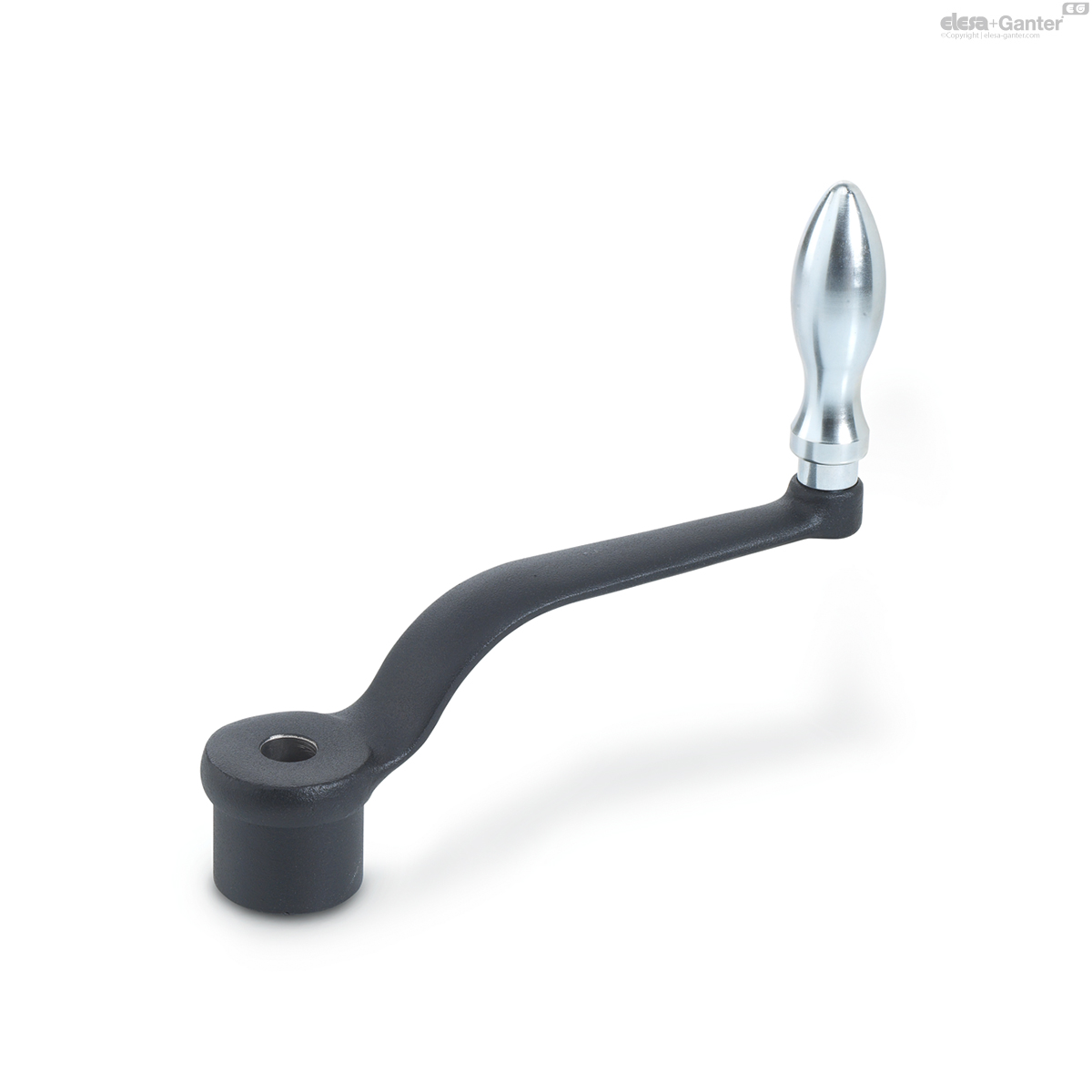

Avec poignée tournante
Fonte
DIN 468-D
|

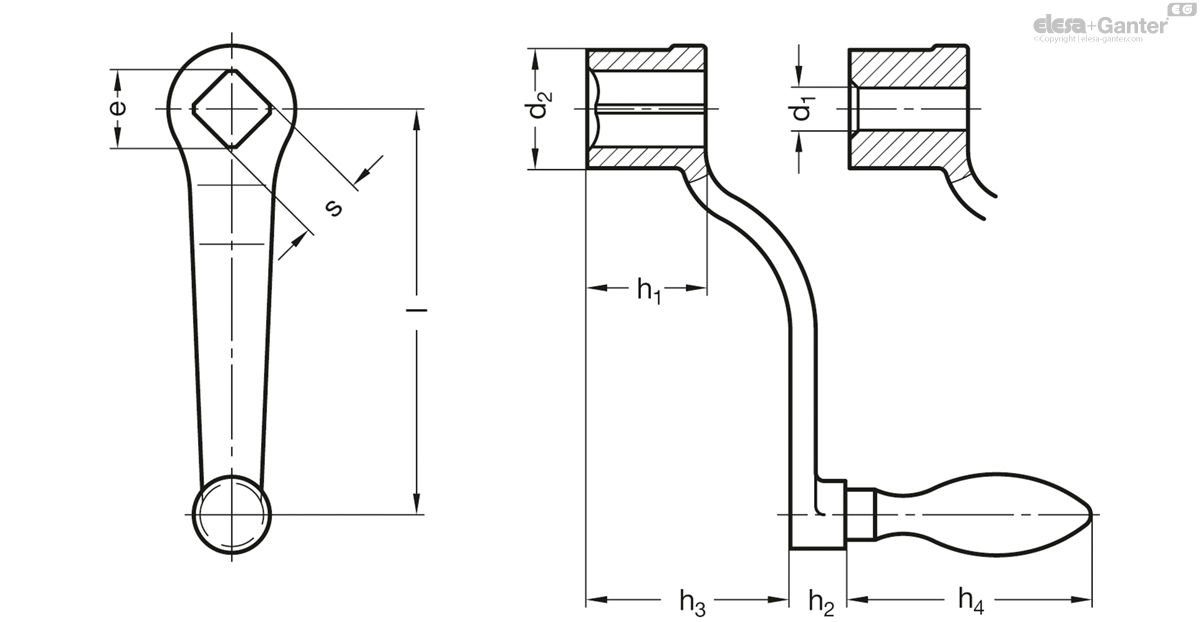

Code
|
Length l
|
s H11 Square
|
e min.
|
d1 H7 bore
|
d2
|
h1
|
h2
|
h3 ≈
|
h4 ≈
|
Ø Griff
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|
|
DIN 468-80-B8-D
|
80
|
-
|
-
|
B 8
|
24
|
24
|
13
|
38
|
61
|
18
|
195
|
|
DIN 468-100-B10-D
|
100
|
-
|
-
|
B 10
|
28
|
28
|
13
|
48
|
67
|
20
|
293
|
|
DIN 468-125-B10-D
|
125
|
-
|
-
|
B 10
|
34
|
34
|
14
|
55
|
76
|
22
|
463
|
|
DIN 468-160-B14-D
|
160
|
-
|
-
|
B 14
|
38
|
38
|
14
|
65
|
83
|
25
|
697
|
|
DIN 468-200-B17-D
|
200
|
-
|
-
|
B 17
|
44
|
44
|
21
|
78
|
96.5
|
28
|
1043
|
|
DIN 468-250-B17-D
|
250
|
-
|
-
|
B 17
|
48
|
48
|
21
|
90
|
105.5
|
32
|
1517
|
|
DIN 468-315-B20-D
|
315
|
-
|
-
|
B 20
|
54
|
54
|
26
|
105
|
117
|
36
|
2298
|
Types
Types
- Type F: With fixed handle
- Type D: With revolving handle
Body
Body
Cast iron (GGG)
- Powder coated
- Black, textured finish
- Face of the hub machined
Fixed handle DIN 39 for type F
Fixed handle DIN 39 for type F
Steel
Zinc plated, blue passivated
Revolving handle DIN 98 for type D
Revolving handle DIN 98 for type D
Steel
Zinc plated, blue passivated
The hub bores d1 H7 are not provided for in the official standard sheet.
- Cross Holes GN 110
- Squares DIN 79
- ISO-Fundamental Tolerances
