DIN 1804-WNIÉcrous à créneaux

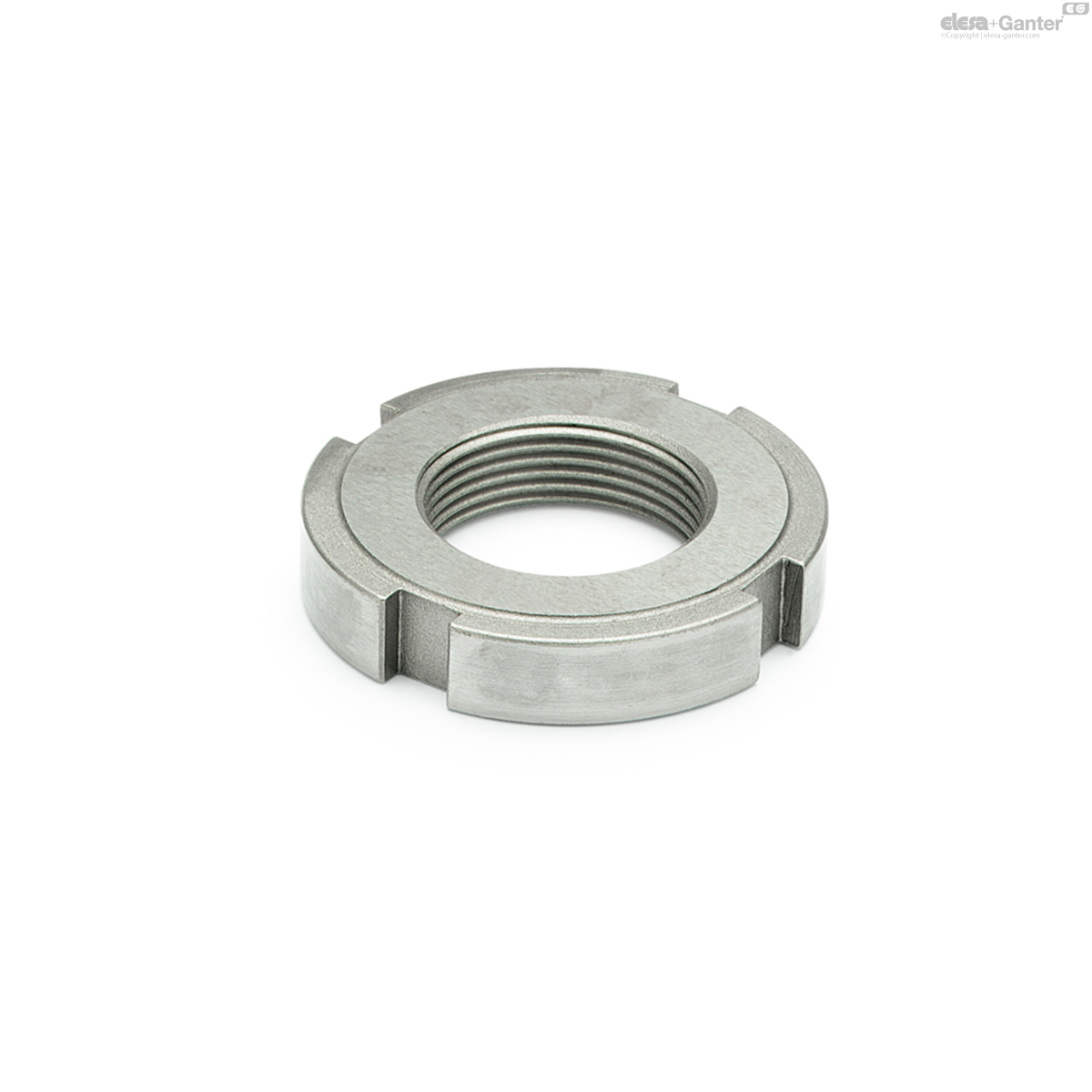

Contre-écrous à fente, Acier inoxydable
Acier / Acier inoxydable
DIN 1804-WNI
|
Code
|

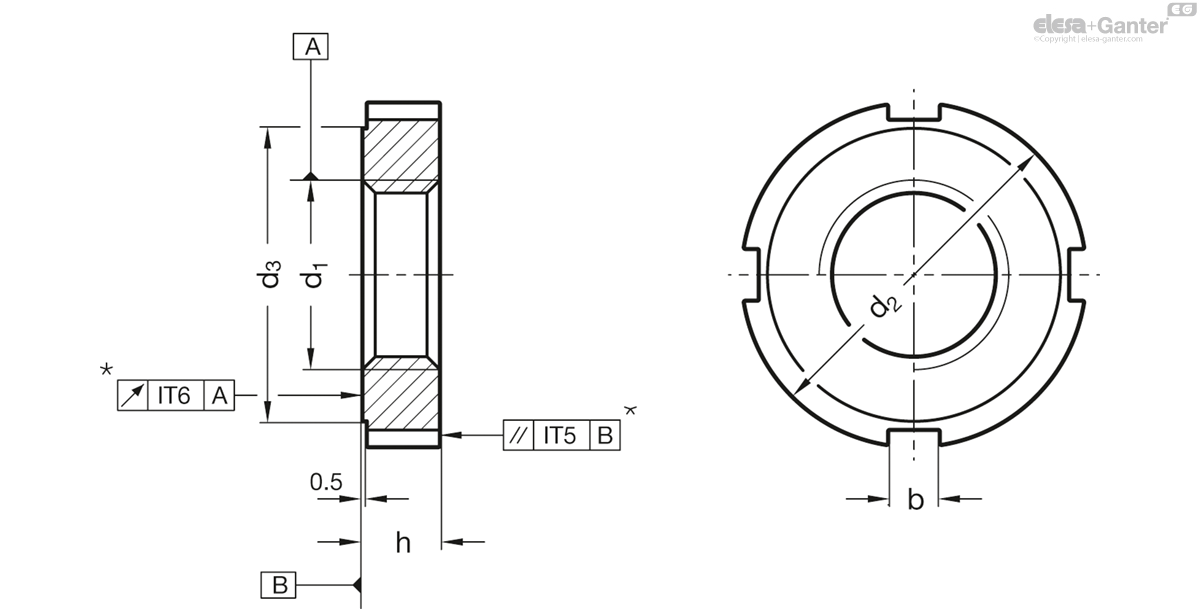

d1
|
d2 h11
|
d3
|
b
|
h h14
|
Code no. for
C-Spanner |
|
|---|---|---|---|---|---|---|---|
|
DIN 1804-M16x1,5-WNI
|
M16x1.5
|
32
|
27
|
5
|
7
|
DIN 1810-A30-32
|
30
|
|
DIN 1804-M20x1,5-WNI
|
M20x1.5
|
36
|
30
|
6
|
8
|
DIN 1810-A34-36
|
40
|
|
DIN 1804-M24x1,5-WNI
|
M24x1.5
|
42
|
36
|
6
|
9
|
DIN 1810-A40-42
|
60
|
|
DIN 1804-M28x1,5-WNI
|
M28x1.5
|
50
|
43
|
7
|
10
|
DIN 1810-A45-50
|
95
|
|
DIN 1804-M30x1,5-WNI
|
M30x1.5
|
50
|
43
|
7
|
10
|
DIN 1810-A45-50
|
90
|
|
DIN 1804-M35x1,5-WNI
|
M35x1.5
|
55
|
48
|
7
|
11
|
DIN 1810-A52-55
|
113
|
|
DIN 1804-M40x1,5-WNI
|
M40x1.5
|
62
|
54
|
8
|
12
|
DIN 1810-A58-62
|
150
|
|
DIN 1804-M45x1,5-WNI
|
M45x1.5
|
68
|
60
|
8
|
12
|
DIN 1810-A68-75
|
175
|
|
DIN 1804-M50x1,5-WNI
|
M50x1.5
|
75
|
67
|
8
|
13
|
DIN 1810-A68-75
|
230
|
|
DIN 1804-M55x1,5-WNI
|
M55x1.5
|
80
|
70
|
10
|
13
|
DIN 1810-A80-90
|
230
|
|
DIN 1804-M60x1,5-WNI
|
M60x1.5
|
90
|
80
|
10
|
13
|
DIN 1810-A80-90
|
39
|
* Position tolerances apply to type H
Types
- Type W: Steel, not hardened
- Type WNI: Stainless Steel, not hardened
- Type H: Steel, hardened
Type W
Steel
- Tensile strength class 5
- not hardened
- blackened
Type WNI
Stainless Steel AISI 303
- not hardened
Type H
Steel
- Tensile strength class 5
- hardened HRC 60 ± 2 (thread not hardened)
- Mating surface ground or fine turned
On slotted locknuts DIN 1804 the ground surface d3 stands proud and should be used as a mating surface.
The sizes M45x1.5 to M60x1.5 have 6 slots.
The official DIN standard sheets specifies additional sizes (up to M 200 x 3).
- C-Spanner DIN 1810 (Code no. see table)
Produits associés
DIN 1810
Clé en C
GN 1804.1-ST
Écrous à créneaux
Acier / acier inoxydable, autofreiné, avec bague en polyamide
