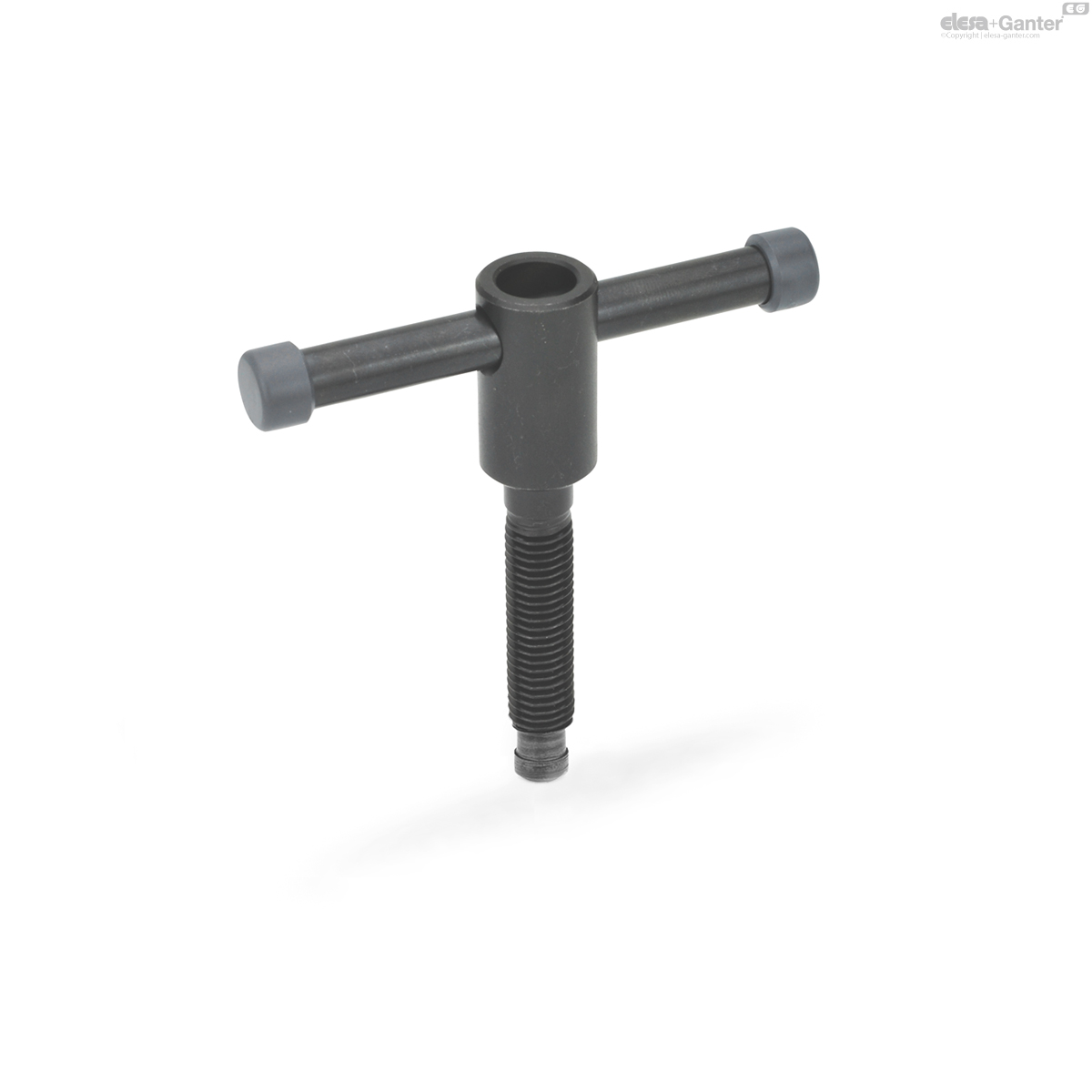

6306-M8-40-D DIN 6306-ST Acier

6306-M8-40-D

DIN 6306-ST Acier

Acier / Inox , avec barre mobile
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Délai: 1-2 semaines Toutes les tailles et variantes de DIN 6306

🔒 Prix, stock en temps réel & téléchargements CAO

Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.

Se connecter Demander un compte

Caractéristiques techniques

Code
DIN 6306-M8-40-D
d1
M 8
l1
40
d2
14
d3
6
d4 h11
6
l2
30
l3
60
l4
5
l5 ≈
3
l6
15
l7
45
z ≈
7.6
52
6306-M8-40-D drawing

Types

  • Type D: Without thrust pad
  • Type E: With thrust pad DIN 6311 (only for steel)

Tommy screw

  • Steel
  • Property class 5.8
  • Blackened
  • Thrust point hardened
  • Stainless steel AISI 304 NI

Bar end caps

Plastic, Polyethylene (PE)

Gray

Thrust pad for type E

Steel

  • Case-hardened
  • Blackened
  • Snap ring
  • Spring steel wire

Pressure spring

Stainless steel AISI 301

Tommy screws DIN 6306 are used for clamping and pressing. Combining them with thrust pads or base plates increases the contact surface and allows for angle compensation.

The sliding bar is protected against loss by the end caps and held in any position by the pressure spring.

Installation of the thrust pad (type E) is made easier if the pivot is positioned at an angle against the closed side of the snap ring and then pressed in.
