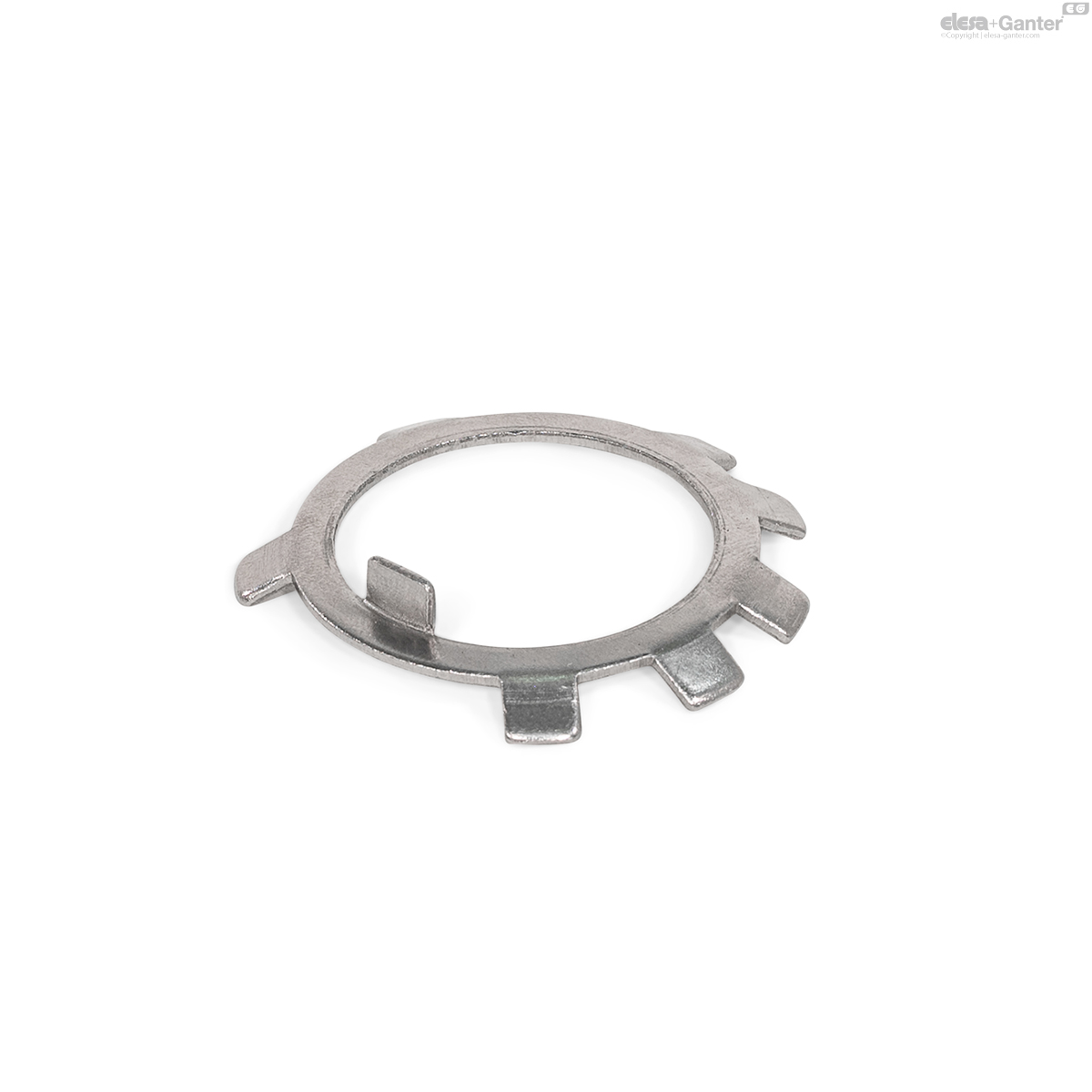

70952-40-A-ST DIN 70952 Plaques de verrouillage

70952-40-A-ST

DIN 70952 Plaques de verrouillage

pour écrous à encoches DIN 70852, acier
  • Icons/__logo__RoHS__.png

Délai: 1-2 semaines Toutes les tailles et variantes de DIN 70952

🔒 Prix, stock en temps réel & téléchargements CAO

Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.

Se connecter Demander un compte

Caractéristiques techniques

Code
DIN 70952-40-A-ST
d1
40
a
38.6
b1 h11
8
b2 h11
6
b3 C11
8
d2
49
h
6.2
s
1.2
t -0.1
38.5
For Slotted Locknuts DIN 70852
M 40 x 1.5
7
70952-40-A-ST drawing

Type

  • Type A: Angled serrations

Steel ST

Plain finish

Locking plates DIN 70952 secure slotted locknuts DIN 70852 with a positive connection to prevent undesired loosening or adjustment, such as when they are used to set the axial play of a bearing.

The inner tab positions the locking plate in a groove created in the threaded bolt for this purpose. After installing and adjusting the slotted locknut, a matching locking tab is bent into a groove in the nut to secure the parts in place. Due to this deformation, only a single use is recommended.
