9861-4-80-D-HSS DIN 9861 Poinçons de coupe

9861-4-80-D-HSS

DIN 9861 Poinçons de coupe

Acier HSS
  • Icons/__logo__RoHS__.png

Délai: 1-2 semaines Toutes les tailles et variantes de DIN 9861

🔒 Prix, stock en temps réel & téléchargements CAO

Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.

Se connecter Demander un compte

Caractéristiques techniques

Code
DIN 9861-4-80-D-HSS
d1 h6
4
Length l +0.5
80
d2 ±0.2
5.5
h +0.2
1.8
7

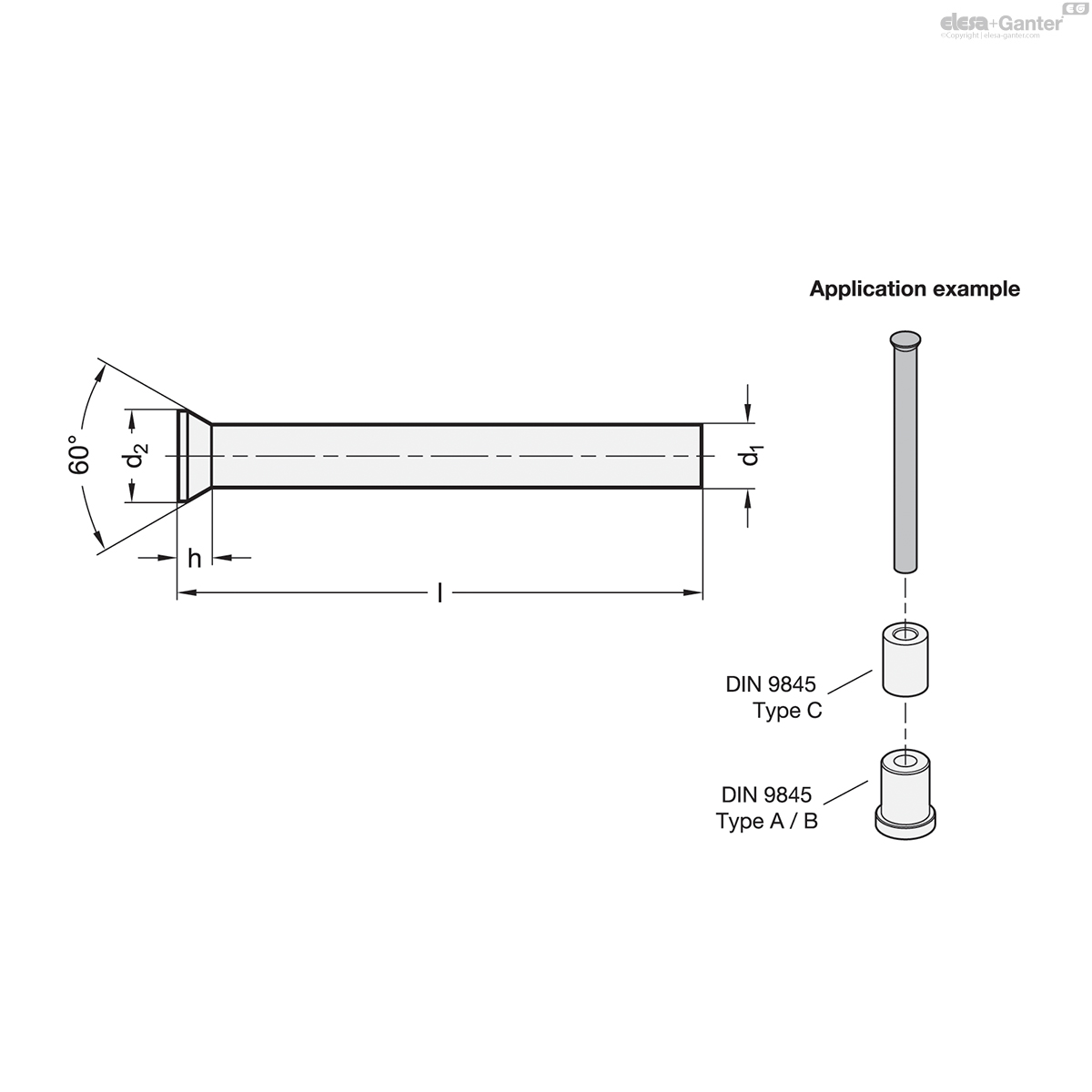

9861-4-80-D-HSS drawing

Type

  • Type D: With conical head

Steel HSS

  • Shaft hardened (HRC 62 +2)
  • Head hardened (HRC 50 +5)

Cutting punches DIN 9861 are used, for example, in combination with cutting bushings DIN 9845 in punching tools. Depending on the application, however, they can also be used as positioning, guide, ejector or embossing pins and can be machined accordingly.

Cutting punches DIN 9861 are characterized by tight shape and position tolerances, a finely machined surface and high wear resistance.

  • DIN 9845 Cutting Bushings / Guide Bushings
  • Other dimensions
