9845-3-20-B-HSS DIN 9845 Coupe des bagues

9845-3-20-B-HSS

DIN 9845 Coupe des bagues

Acier HSS / Acier, douilles de guidage de poinçon
  • Icons/__logo__RoHS__.png

Délai: 1-2 semaines Toutes les tailles et variantes de DIN 9845

🔒 Prix, stock en temps réel & téléchargements CAO

Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.

Se connecter Demander un compte

Caractéristiques techniques

Code
DIN 9845-3-20-B-HSS
d1 H8
3
l1
20
d2 k6
7
d3
9
d4
d1 +0.5
l2
17
l3
16
6

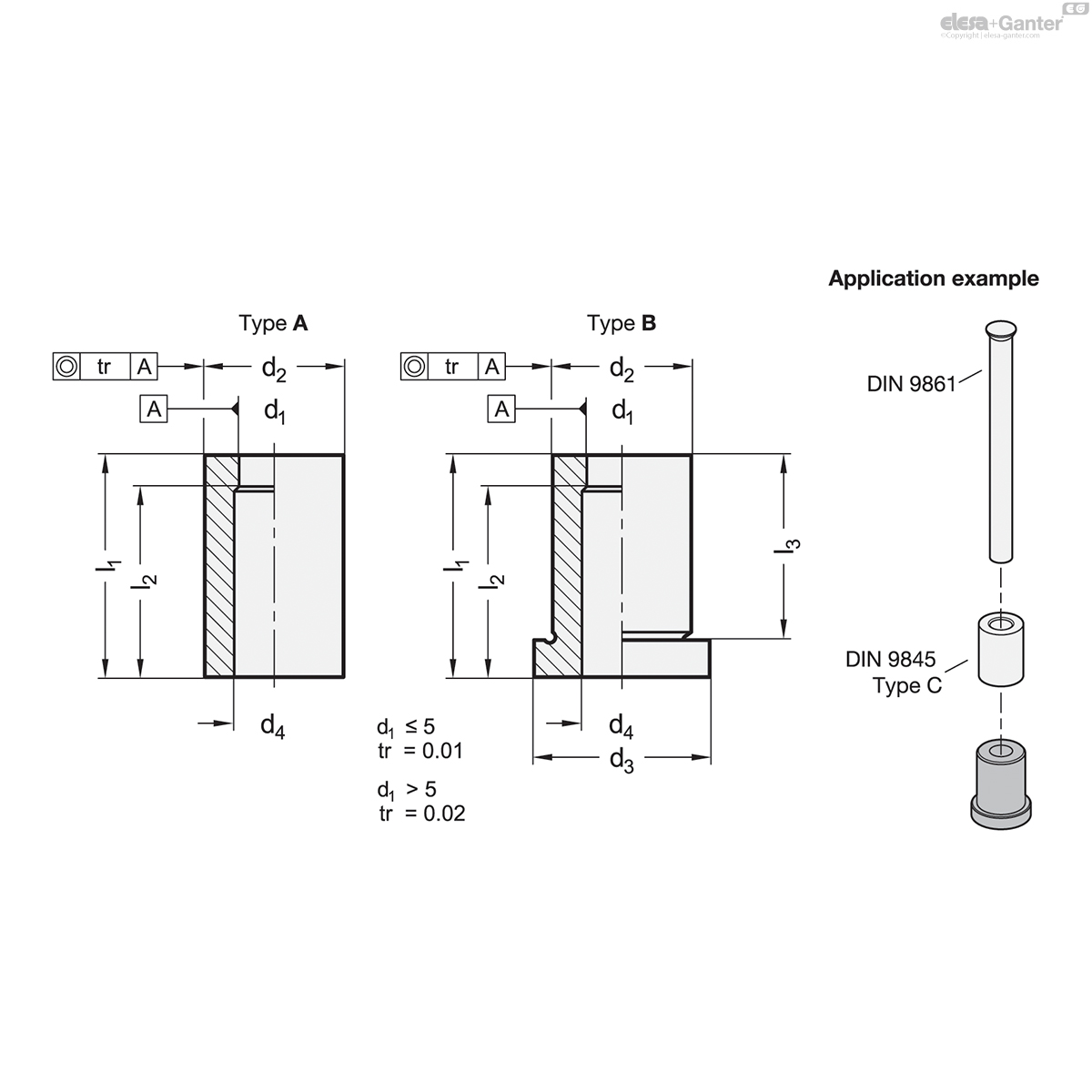

9845-3-20-B-HSS drawing

Types

  • Type A: Without collar
  • Type B: With collar
  • Type C: Without collar

Steel HSS (Types A, B)

  • Hardened and tempered (HRC 62 +2)
  • Tolerances and cutting edges ground

Steel ST (Type C)

  • Hardened (HRC 62 +2)
  • Fit surfaces d1 and d2 ground

Cutting bushings DIN 9845 (Types A, B) are used, for example, in combination with cutting punches DIN 9861 in punching tools. When selecting the cutting bushing, it is necessary to consider the required cutting gap, which depends on the material to be punched and the material thickness. The diameter d4 is larger than the cutting bore d1 to enable reliable ejection of the punched part. If necessary, cutting bushings can be machined to give them an application-specific geometry.

Guide bushings DIN 9845 (Type C) are used as punch guide bushings. However, they are also suitable for guiding and positioning of guide pins, for example, as alternatives to drill bushings DIN 172/ DIN 179 when the tolerance range should be closer to the nominal dimension. When combined with a location bore with tolerance H7, the outer diameter of the guide bushing with tolerance n6 results in a transition fit.

  • Other bores d1 (Types A, B, C)
  • Other lengths l1 (Types A, B)
