VVO-40-G1/4-T-N VVO-40-T-N Caoutchouc naturel

VVO-40-G1/4-T-N

VVO-40-T-N Caoutchouc naturel

Ventouses rondes à un soufflet
  • Icons/__logo__RoHS__.png

Délai: 1-2 semaines Toutes les tailles et variantes de VVO-40

🔒 Prix, stock en temps réel & téléchargements CAO

Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.

Se connecter Demander un compte

Caractéristiques techniques

Code
VV.59002
d
40
d1
G1/4
d2
M8
h
52
h1
35
h2
17
h3
13
h4
18
s
20
F*
[Kg]
3.14
Volumen#
[cm3]
16.2
33

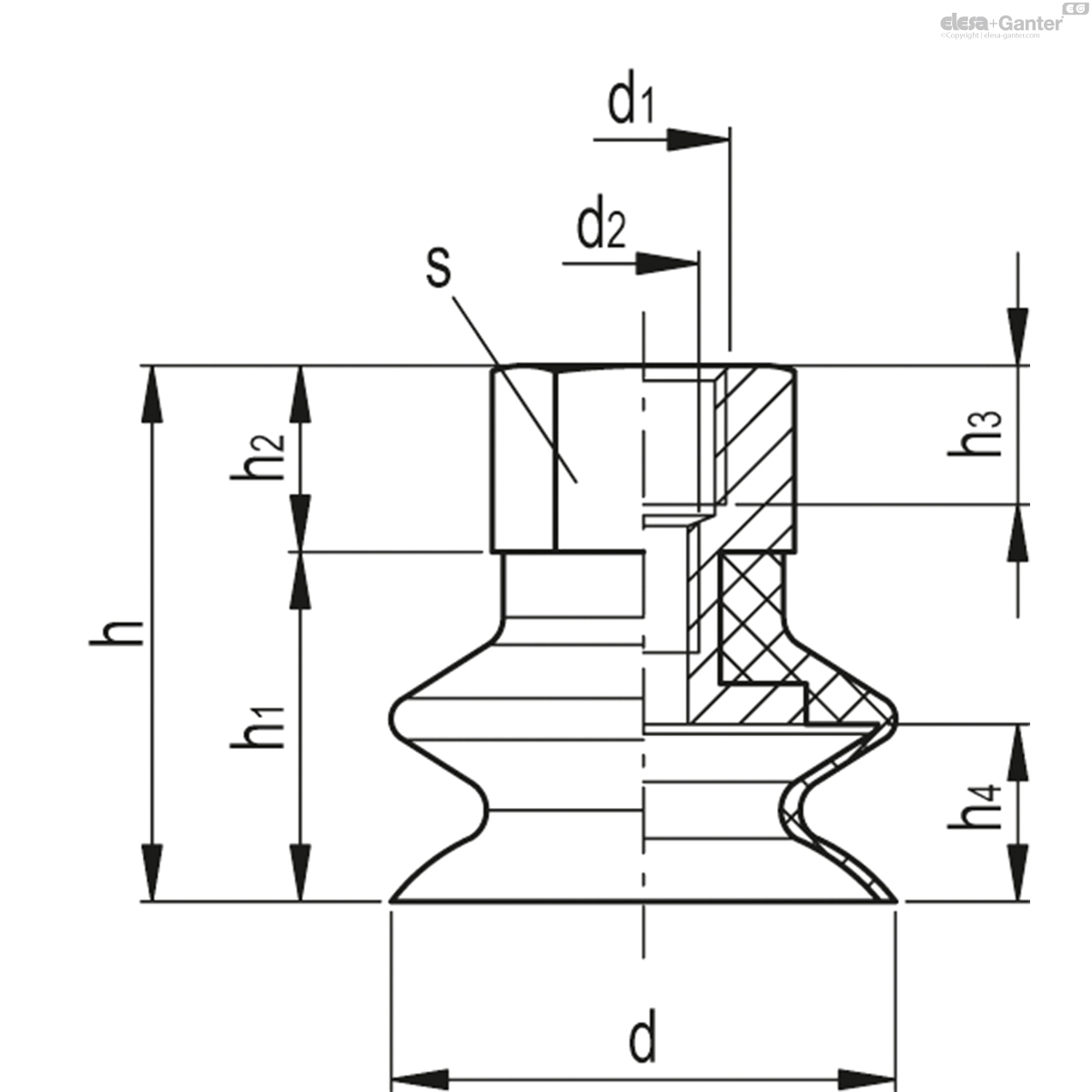

VVO-40-G1/4-T-N drawing
* The force of the vacuum cups indicated in the table represents 1/3 of the value of the theoretical force calculated at a vacuum level of -75 KPa and a safety coefficient of 3.# Indicates the internal geometric volume of the vacuum cup and represents th
video

Material

Vacuum cup in oil-proof rubber (NBR), natural (NR), or silicone (VMQ).

Support in anodised aluminium.

Standard executions

  • VVO-40-T-A: oil-proof rubber.
  • VVO-40-T-N: natural rubber.
  • VVO-40-T-S: silicone rubber.

Features and applications

They are specifically indicated for picking up thin sheet metal or glass sheets.

The vacuum cup has a vulcanised treatment which makes it more resistant to abrasion and above all to traction forces, as well as allowing the rubber to degrade less easily following wear and making it more resistant to aggressive environmental agents.

The bellows configuration makes the vacuum cup suitable for different surfaces, even irregular ones, with imperfect flatness or inclined, allowing its use in different applications including the handling of wooden panels (chipboard or pressed) or plastic laminates.

The effective stroke of the bellows is 12 mm.

See Technical Data for vacuum cups.
