7979-D-12-70-ST DIN 7979 Goujons

7979-D-12-70-ST

DIN 7979 Goujons

Acier, avec filetage femelle
  • Icons/__logo__RoHS__.png

Délai: 1-2 semaines Toutes les tailles et variantes de DIN 7979

🔒 Prix, stock en temps réel & téléchargements CAO

Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.

Se connecter Demander un compte

Caractéristiques techniques

Code
DIN 7979-D-12-70-ST
d1 m6
12
l1 js15
70
d2
M 6
d3
6.4
l2
3.8
l3
1.6
l4
1.2
r
10
t
12
60

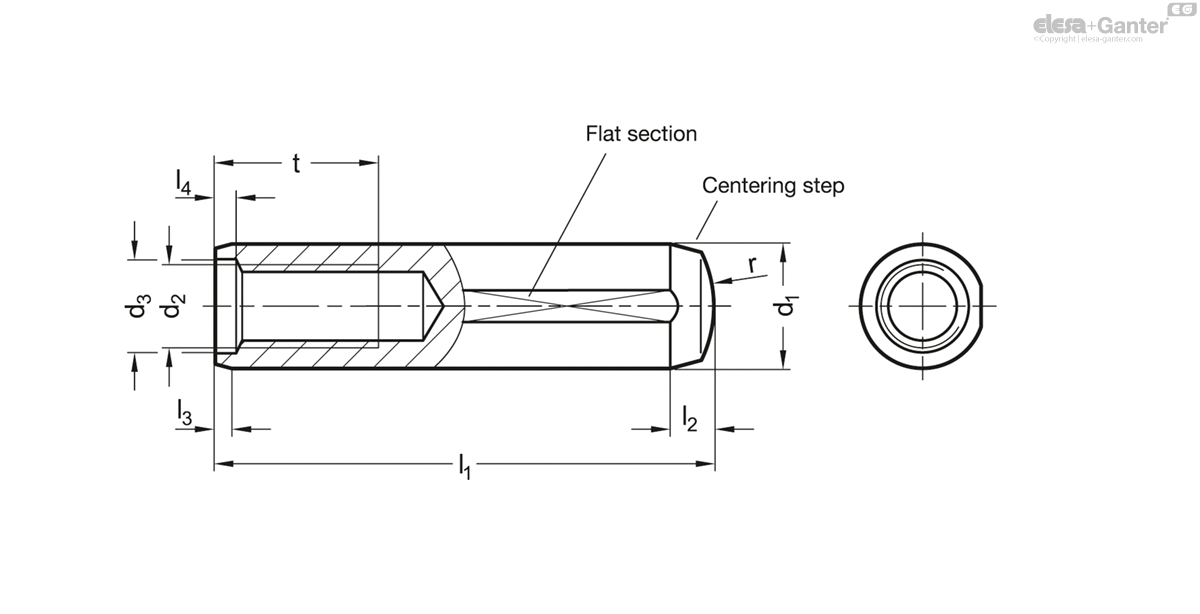

7979-D-12-70-ST drawing

Type

  • Type D: Hardened

Steel ST

  • Hardened (HRC 60 ±2)
  • Fit dimension d1 ground, plain finish

Dowel pins DIN 7979 connect, secure and position machine parts.

They are used in conjunction with blind holes. The centering step facilitates with pressing in the part. The flat section relieves trapped air, making them easier to insert and remove.

The dowel pin can be removed via the internal thread using a puller handle or slide hammer. The protective countersink d3 on the thread protects it from damage during installation.

The dimensions correspond to ISO 8735. In combination with a location hole H7 a transition fit can be achieved.
