VVG-15-45-G1/4-M-A VVG-A Caoutchouc résistant à l'huile

VVG-15-45-G1/4-M-A

VVG-A Caoutchouc résistant à l'huile

Avec support, caoutchouc
  • Icons/__logo__RoHS__.png

Délai: 1-2 semaines Toutes les tailles et variantes de VVG

🔒 Prix, stock en temps réel & téléchargements CAO

Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.

Se connecter Demander un compte

Caractéristiques techniques

Code
VV.51004
d1
G1/4
h
44.6
h1
18.6
h2
26
b
15
l
45
s
17
F*
[Kg]
1.5
Volume#
[cm3]
5
32

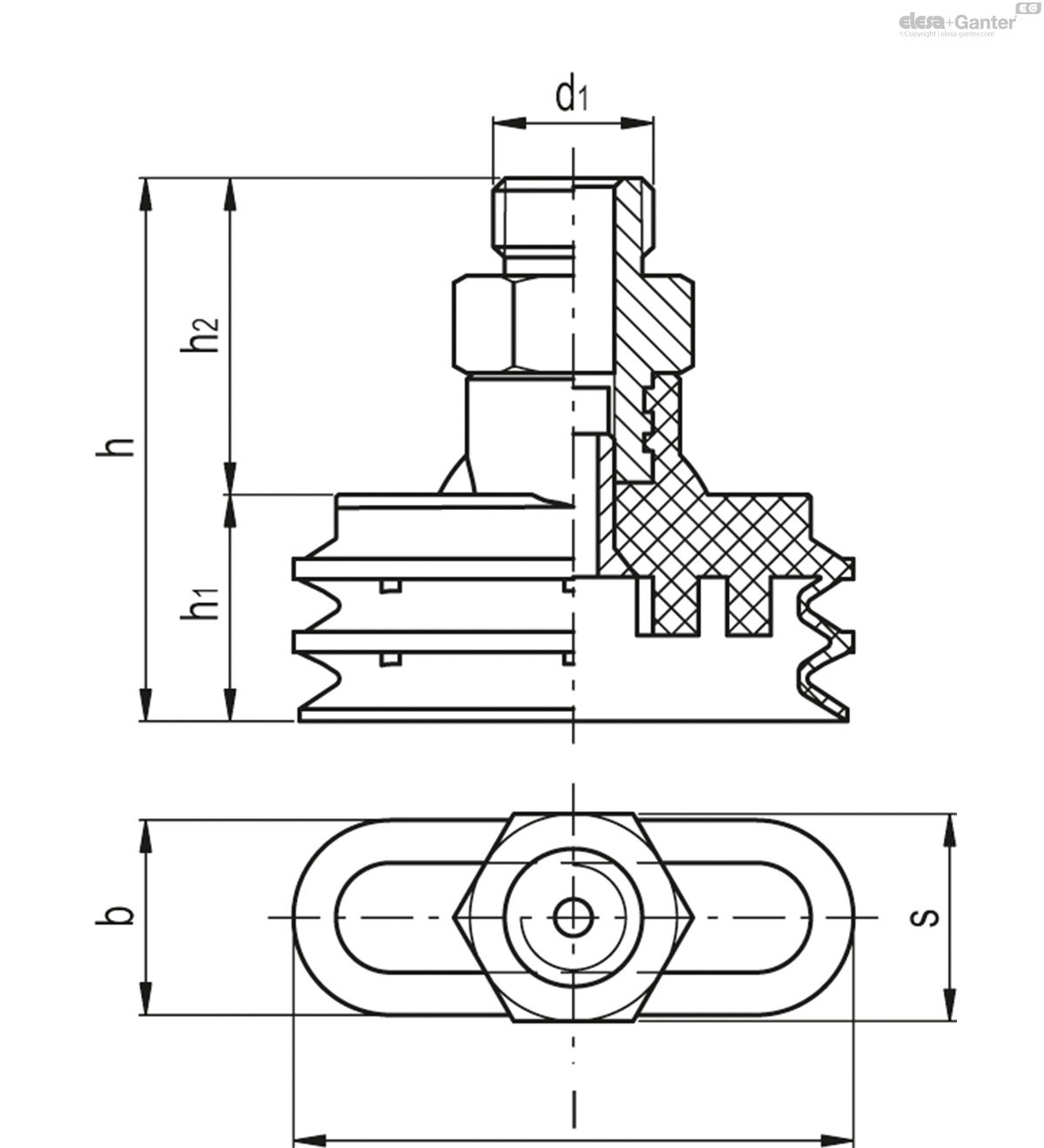

VVG-15-45-G1/4-M-A drawing
* The force of the vacuum cups indicated in the table represents 1/3 of the value of the theoretical force calculated at a vacuum level of -75 KPa and a safety coefficient of 3.# Indicates the internal geometric volume of the vacuum cup and represents th
video

Material

Vacuum cup in oil-proof rubber (NBR), natural (NR), or silicone (VMQ).

Aluminium support.

Standard executions

  • VVG-A: oil-proof rubber.
  • VVG-N: natural rubber.
  • VVG-S: silicone rubber.

Features and applications

The elliptical shape makes them suitable for gripping, handling, and clipping materials or products with elongated surfaces.

The bellows shape means that when in contact with the surface of the load the vacuum cup folds quickly on itself, lifting the load from the support surface.

They are used in many sectors including paper converting (for cardboard cases or boxes), ceramic sector (tiles or bricks) and with iron or stainless steel profiles or sheets.

See Technical Data for vacuum cups.
