VVA-17-N Caoutchouc naturel, sans support

VVA-17-N

Caoutchouc naturel, sans support

Diamètre 17mm, avec ou sans support, caoutchouc
Toutes les tailles et variantes
  • RoHS

Délai de livraison prévu 5-7 jours ouvrables

Prix, stock en temps réel & téléchargements CAO

Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.

Se connecter Demander un compte

Caractéristiques techniques

Code
VV.45004
d
17
d1
3.8
d2
9
h
11
h1
1
F*
[Kg]
0.6
Volume#
[mm3]
213
weight
1

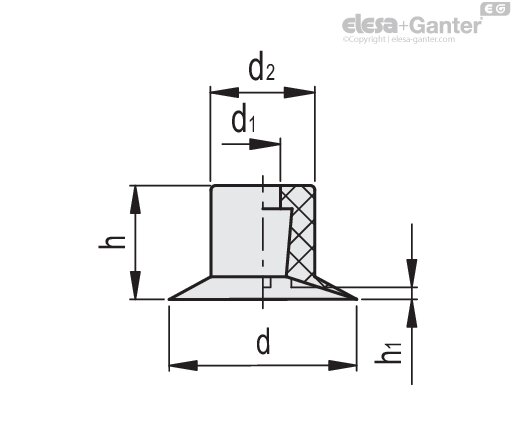

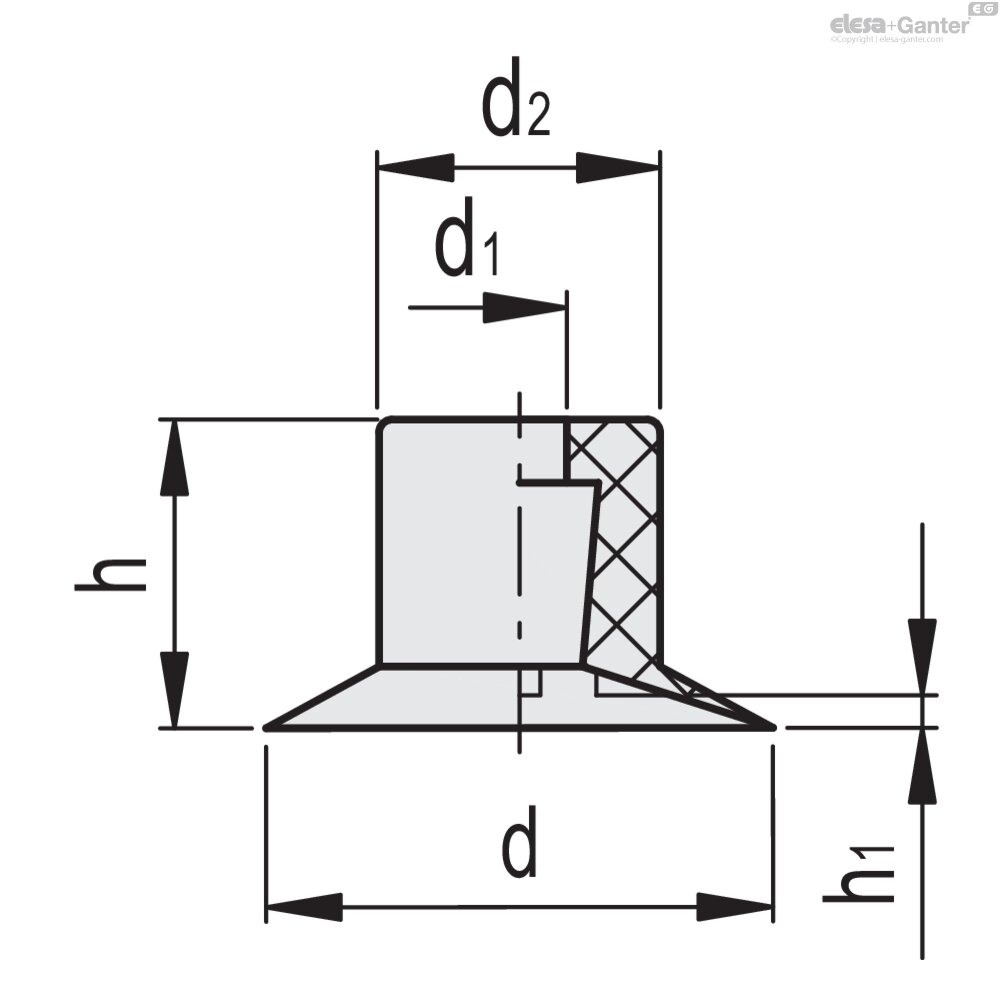

VVA-17-N drawing
* The force of the vacuum cups indicated in the table represents 1/3 of the value of the theoretical force calculated at a vacuum level of -75 KPa and a safety coefficient of 3.# Indicates the internal geometric volume of the vacuum cup and represents th
Video: VVA-17

Material

Vacuum cup in oil-proof rubber (NBR), natural (NR), or silicone (VMQ).

AVP nickel-plated bracket.

Standard executions

  • VVA-17-A: oil-proof rubber, without support.
  • VVA-17-N: natural rubber, without support.
  • VVA-17-S: silicone rubber, without support.
  • VVA-17-T-A: oil-proof rubber, with support.
  • VVA-17-T-N: natural rubber, with support.
  • VVA-17-T-S: silicone rubber, with support.

Applications

They are widely used in the paper converting sector, in particular for the handling of paper sheets and labels.

See Technical Data for vacuum cups .
