3492-16-M8-B-NI-GS

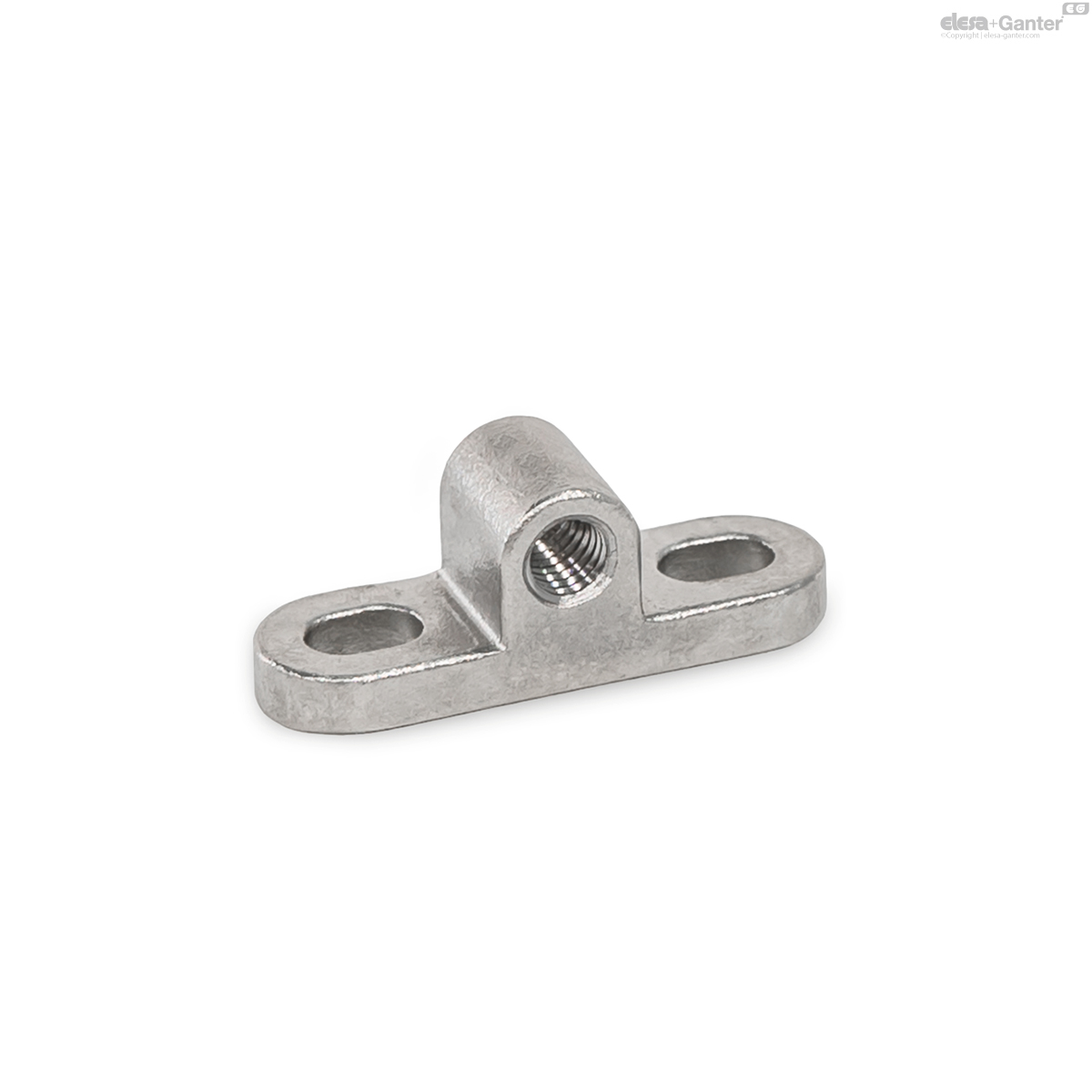

GN 3492 Support pour doigt d'indexage
Acier inoxydable
Délai: 1-2 semaines Toutes les tailles et variantes de GN 3492
🔒 Prix, stock en temps réel & téléchargements CAO
Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.
Se connecter Demander un compte

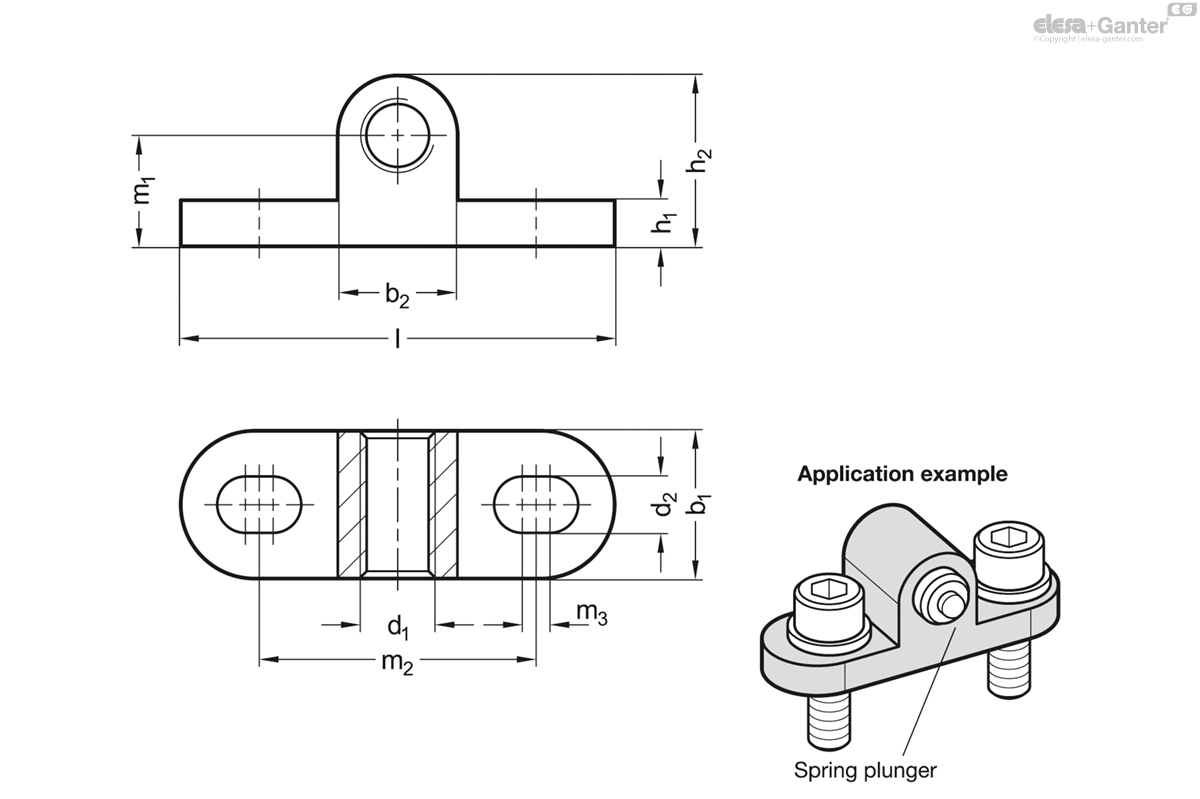

Fiche technique
Caractéristiques techniques
- Code
- GN 3492-16-M8-B-NI-GS
- b1
- 16
- d1
- M 8
- b2
- 13
- d2 For screw
- M 6
- h1
- 5
- h2
- 18.5
- Length l
- 47
- m1
- 12
- m2
- 30
- m3
- 3
- 35
Type
- Type B: Mounting on both sides
Stainless steel precision casting AISI CF-8 NI
Matte shot-blasted finish GS
Mounting blocks GN 3492 quickly and easily fasten standard parts with external thread, such as spring plungers or setting bolts, perpendicular to the mounting plane. The slotted holes and the locating thread allow for positioning of the mounting blocks in two directions.
To prevent unintentional adjustment, the standard part can be secured with a clamping thread lock, a lock nut or a grub screw.
