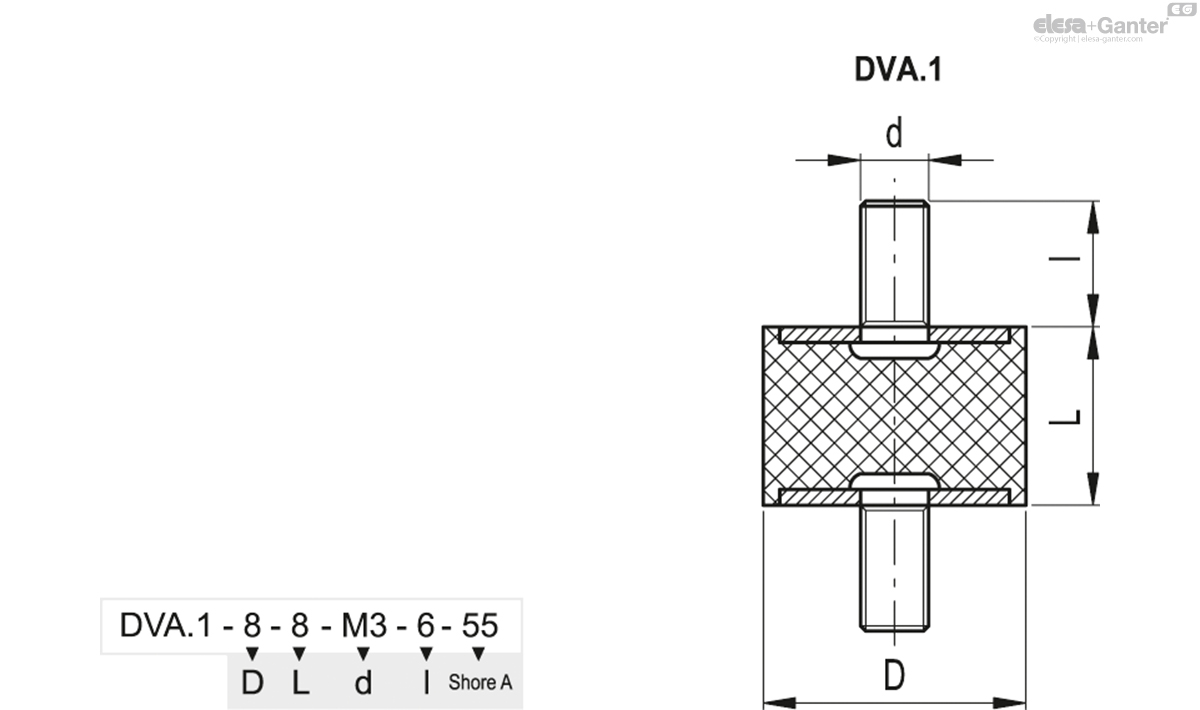

DVA.1-6-7-SST-M3-6-55
DVA.1-SST Plaque de base en acier inoxydable
Caoutchouc et acier ou acier inoxydable
Délai: 1-2 semaines Toutes les tailles et variantes de DVA.1
🔒 Prix, stock en temps réel & téléchargements CAO
Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.
Se connecter Demander un compte
Fiche technique
Caractéristiques techniques
- Code
- 409901
- D
- 6
- L
- 7
- d
- M3
- l
- 6
- Max. load
[N] - 42
- Max. deflection
[mm] - 2
- Stiffness
[N/mm] - 24
- 1
Standard executions
- DVA.1: threaded studs and base plate in polished zinc-plated steel, vibration-damper body in natural rubber NR, black colour, hardness 40, 55, 70 Shore A ±5.
- DVA.1-SST: threaded studs and base plate in INOX AISI 304 stainless steel, vibration-damper body in natural rubber NR, black colour, hardness 55 Shore A ±5.
Features and applications
The rubber buffers have been designed to damp vibrations, shocks and noises produced by moving bodies or non-balanced vibrating masses of equipment and machines which can cause:
- malfunctioning and reduction of the machine lifespan and/or of the adjacent ones;
- damage to health;
- noise.
Load diagrams for each single code are available on request.
Special executions on request
Natural rubber NR, hardness 40, 70 tolerance ±5 Shore A for executions with AISI 304 stainless steel base.
