CV-T-500 CV-T Sans anneaux et sans plaques

CV-T-500

CV-T Sans anneaux et sans plaques

Polyéthylène et acier inoxydable
  • INOX
  • RoHS
  • g6030
  • HMWPE

Délai: 1-2 semaines Toutes les tailles et variantes de CV-T

🔒 Prix, stock en temps réel & téléchargements CAO

Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.

Se connecter Demander un compte

Caractéristiques techniques

Code
76950
l
500
Max. static load
[N]
300
6

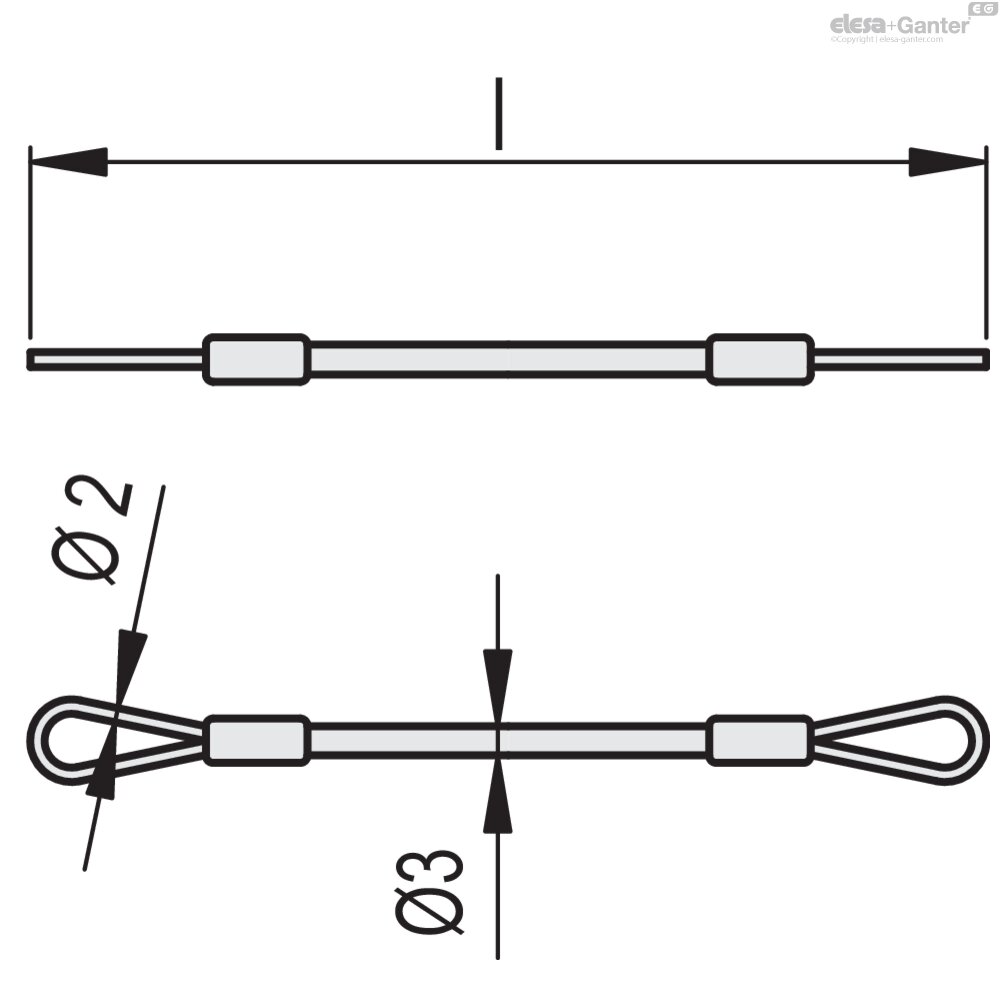

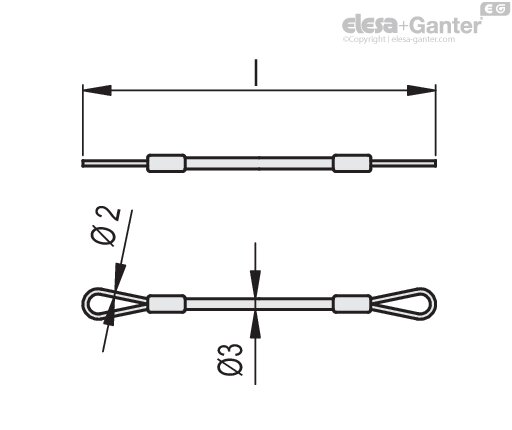

CV-T-500 drawing
CV-T-500 drawing

Cable

High-modulus polyethylene (HMWPE), black.

Standard executions

AISI 304 stainless steel fixing plate.

NERINOX treated stainless steel ring with two coils.

  • CV-T-2A: cable with two clamping rings.
  • CV-T-A-P: cable with one ring and one clamping plate.
  • CV-T-2P: cable with two clamping plates.
  • CV-T: cable without rings and without plates.
  • CV-T-P: cable without rings and with one plates.

Features and applications

CV-T cables are light yet remarkably tough.

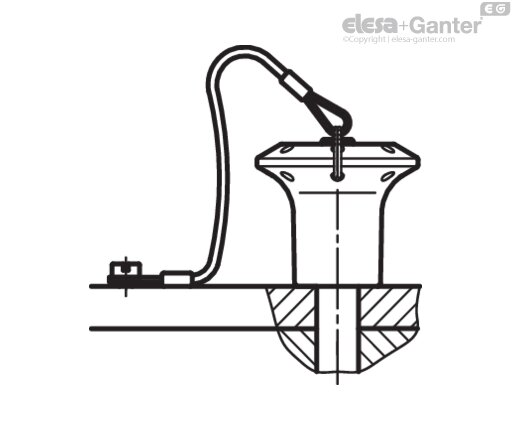

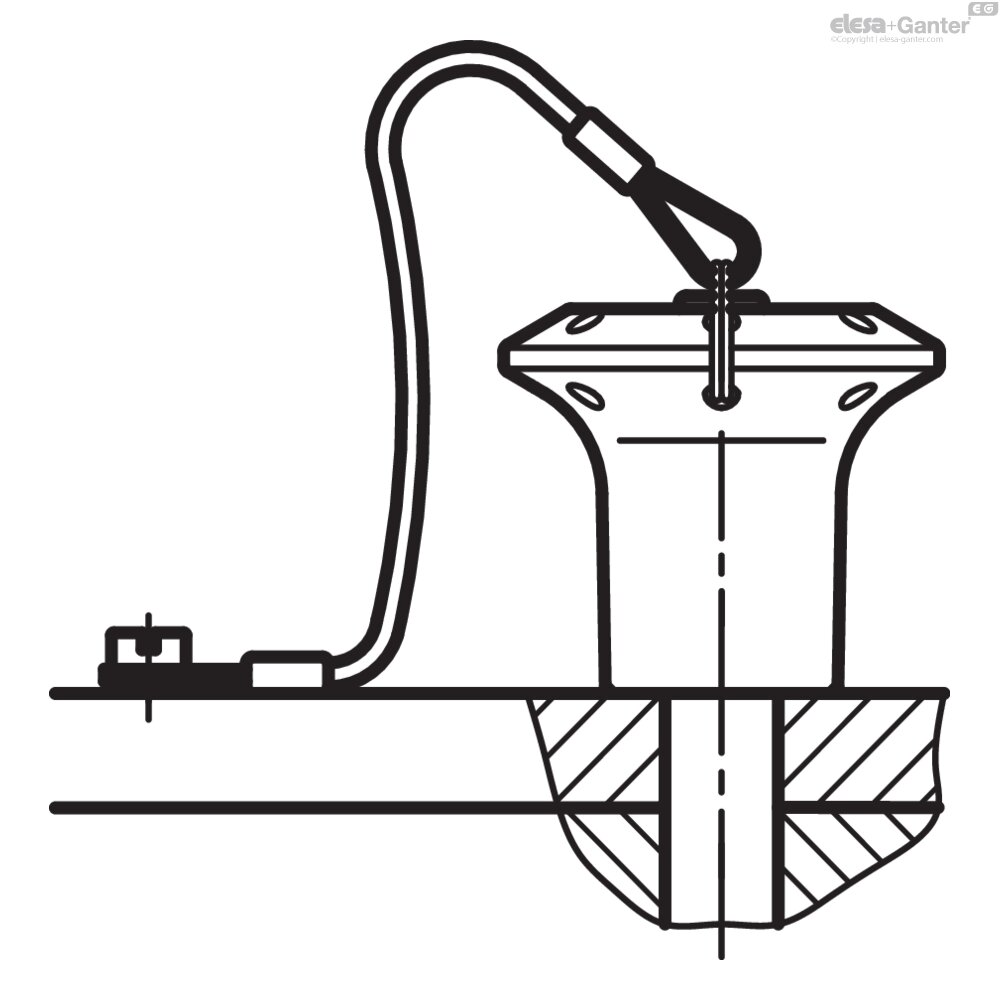

They are mainly used in combination with the different types of self-locking pins or in cases where you want to make small components or tools unmissable so that they are always available and at hand.

In particular, they can be used in place of the CT-S ball chain, when a particular tear resistance is required.
