124.3-10-30-E
GN 124.3 Broches de centrage à verrouillage axial inoxydable
Délai: 1-2 semaines Toutes les tailles et variantes de GN 124.3
🔒 Prix, stock en temps réel & téléchargements CAO
Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.
Se connecter Demander un compte
Fiche technique

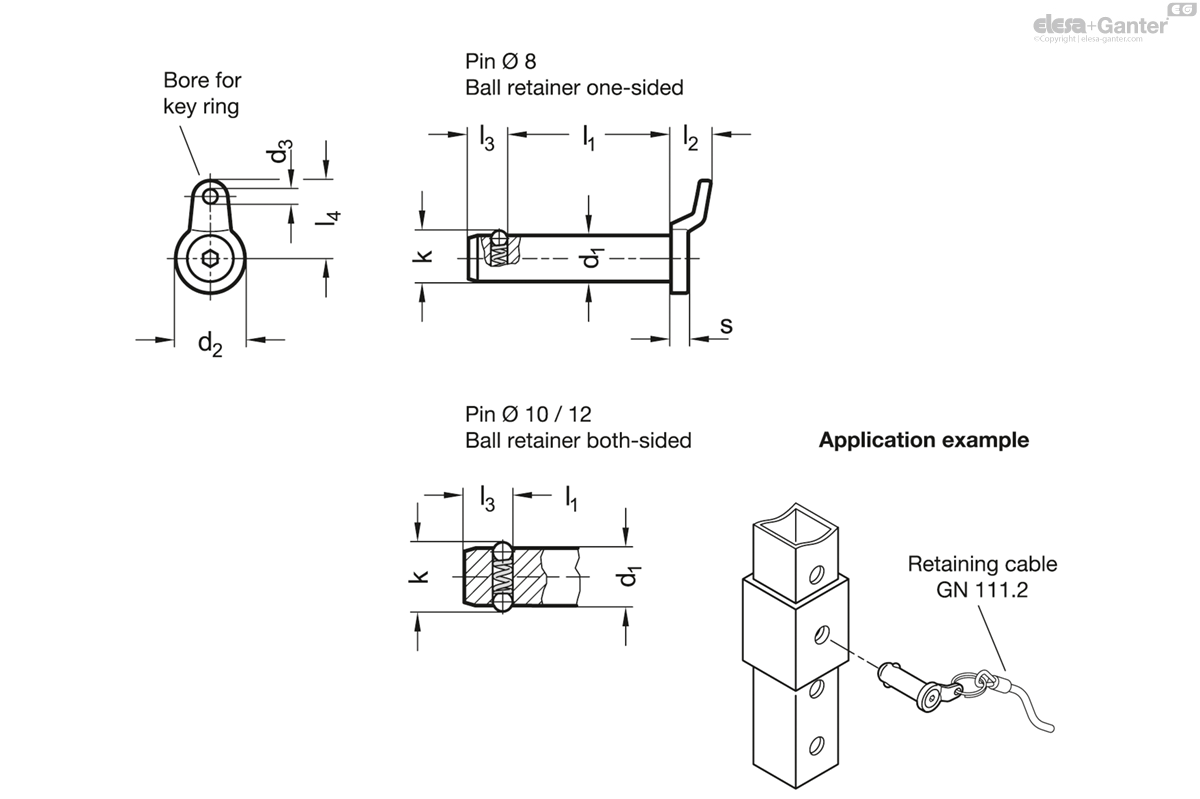

Caractéristiques techniques
- Code
- GN 124.3-10-30-E
- d1 -0.04/-0.08
- 10
- l1
- 30
- d2
- 15
- d3
- 2.5
- k
- 12
- l2
- 7
- l3
- 8.7
- l4
- 15
- s
- 3
- Location bore
- 10
- Axial holding force in
N≈ - 30
- Load capacity F in kN≈
double sided shearing resistance acc.
DIN 50141
(breaking strength) - 62
- 31
Type
- Type E: With eyelet washer
Pin
Stainless steel AISI 303
Washer
Stainless steel AISI 316LHC
Metal injection molded
Ball
Stainless steel AISI 420C
Compression spring
Stainless steel AISI 631
Stainless steel locking pins GN 124.3 are used for quick fixing, connecting and locking of various jig and fixture systems.
The locking balls are held in position by a compression spring and are therefore not rigidly locked. The pins can be quickly and easily inserted and removed from the locating hole.
The technical annex contains the load ratings for the double shear strength (breaking strength).
