1050.1-2-M10-A-ST
GN 1050.1 Goujons
En stock Toutes les tailles et variantes de GN 1050.1
🔒 Prix, stock en temps réel & téléchargements CAO
Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.
Se connecter Demander un compte

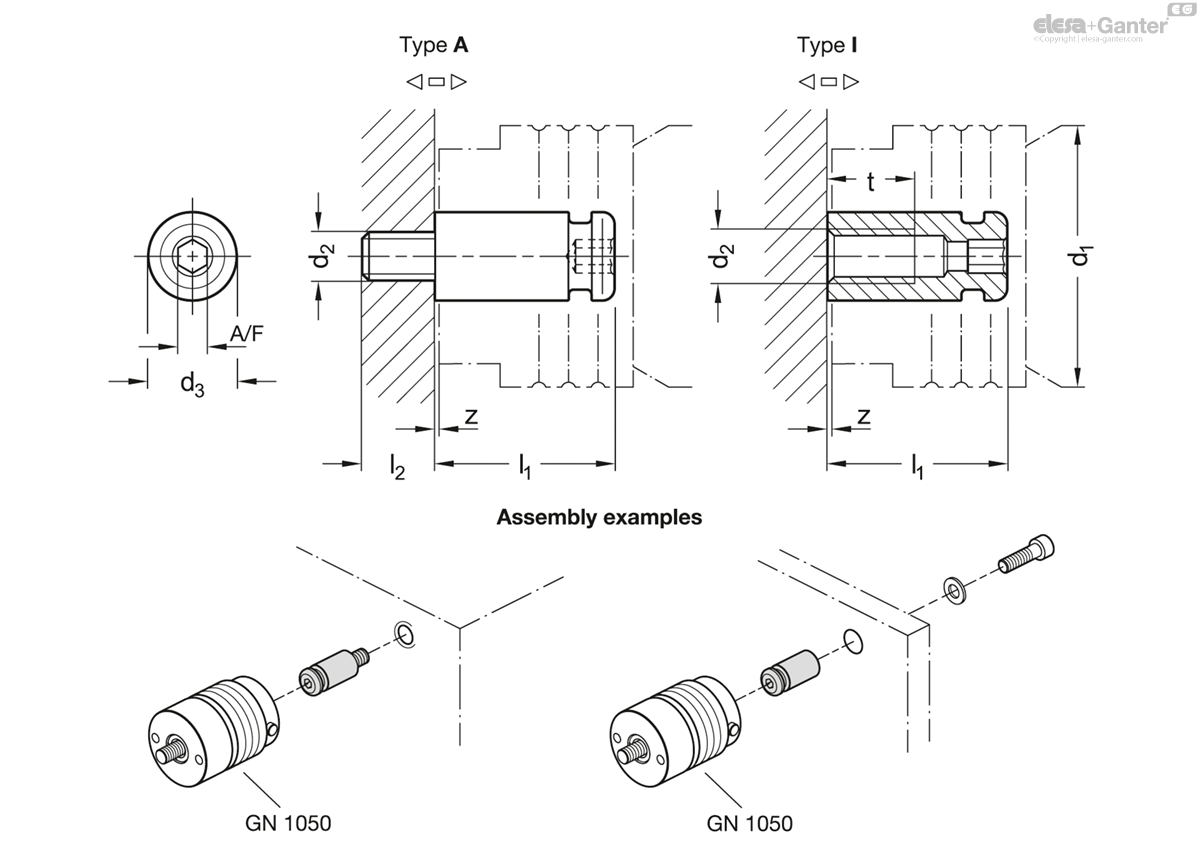

Fiche technique
Caractéristiques techniques
- Code
- GN 1050.1-2-M10-A-ST
- Nominal size
Quick release Coupling
GN 1050 - 2
- d2
- M 10
- d1
- 53
- d3 ±0.03
- 18.25
- l1
- 37.1
- l2
- 15
- A/F
- 6
- z ±0.1 Axial offset
- 0.4
- 80
Types
- Type A: With threaded stud
- Type I: With internal thread
Steel ST
- Tempered
- Zinc plated, blue passivated
Studs GN 1050.1 position and attach components without tools using quick release couplings GN 1050 for a tight and repeatable fit. The dimensions and material properties of the studs have been precisely adapted to the couplings to ensure proper functionality.

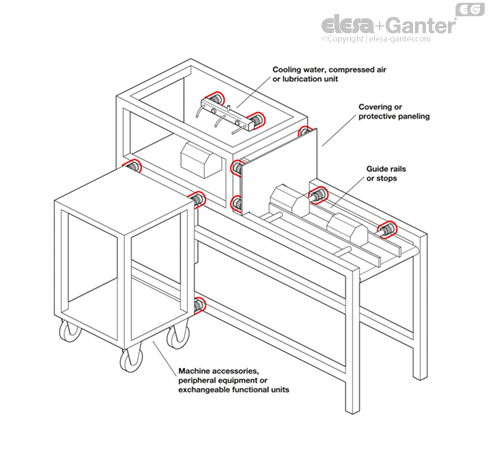

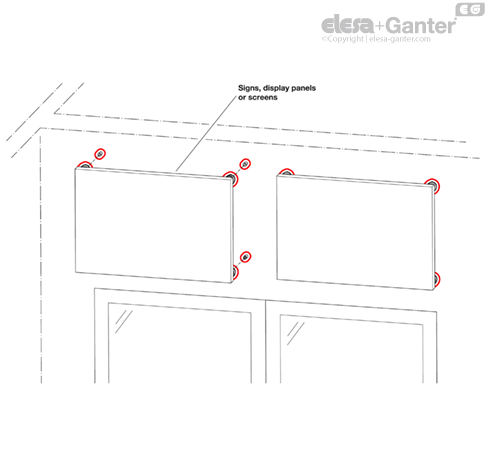

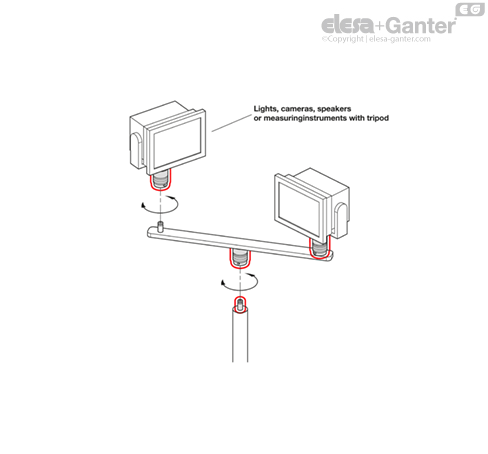

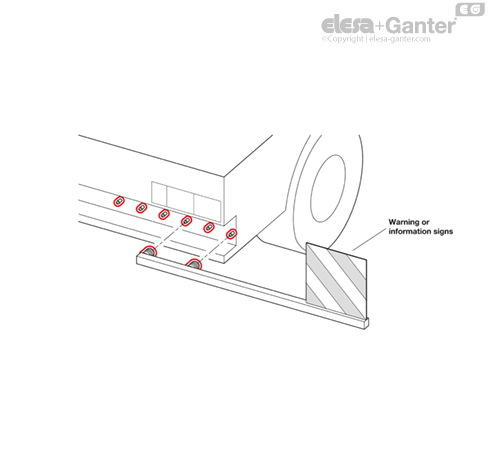

The studs can be purchased individually so that multiple studs can be paired with a coupling in alternation, such as to efficiently position fixtures in different locations depending on the workpiece. The studs are fastened with threaded stud or internal thread, depending on the type.
To achieve the indicated load capacities, threaded holes on the application or inserted nuts and screws must meet at least property class 8.

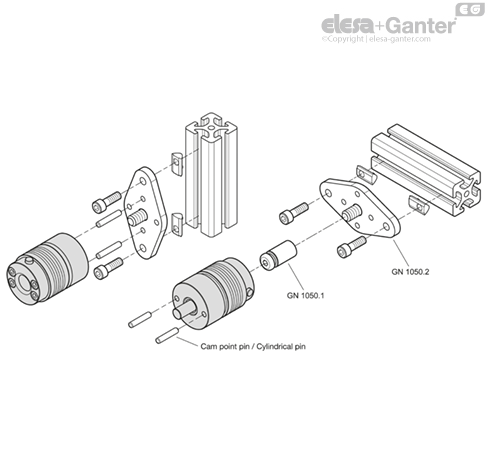

Flanges GN 1050.2 are available as an accessory for mounting the studs and provide additional attachment options.

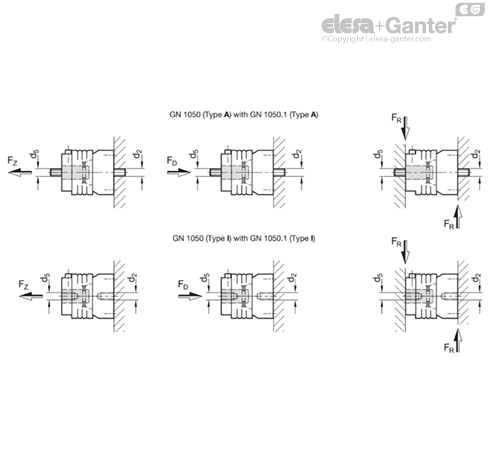

| Nominal Size | d2 Mounting thread Quick release couplings | d5 Mounting thread Studs GN 1050.1 | FZ Max. tensile load in kN | FD Max. compressive load in kN | FRMax. shear load in kN |
| 2N | M 10 | M 10 | 25 | 25 | 19 |
| 2N | M 10 | M 12 | 25 | 25 | 19 |
| 2N | M 12 | M 10 | 25 | 25 | 19 |
| 2N | M 12 | M 12 | 35 | 35 | 28 |
Safety instructions:
The load capacities can only be achieved if the surrounding structure is capable of supporting these loads.
Any threaded holes on the application or inserted nuts and screws require at least property class 8.
Depending on the application, additional safety factors should be added.
