7430-M20X1,5-MS
GN 7430-MS Laiton
Délai: 1-2 semaines Toutes les tailles et variantes de GN 7430
🔒 Prix, stock en temps réel & téléchargements CAO
Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.
Se connecter Demander un compte
Fiche technique
Caractéristiques techniques
- Code
- GN 7430-M20x1,5-MS
- d1
- M 20 x 1.5
- b
- 4
- d2 +0.3
- 20
- e ≈
- 26
- s
- 24
- 7
Brass MS
Plain
Stainless steel AISI 316L A4
Plain

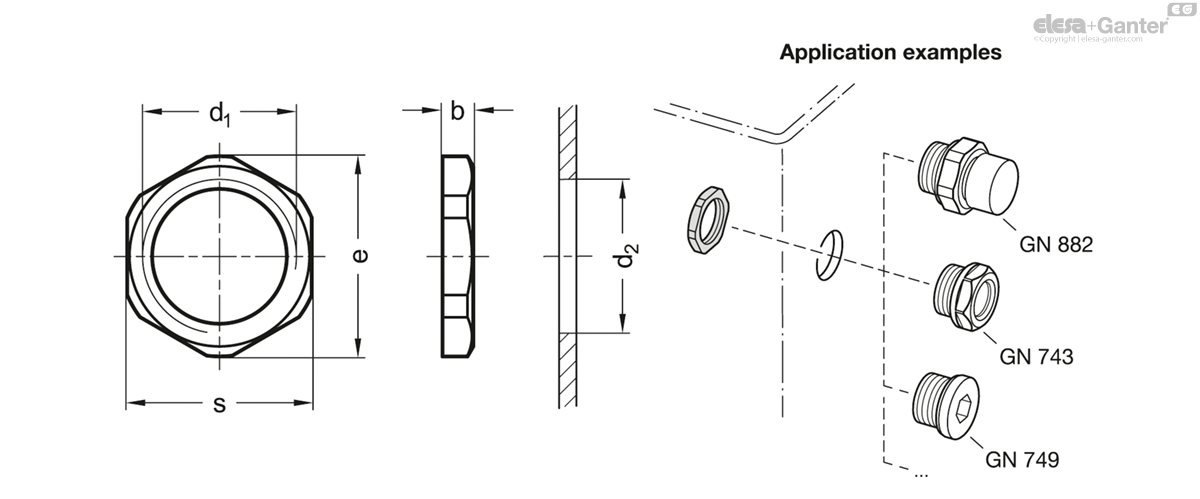

Mounting nuts GN 7430 are used, for example, to fasten breather elements, oil level sight glasses or threaded plugs when the wall is too thin for inserting a thread or this is to be avoided for manufacturing simplification.
The sufficiently large hexagonal profile is chamfered on one side only, which increases the bearing surface and the thread length.
The stainless steel versions can be secured inside the housing by spot welds to facilitate assembly, they are generally suitable for applications with aggressive environmental conditions.
