417-6-A-NI
GN 417-A Avec anneau de levage
Délai: 1-2 semaines Toutes les tailles et variantes de GN 417
🔒 Prix, stock en temps réel & téléchargements CAO
Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.
Se connecter Demander un compte
Fiche technique

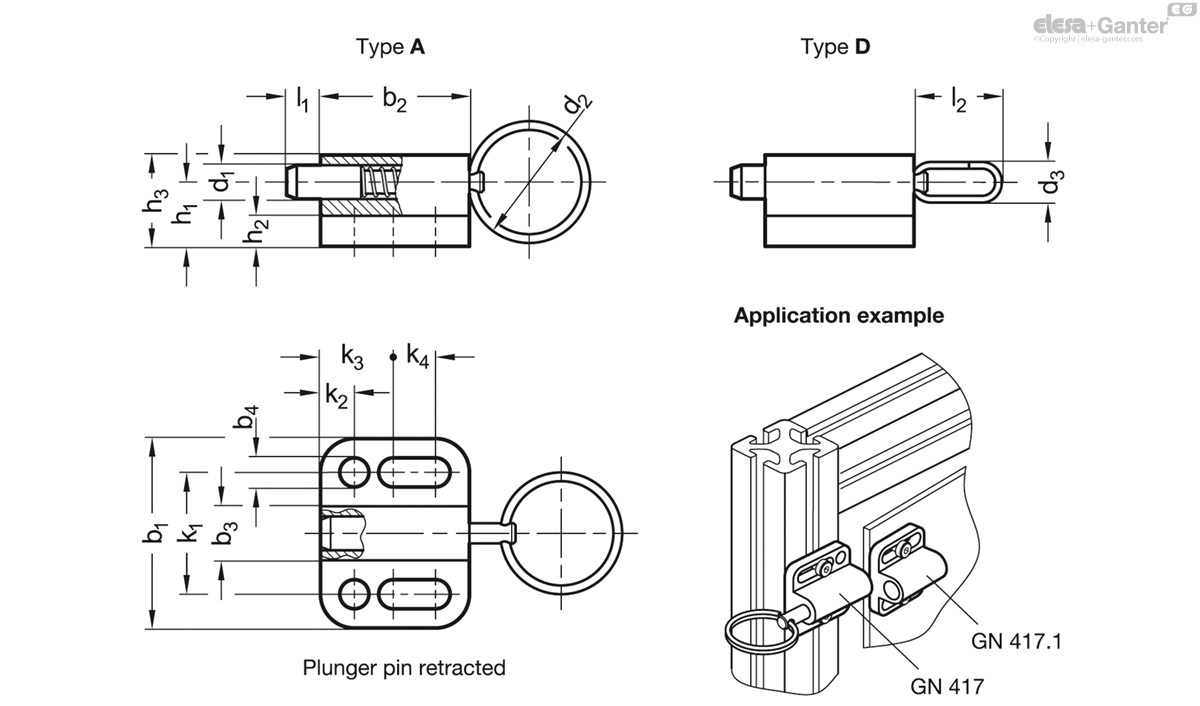

Caractéristiques techniques
- Code
- GN 417-6-A-NI
- d1
Bore
+0.03/+0.08 Pin h11 - 6
- b1
- 32
- b2
- 27.5
- b3
- 10
- b4 -0.2
- 5.4
- d2
- 24
- d3
- 9.5
- h1
- 10.5
- h2
- 5
- h3
- 15.5
- k1 ±0.05
- 21
- k2
- 5.5
- k3
- 12
- k4
- 10
- l1
- 6
- l2
- 21
- Spring load
in N≈ initial - 5
- Spring load
in N≈ end - 21
- 41
Types
- Type A: With lifting ring
- Type D: With wire loop
- Type B: Without rest position, with knob
- Type C: With rest position, with knob
Guide
- Zinc die casting
Powder coated
Black, textured finish
- Stainless steel precision casting NI
AISI CF-8
Plain, matte shot-blasted
Plunger pin
Stainless steel AISI 303
Pressure spring
Stainless steel AISI 301
Lifting ring / wire loop
Stainless steel AISI 301
Knob
Plastic (Polyamide PA)
- Black, matte finish
- Not removable
Indexing plungers GN 417 with flange are mounted parallel to the plungers and are characterized by an especially low height. The mounting hole pattern with slots offers generous adjustment options, such as for the use of aluminum sections. The use of washers makes it easier to mount the parts using the slots.
Indexing plungers with rest position (type C) are used for such applications where the plunger has to stay in its retracted position. After pulling out, the knob is turned by 90°Indexing. A notch keeps the plunger in this position.
Type D has a reinforced wire loop, making it especially suited for remote actuation, e.g. by Bowden cable.
The stainless steel versions allow the indexing plungers to be used in more aggressive environments.
