761-200-G-NI GN 761-NI Acier inoxydable

761-200-G-NI

GN 761-NI Acier inoxydable

Acier / Acier inoxydable, sans mécanisme de verrouillage
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png
  • Icons/__logo__SPEEDYBLOCK__.png

Délai: 1-2 semaines Toutes les tailles et variantes de GN 761

🔒 Prix, stock en temps réel & téléchargements CAO

Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.

Se connecter Demander un compte

Caractéristiques techniques

Code
GN 761-200-G-NI
Size
200
FH in N
2000
a
10
b1
65
b2
27.5
b3
32
b4
42
d1
6
d2
M 6
d3
5.2
h1
25
h2
16.4
l1
155.5
l2 min.
28
l3 min.
44
l4
8
l5
10
l6
25
m1
24.5
m2
15
m3
24
r ≈ for w2 = 0
64
s
2
w1 Stroke
14
w2 Adjustable range
11
142

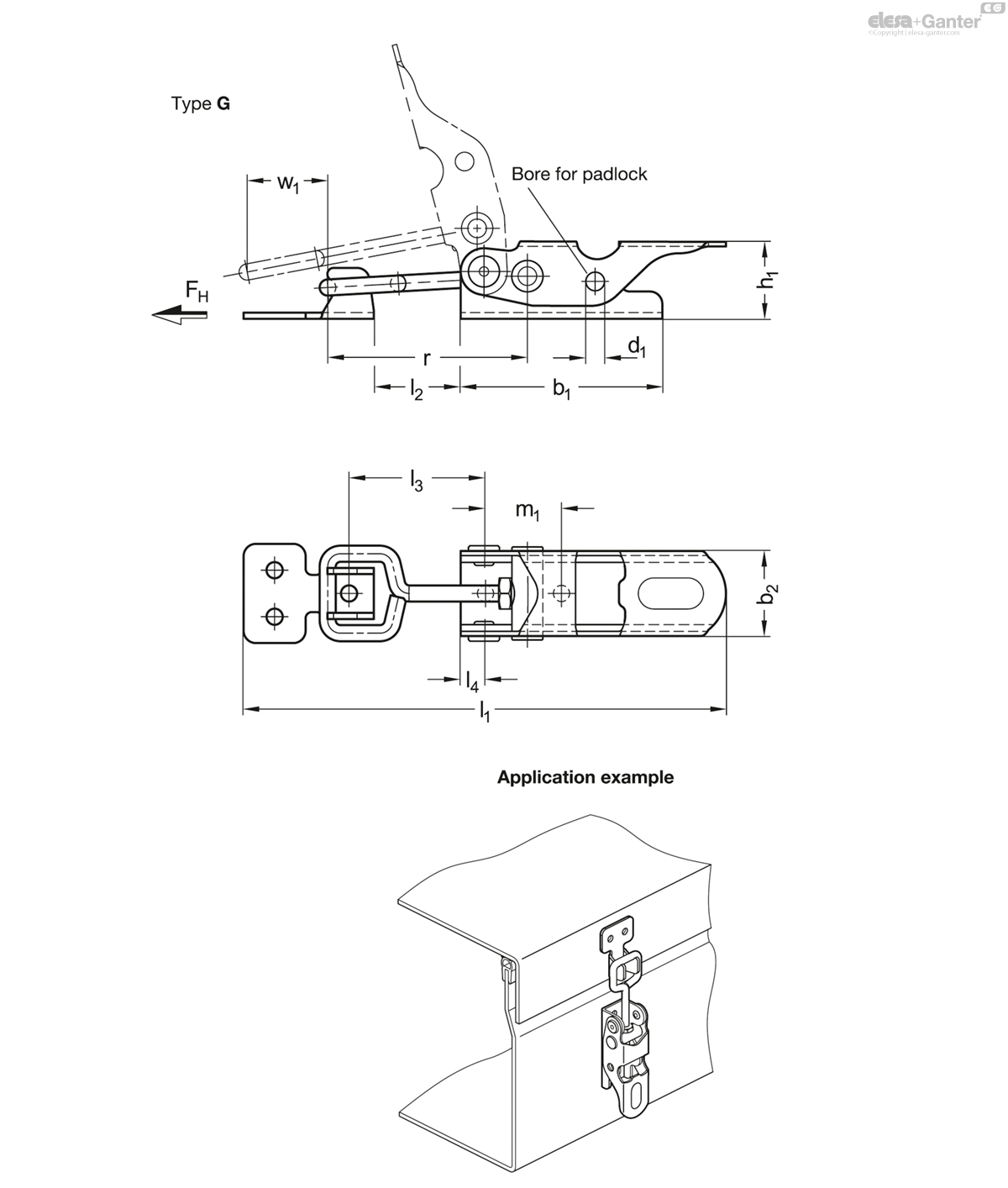

761-200-G-NI drawing

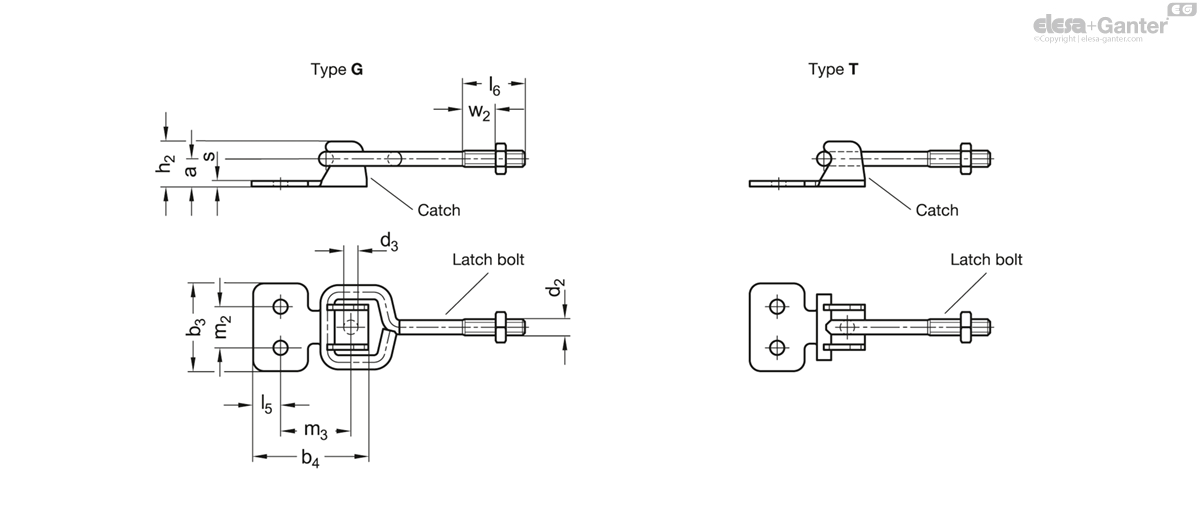

761-200-G-NI drawing

Types

  • Type G: Latch bolt with loop, with catch
  • Type T: Latch bolt with T-head, with catch

Version in Steel ST

Steel, zinc plated, blue passivated

Version in Stainless Steel NI

Stainless Steel AISI 304

Toggle latches GN 761 are especially suited for rapid closing and fastening of covers, container lids and boxes.

When the lever is closed, the eccentric configuration of the rod shaft causes the latch bolt to move towards the catch. At the end of the lever movement, the rod shaft has exceeded the eccentric dead center point, thereby automatically keeping the toggle latch closed.

The latch bolts of the toggle latches can be adjusted within the adjustable range w2. The catch is included.
