70.2-NBR-25-SW
GN 70.2 Embouts en caoutchouc
Délai: 1-2 semaines Toutes les tailles et variantes de GN 70.2
🔒 Prix, stock en temps réel & téléchargements CAO
Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.
Se connecter Demander un compte
Fiche technique
Caractéristiques techniques
- Code
- GN 70.2-NBR-25-SW
- d1
- 25
- d2
- 26
- h
- 5
- s
- 0.5
- 1
Rubber
Acrylonitrile butadiene rubber NBR
- Black SW
- 75±10 Shore A
- Temperature resistant -30 °C up to 100 °C

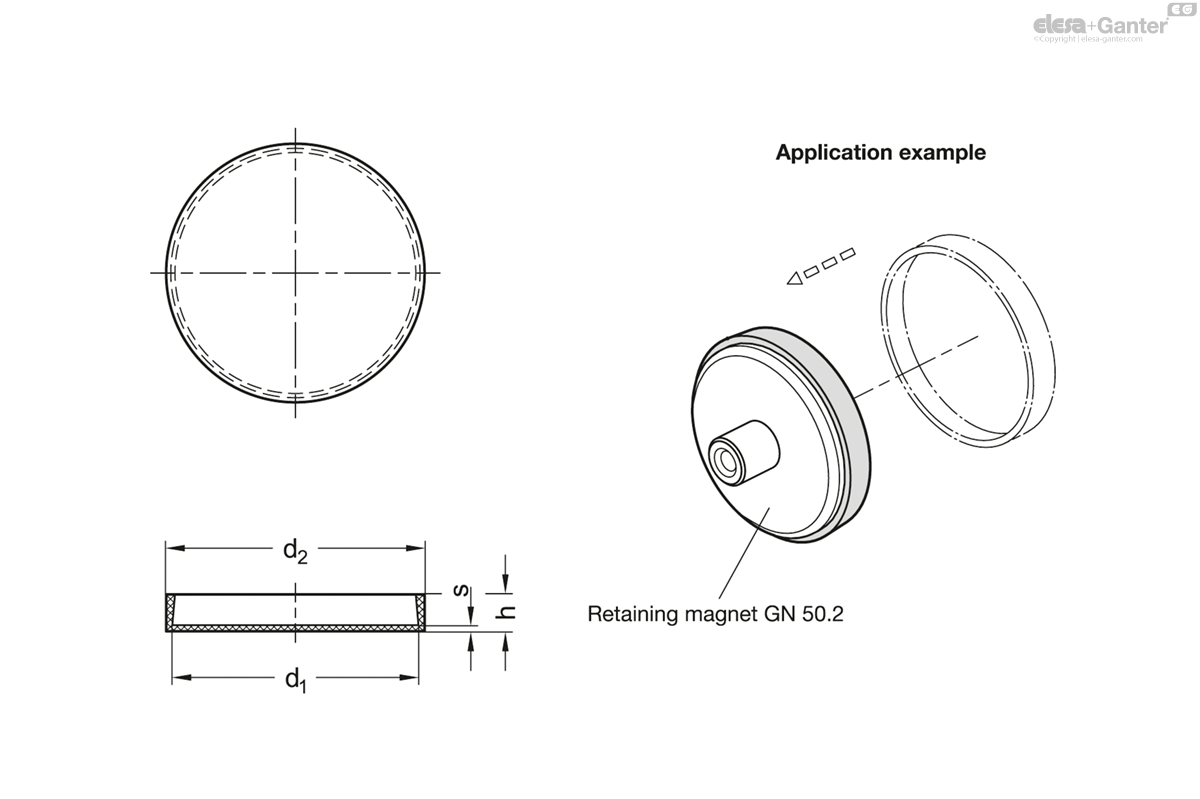

Rubber caps GN 70.2 can be used with all non-rubberized retaining magnets. The inner diameter values d1 are matched to the respective outer diameters of the magnets. The specified nominal magnetic forces of the magnets are reduced due to the 0.5 mm wall thickness of the caps.
Rubber caps protect surfaces from being damaged by the magnet. They also prevent hard, loud contacts, and the increased friction reduces sideways slippage.
The rubber caps are easily affixed to the magnet by hand and can be removed again, if necessary.
