37-160-M36X2-110-B GN 37-B avec support en caoutchouc
Délai: 1-2 semaines
Prix, stock en temps réel & téléchargements CAO
Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.
Se connecter Demander un compte
Fiche technique
Caractéristiques techniques
- Code
- GN 37-160-M36x2-110-B
- d1
- 160
- d2
- M 36 x 2
- l1
- 110
- d3 H13
- 17.5
- l2 ≈
- 45
- l3
- 27
- s
- 6
- A/F 1
- 30
- A/F 2
- 30
- Static load F
in kN - 70
- 2620

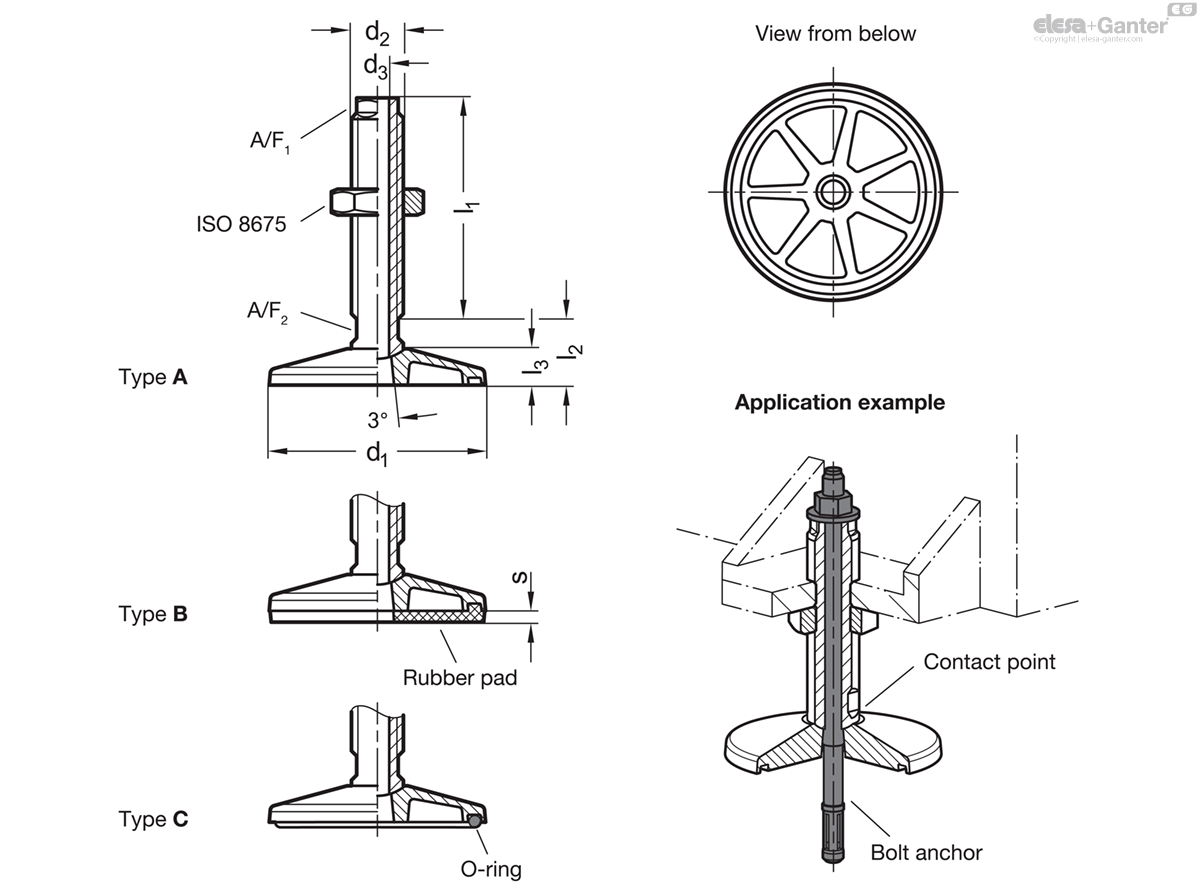

Types (Foot plate)
- Type A: without rubber underlay
- Type B: with rubber underlay
- Type C: with O-ring
Foot plate
Steel, plastic coated
black, RAL 9005, textured finish
Threaded studs / Hexagon nut ISO 8675
Steel, zinc plated, blue passivated
Rubber underlay, inlaid
black, NBR
85±5 Shore A
O-ring, inlaid
black, NBR
≈ 70 Shore A
Machine feet GN 37 are characterized by their solid construction and large variety. They are used especially on large and heavy systems and machines. The through-hole allows the machine feet to be attached centrally to the ground, making them ideal for compressive and tensile loads.
Foot plates and threaded studs are not connected together, during setup they are automatically centered by the radius at the contact point.
Type B with rubber underlay prevents slipping to the side, protects delicate surfaces and dampens vibrations and tremors. Type C with O-ring provides a seal over the ground to prevent the build-up of dirt under the foot. When used in conjunction with a collection pan, lubricants for example cannot escape to reach the underlying surface.
