369.5-100-B12-N
GN 369.5-N avec serrure
Délai: 1-2 semaines Toutes les tailles et variantes de GN 369.5
🔒 Prix, stock en temps réel & téléchargements CAO
Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.
Se connecter Demander un compte
Fiche technique

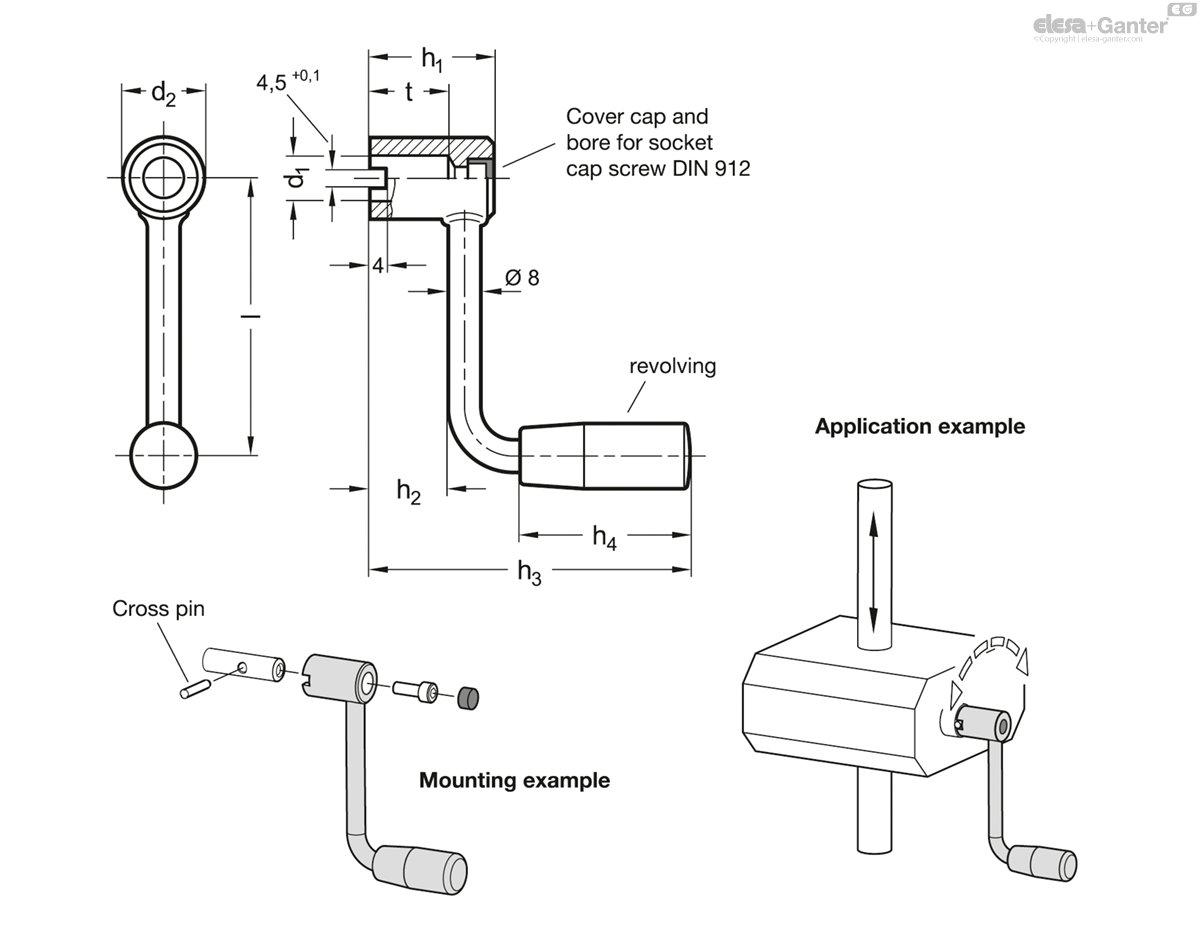

Caractéristiques techniques
- Code
- GN 369.5-100-B12-N
- l ≈
- 100
- d1 H9
- B 12
- d2
- 20
- h1
- 30
- h2 ≈
- 20
- h3 ≈
- 88
- h4 ≈
- 50
- t +0.5
- 20
- Ø Handle
- 21
- For screws
DIN 912 - M 6
- 118
Types
- Type A: without slot
- Type N: with slot
Stainless Steel AISI 304
- shot-blasted
- Crank butt-welded
Cover cap
Plastic, black
Revolving handle
- Plastic, Duroplast, black, shiny finish
- temperature resistant up to 110 °C

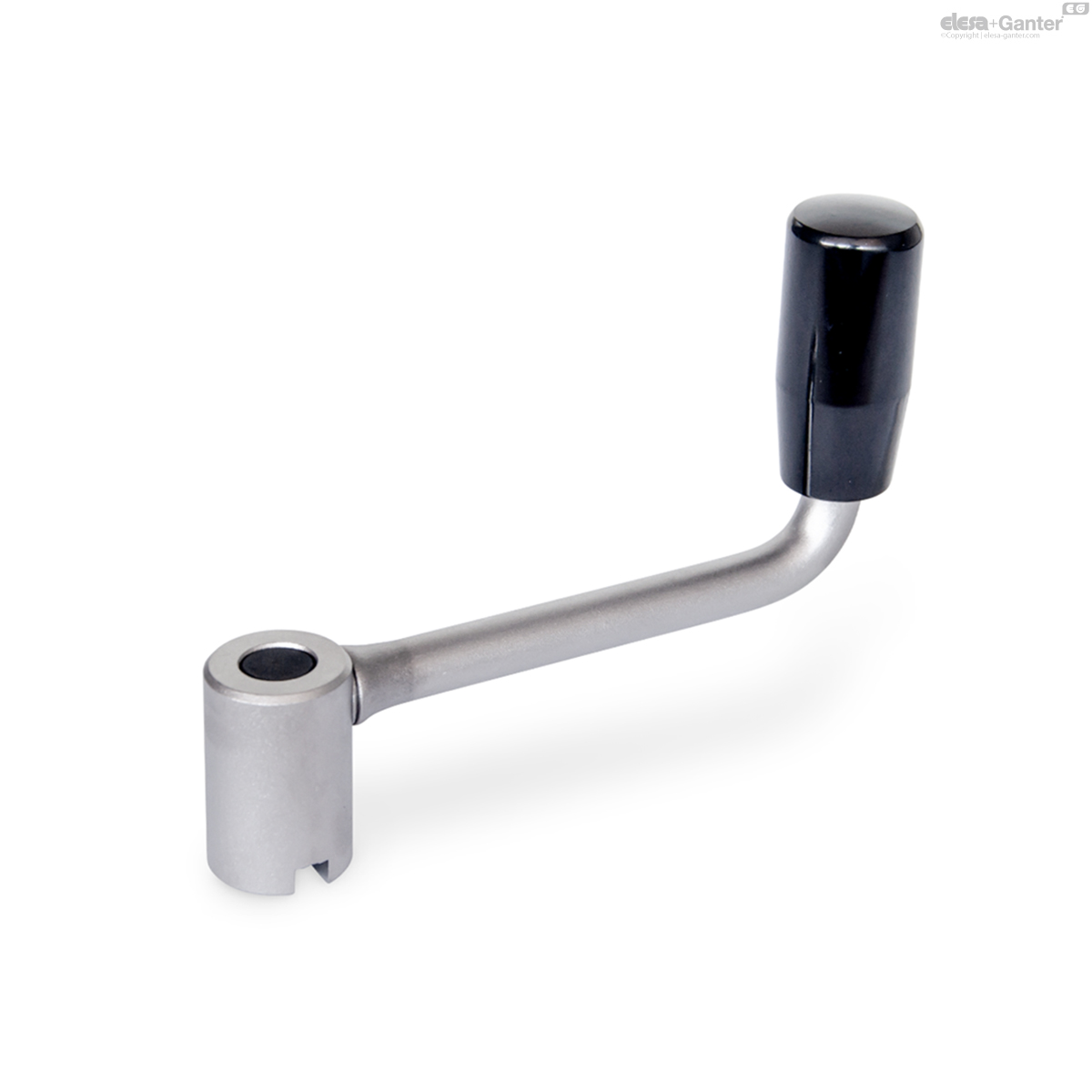

Stainless Steel-Cranks GN 369.5 feature a compact design and are used for light drive and positioning tasks. Thanks to the material used, the cranks are also suitable for more aggressive environments.
The slot of type N easily transfers the rotary movement to the shaft by means of a transverse pin mounted in the shaft. The crank can be connected removably or permanently fastened axially with a socket head cap screw DIN 912. Type A can be ordered with transverse holes for GN 110.
Thanks to a simple manufacturing process, it is relatively easy and inexpensive to produce these cranks as special designs.
