GN 113.12 Broches à billes en inox
Délai: 1-2 semaines Toutes les tailles et variantes de GN 113.12
🔒 Prix, stock en temps réel & téléchargements CAO
Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.
Se connecter Demander un compte
Fiche technique
Caractéristiques techniques
- Code
- GN 113.12-10-15
- d1 -0.04/-0.08
- 10
- l1 +0.6
- 15
- d2
- 12
- d3
- 23
- d4
- 18
- l2 ±1
- 9.6
- l3
- 34
- l4
- 43.5
- Location
bore H11 - 10
- Load capacity F in kN≈
double sided shearing resistance acc.
DIN 50141
(breaking strength) - 100
- 43
Pin
Stainless Steel AISI 630
precipitation-hardened
L-Handle
Plastic (Polyamide PA), black
temperature resistant up to 80 °C
Balls
Stainless Steel AISI 420C
Spring
Stainless Steel, German Material No. 14565

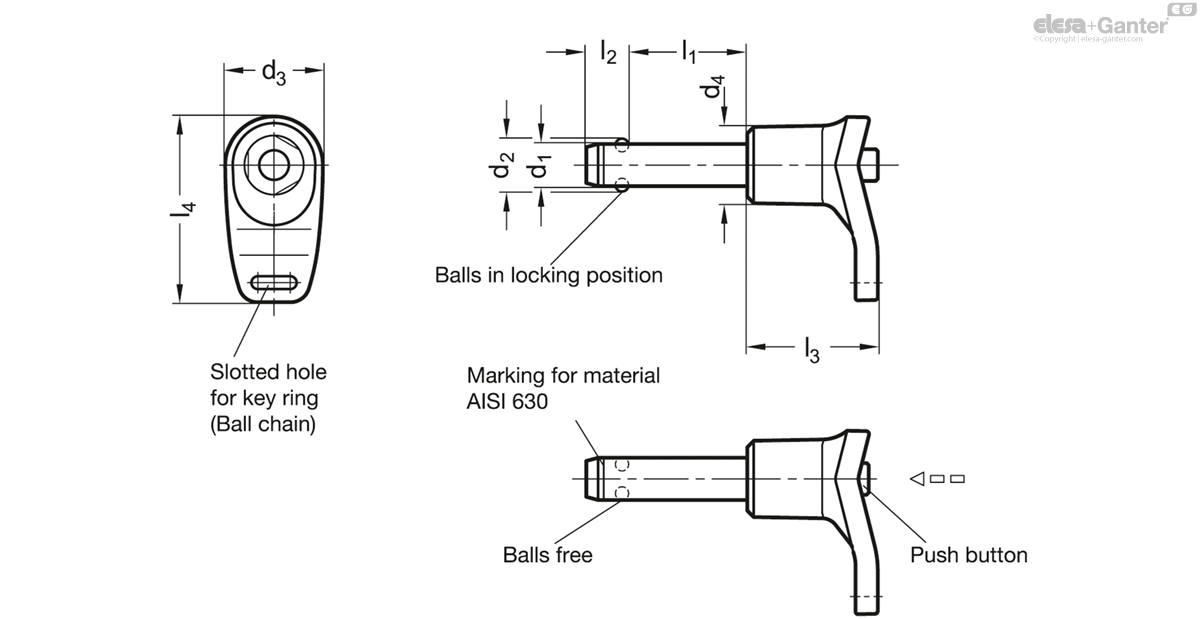

Stainless Steel-Ball lock pins GN 113.12 are used for quick fixing, connecting and locking of various parts and workpieces. A typical application is locating pins which have often to be removed and installed again.
By pressing the spring loaded push button both balls are unlocked and by releasing it, the balls are locked again.
Ball lock pins GN 113.12 have an extreme load capacity, the pin is made of heavy duty, hardened and highly abrasion-resistant Stainless Steel.
