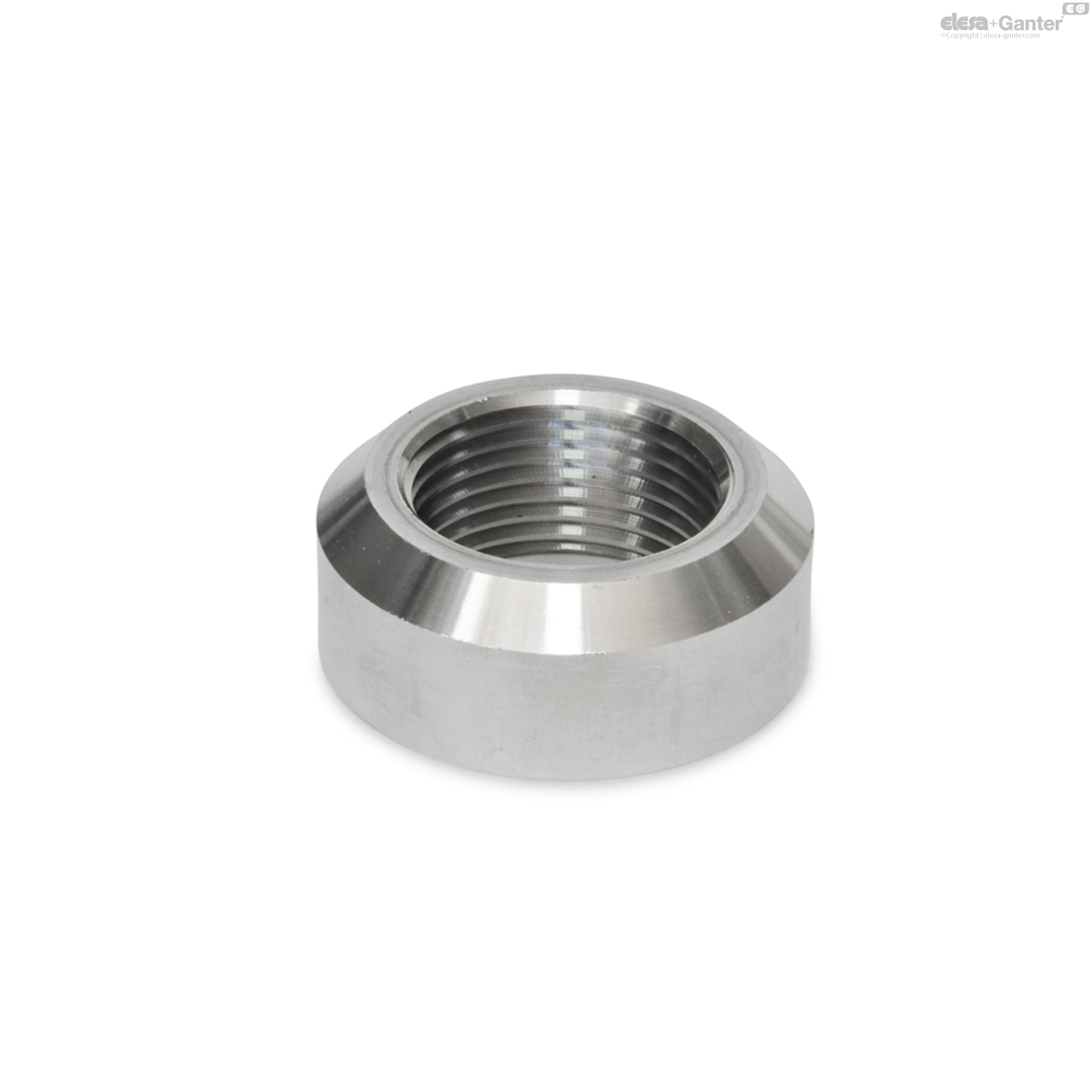

7490-NI-G1-A GN 7490-NI Acier inoxydable

7490-NI-G1-A

GN 7490-NI Acier inoxydable

Acier / Acier inoxydable, avec et sans collier
  • Icons/__logo__RoHS__.png

Délai: 1-2 semaines Toutes les tailles et variantes de GN 7490

🔒 Prix, stock en temps réel & téléchargements CAO

Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.

Se connecter Demander un compte

Caractéristiques techniques

Code
GN 7490-NI-G1-A
d1
G 1
d2
50
d3
40
h1
20
169
7490-NI-G1-A drawing

Types

  • Type A: With chamfer
  • Type B: With collar

Version in Steel

Steel ST

  • Weldable
  • Turned
  • Plain

Version in Stainless Steel

Stainless steel AISI 304 NI

  • Weldable
  • Turned
  • Plain

Welding sockets GN 7490 are used to attach threaded connections to containers, tanks or hydraulic cylinders via welding.

Filling and draining screw plugs as well as aeration and venting elements and oil level sight glasses can then be easily installed by screwing them in.

The flat surfaces are machined and can be used as sealing surfaces in connection with a suitable sealing element.

The sufficiently dimensioned walls prevent deformation or burn-through during welding

Type B (with collar) is used if exact positioning within the mounting bore or a low installed height is desired.
