GN 114.3 Broches de centrage
Délai: 1-2 semaines Toutes les tailles et variantes de GN 114.3
🔒 Prix, stock en temps réel & téléchargements CAO
Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.
Se connecter Demander un compte
Fiche technique
Caractéristiques techniques
- Code
- GN 114.3-10-70
- d1 -0.1
- 10
- l1 +0.4
- 70
- a
- 3.3
- b
- 1
- d2
- 11.7 +1
- d3
- 9.9
- d4
- 18
- d5
- 34
- l2
- 9.8
- l3
- 26
- Load in kN ≈
Load capacity in kN ≈
Double sided
shearing resistance
according DIN 50141
(breaking strength) - 47
- 49
Knob / Push button / Slide
- Plastic
- Temperature resistant up to 80 °C
- Knob: black-gray
- Push button: red
Pin
Stainless steel AISI 303
Pawl
Stainless Steel AISI 304 (sheet metal)
Pressure spring
Stainless steel AISI 301

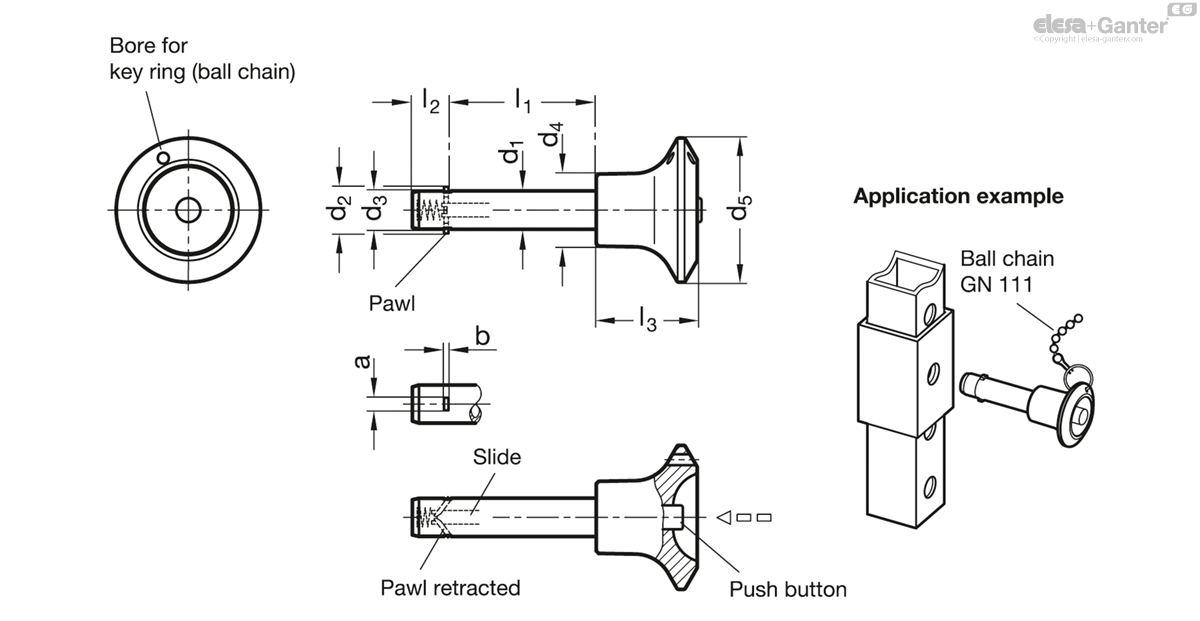

Locking pins with axial lock GN 114.3 are used for quick fixing, connecting and locking of various jig and fixture systems. A typical application is location pins which have to be often removed and re-placed again.
The rectangular pawls made of Stainless Steel sheet metal keep the locking pin in an axial position in the bore. It can be retracted by pressing the button, once released it returns the pressure spring into its locking position.
The technical appendix contains the load capacities for the double-sided shearing resistance (breaking strength).
