GN 113.8 Broches à billes en inox
Délai: 1-2 semaines Toutes les tailles et variantes de GN 113.8
🔒 Prix, stock en temps réel & téléchargements CAO
Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.
Se connecter Demander un compte
Fiche technique

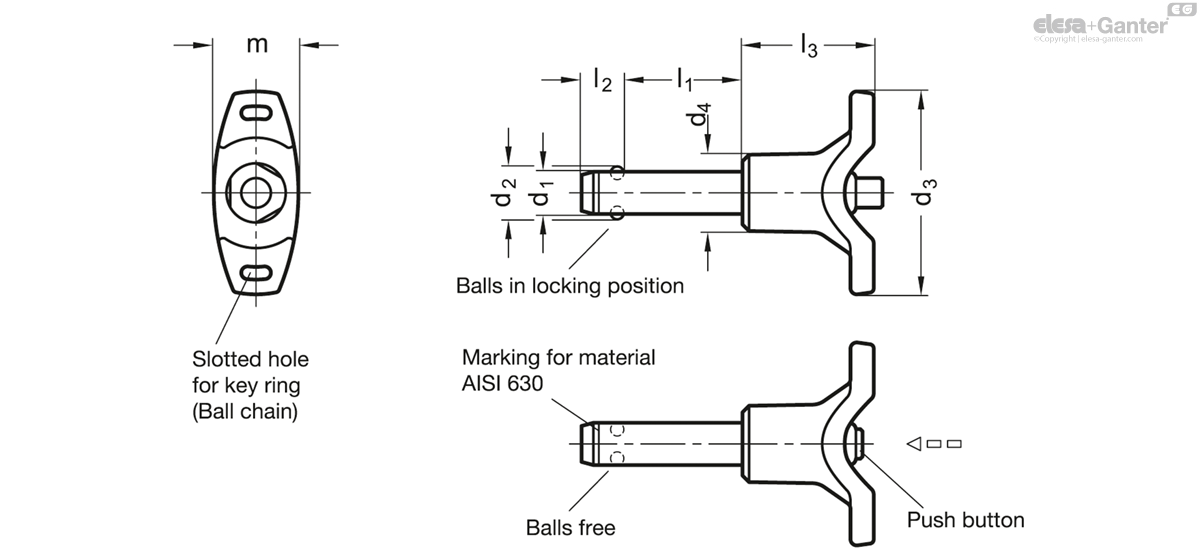

Caractéristiques techniques
- Code
- GN 113.8-20-120
- d1 -0.04/-0.08
- 20
- l1 +0.6
- 120
- d2
- 25
- d3
- 80
- d4
- 34
- l2 ±1
- 20.5
- l3
- 46.5
- m
- 38
- Location
bore H11 - 20
- Load F in kN ≈
Load capacity in kN ≈
Double sided
shearing resistance
according DIN 50141
(breaking strength) - 403
- 451
Pin Stainless Steel AISI 630
- precipitation-hardened
- hard coated
T-Handle
Plastic (Polyamide PA)
- black
- temperature resistant up to 80 °C
Balls
Stainless Steel AISI 420C
Spring
Stainless Steel
German Material No. 14565

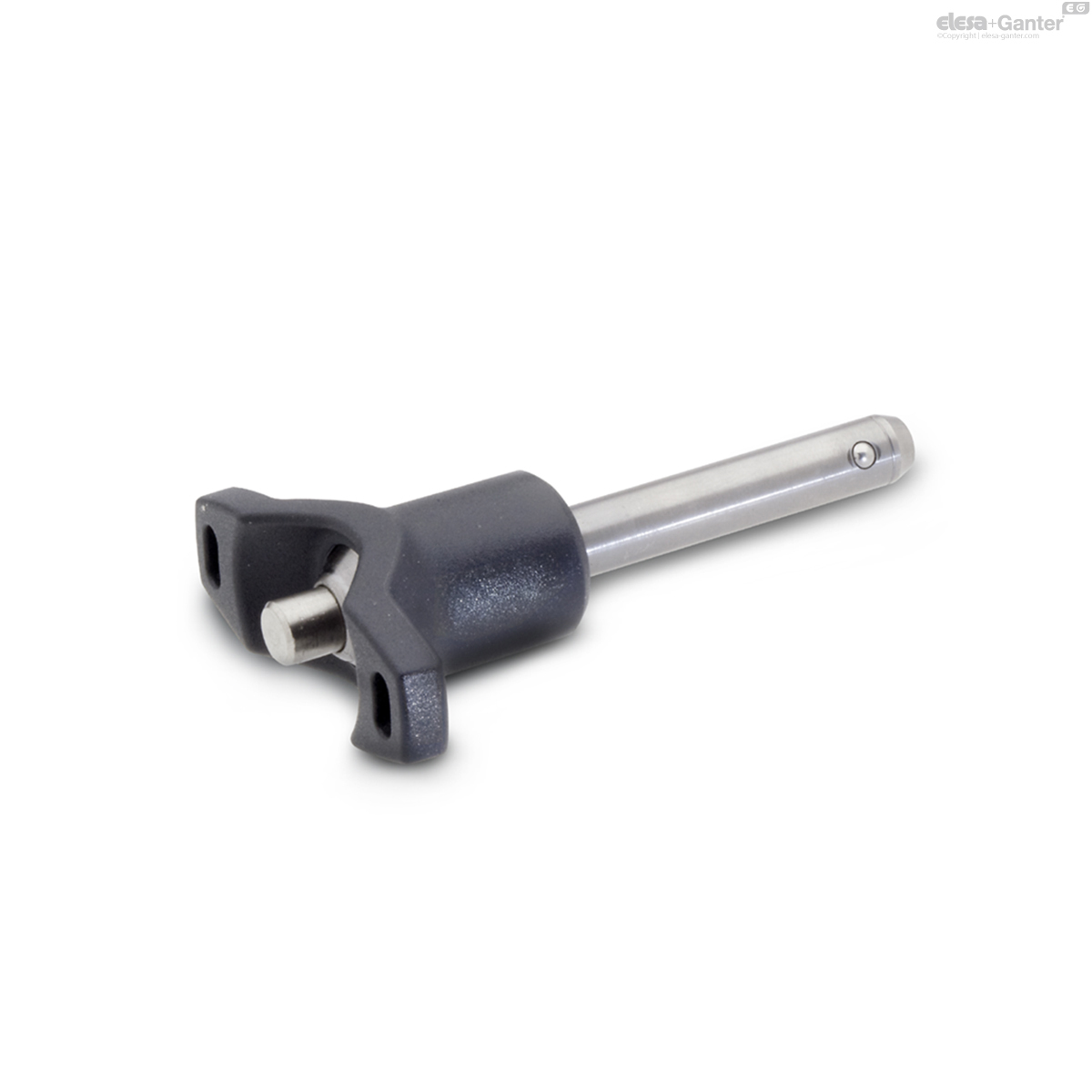

Stainless Steel-Ball lock pins GN 113.8 are used for quick fixing, connecting and locking of various parts and workpieces. A typical application is locating pins which have often to be removed and installed again.
By pressing the spring loaded push button both balls are unlocked and by releasing it, the balls are locked again.
Ball lock pins GN 113.8 have an extreme load capacity, the pin is made of heavy duty, hardened and highly abrasion-resistant stainless steel.
The load values given in the above table at shar stress are theoretically obtained and indicative only. They are non-binding recommended values and rule out of any liability. They consstitute no general warranty of quality and condition. The user must determine from case to case whether a product ist suitable for the intended use.
