GN 3380 Capteur
En stock Toutes les tailles et variantes de GN 3380
🔒 Prix, stock en temps réel & téléchargements CAO
Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.
Se connecter Demander un compte
Fiche technique
Caractéristiques techniques
- Code
- GN 3380-T-S-0,3

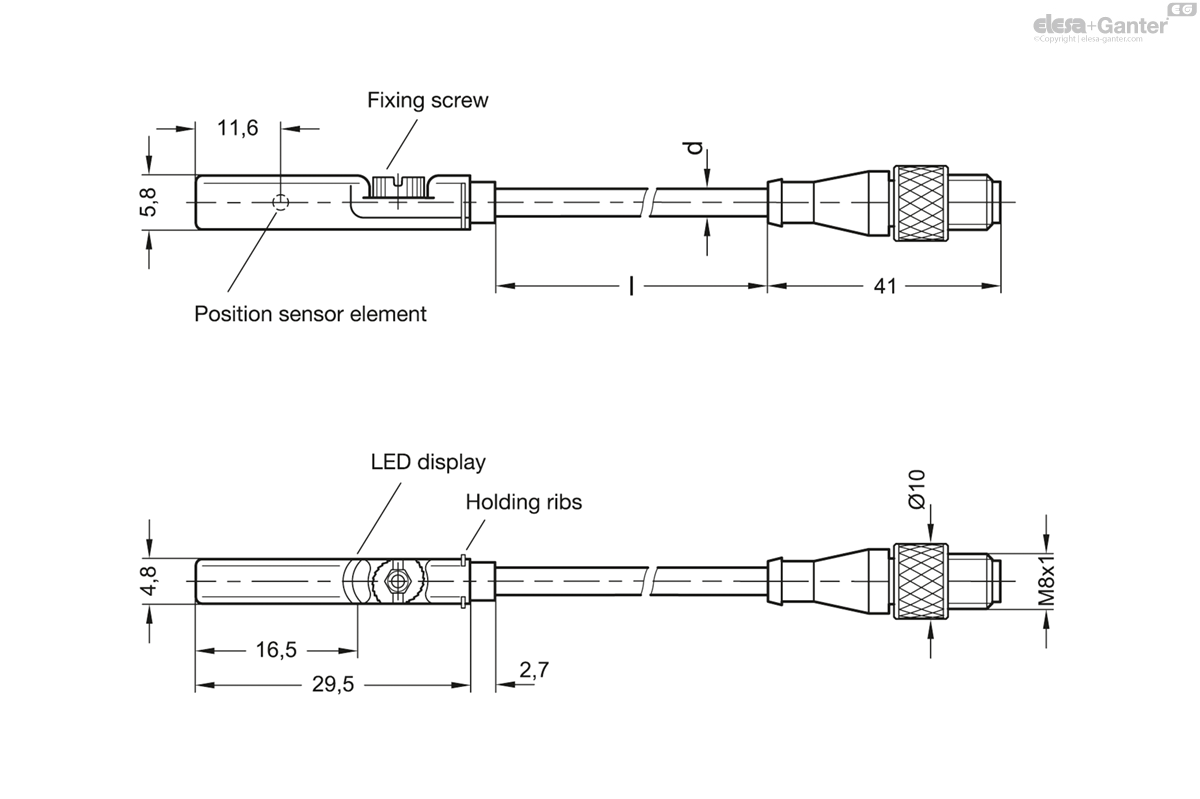

- Cable length l in m
- 0.3
- d
- 3
- 14
Type
- Type T: for T-groove cylinder
Connection type
- Connection type S: Plug
Housing
Plastic
Cable (outer sheath)
Polyurethan PUR
Black
Plug
Plastic, 3-pole
Knurled screw connection
- Brass, nickel plated
- Freely rotating
Temperature range: -30 °C to +80 °C
Protection class IP 65, IP 67

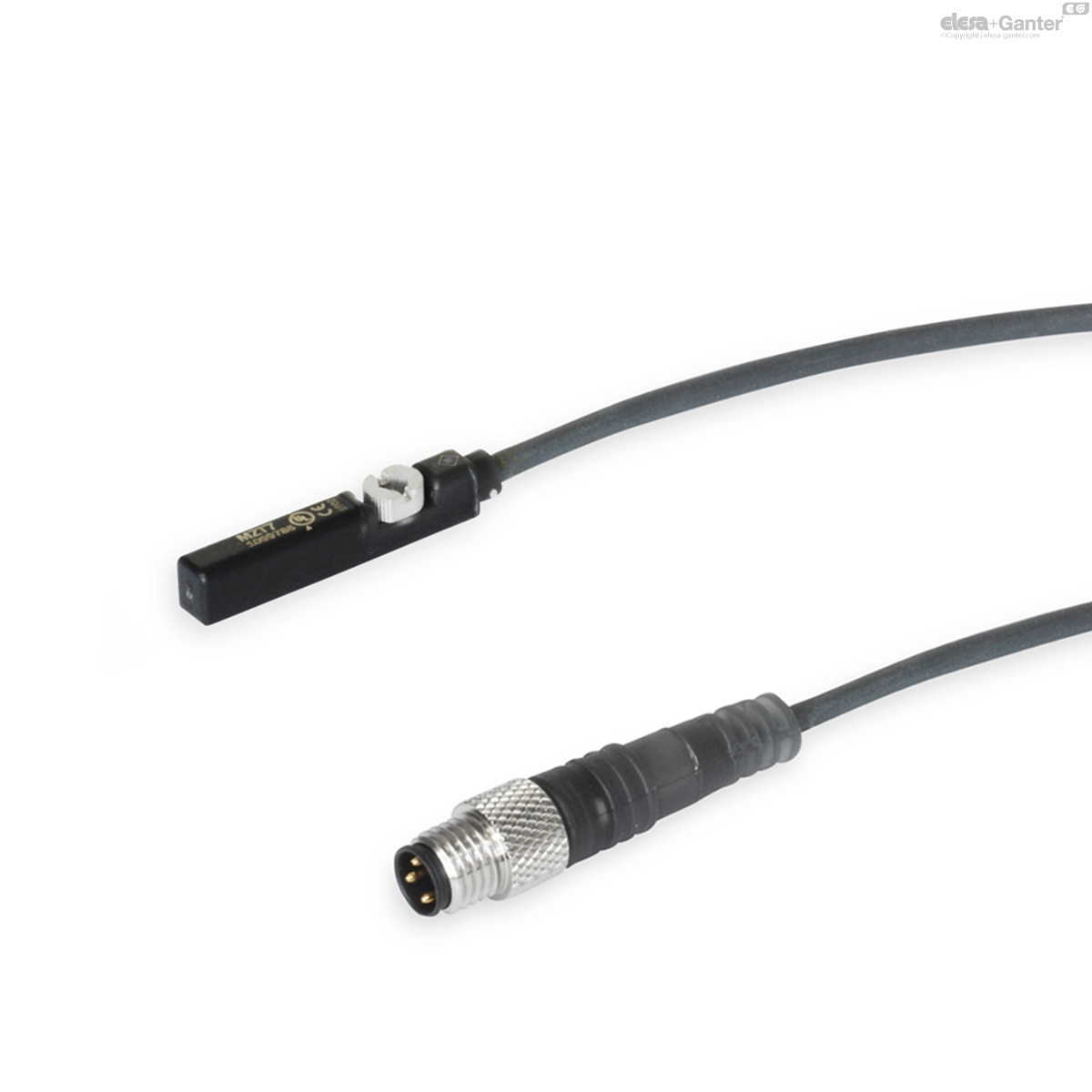

The sensor GN 3380 detects the piston position of pneumatic cylinders with magnetic pistons. Cylinders installed in pneumatic clamps enable the position detection of the clamp itself by means of this sensor. Upon reaching the switch point, the sensor electronics deliver a high signal, for instance to a machine controller, and also indicate this switch state via the integrated LED.
For installation, the sensor is inserted into the cylinder groove from above. The side retaining ribs prevent it from falling out. A quarter turn of the fastening screw quickly and reliably locks the sensor into place in the groove.
| Electrical properties | ||
| Output function | Normally open (NO) |  |
| Output type | PNP | |
| Supply voltage | 10 - 30 V DC | |
| Continuous current Ia | ≤ 100 mA | |
| Connection type | 3-pole plug M8x1,with knurled screw connection, with PUR cable 0.3 m |  |
| Plug (S) | ||
| Switching frequency | 1000 Hz | |
| Power consumption | ≤ 8 mA | |
| Voltage drop | ≤ 2 V | |
| Protection class | III | |
| Response sensitivity | 3 mT | |
| Overrun distance | 10 mm | |
| Hysteresis | < 0.8 mT | |
| Repeatability | ≤ 0.1 mT | |
| Shock and vibration resistance | 30 g, 11 ms / 10 ... 55 Hz, 1 mm | |
| EMC | According to EN 60947-5-2 | |
| Switch state LED | Yes | |
| Reverse polarity protection | Yes | |
| Short-circuit protection | Yes | |
| Approvals, conformity declarations CE marking UL |  | |
