875.3-AL-16-70-HE GN 875.3 Bras de serrage

875.3-AL-16-70-HE

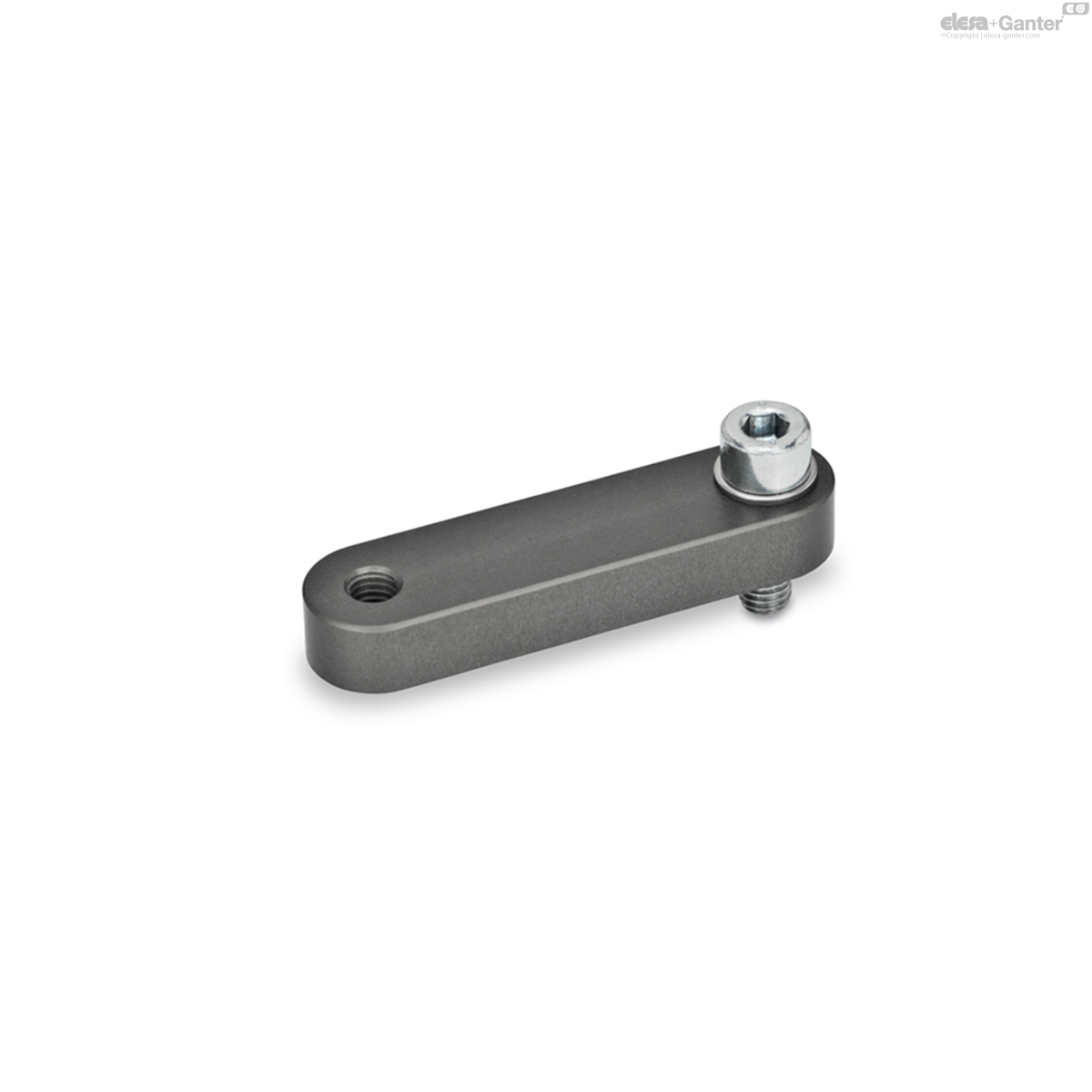

GN 875.3 Bras de serrage

avec trou fileté, pour pinces pivotantes GN 875 / GN 876
  • RoHS

Délai: 1-2 semaines Toutes les tailles et variantes de GN 875.3

🔒 Prix, stock en temps réel & téléchargements CAO

Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.

Se connecter Demander un compte

Caractéristiques techniques

Code
GN 875.3-AL-16-70-HE
For swing clamps
Size
40
d1
16
m
70
b
20
d2
M 8
d3
8.5
h1
15
h2
9
l
90
78

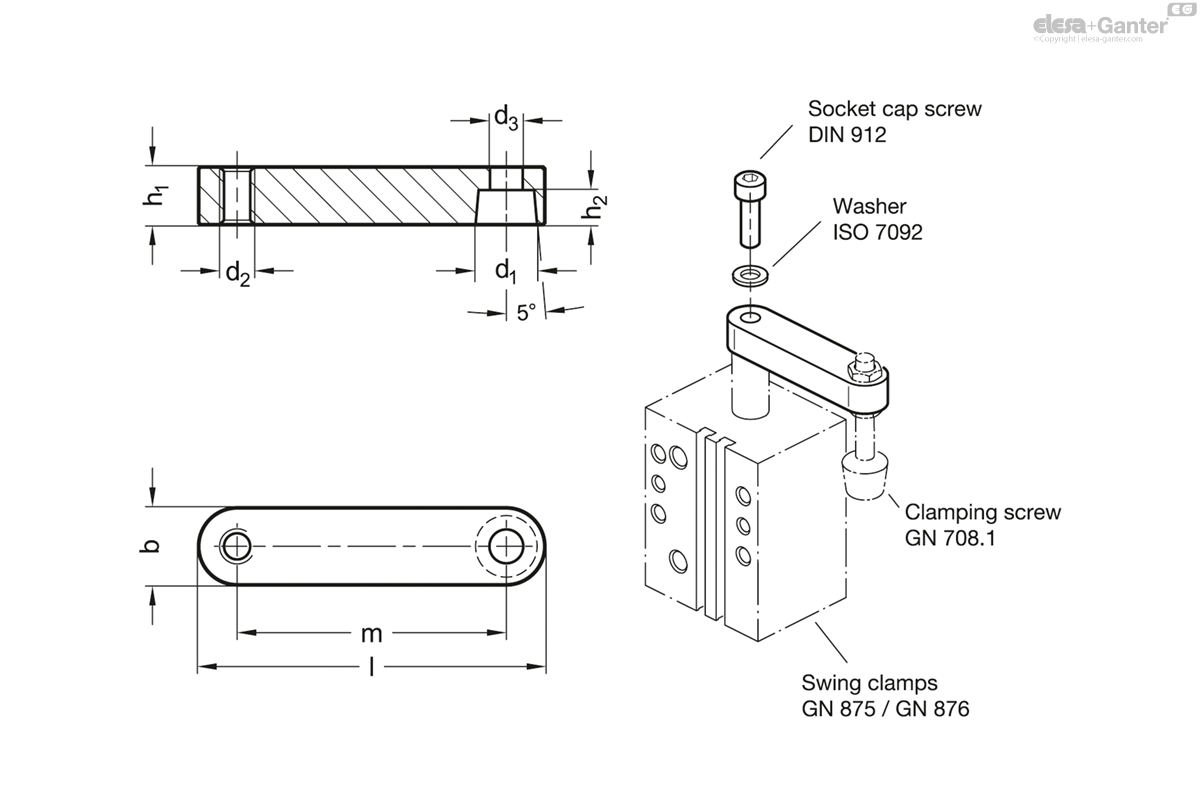

875.3-AL-16-70-HE drawing

Aluminum AL

Hard anodized HE

Wear-resistant surface

Socket cap screw DIN 912

Steel, zinc plated, blue passivated

Washer ISO 7092

Steel, zinc plated, blue passivated

Clamping arms GN 875.3 with threaded hole designed as accessories to swing clamps GN 875/GN 876. The thread can receive an application-specific clamping bolt.

The angle orientation of the clamping arm can be set arbitrarily during mounting on the swing clamp. When tightening the screw, the piston rod must not experience any torque. The clamping arm must therefore be held to prevent twisting.

Included are a socket cap screw DIN 912 and a washer ISO 7092 for fastening to the swing clamp.
