875.2-AL-20-85-HE GN 875.2 Bras de serrage

875.2-AL-20-85-HE

GN 875.2 Bras de serrage

avec trou oblong, pour pinces pivotantes GN 875 / GN 876
  • Icons/__logo__RoHS__.png

Délai: 1-2 semaines Toutes les tailles et variantes de GN 875.2

🔒 Prix, stock en temps réel & téléchargements CAO

Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.

Se connecter Demander un compte

Caractéristiques techniques

Code
GN 875.2-AL-20-85-HE
For swing clamps
Size
50 / 63
d1
20
m
85
a
30
b1
10.5
b2
17.5
b3
25
d2
M 10
d3
10.5
h1
23
h2
10
l
106.2
124

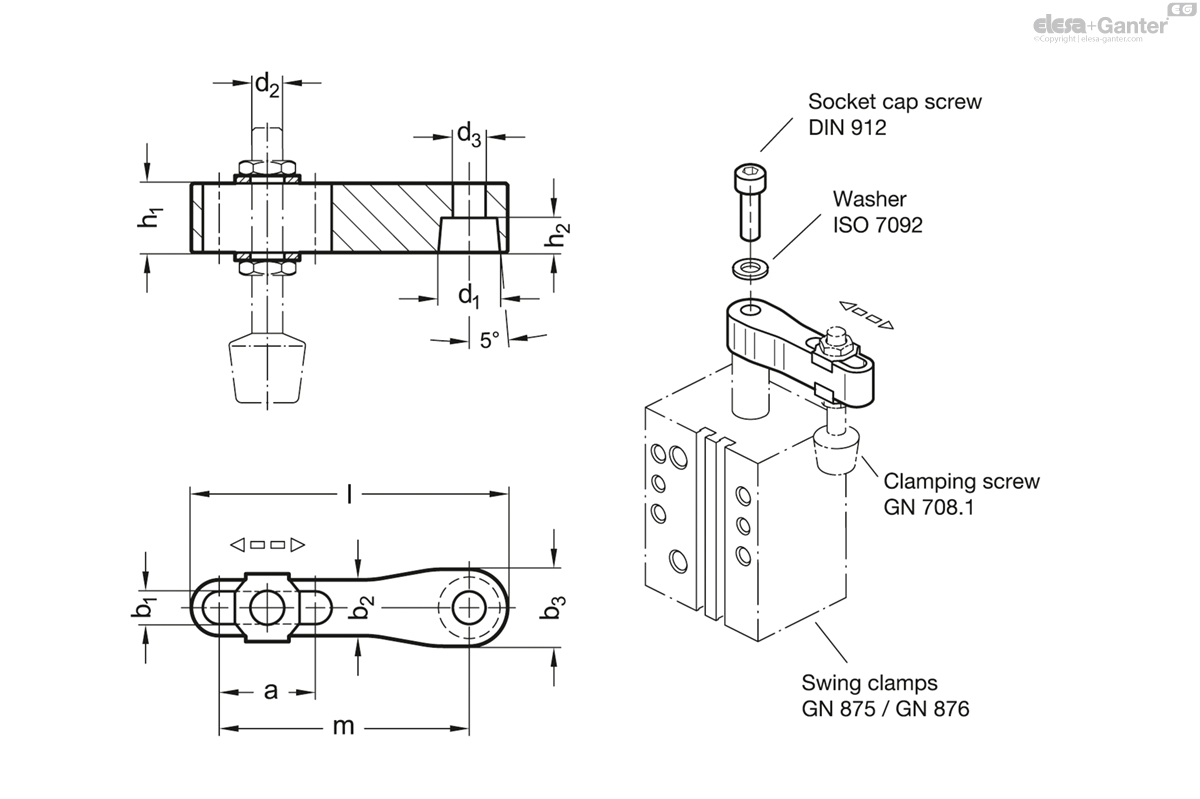

875.2-AL-20-85-HE drawing

Aluminum AL

Hard anodized HE

Wear-resistant surface

Flanged washers

Steel, zinc plated, blue passivated

Socket cap screw DIN 912

Steel, zinc plated, blue passivated

Washer ISO 7092

Steel, zinc plated, blue passivated

Clamping arms GN 875.2 with slotted hole designed as accessories to swing clamps GN 875/GN 876. The slotted hole allows arbitrary positioning of application-specific pressing elements in connection with the two flanged washers.

The angle orientation of the clamping arm can be set arbitrarily during mounting on the swing clamp. When tightening the screw, the piston rod must not experience any torque. The clamping arm must therefore be held to prevent twisting.

Included are a socket cap screw DIN 912 and a washer ISO 7092 for fastening to the swing clamp as well as two flanged washers for fastening the clamping bolts.
