113.10-25-80

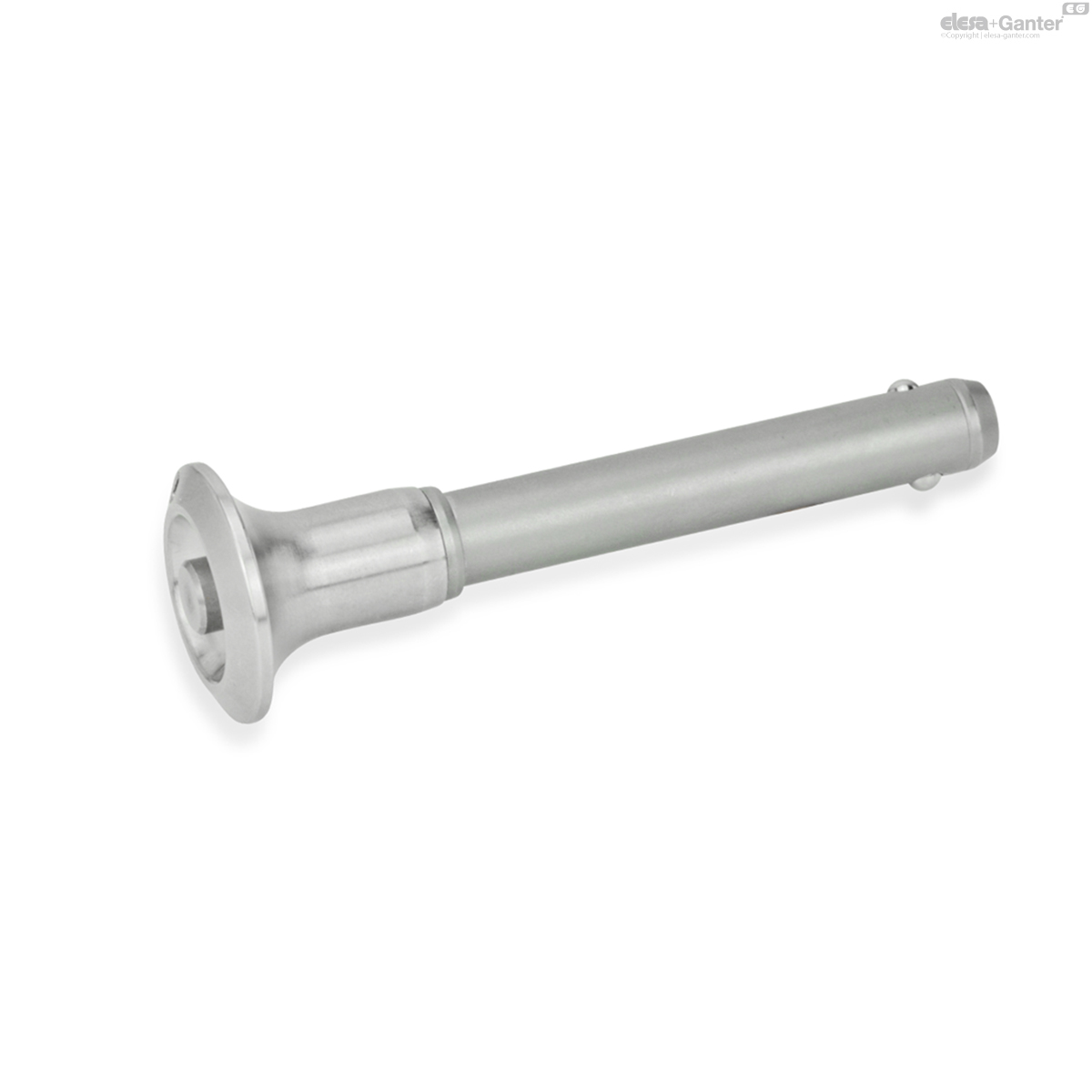

GN 113.10 Broches à billes en inox
Délai: 1-2 semaines Toutes les tailles et variantes de GN 113.10
🔒 Prix, stock en temps réel & téléchargements CAO
Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.
Se connecter Demander un compte
Fiche technique
Caractéristiques techniques
- Code
- GN 113.10-25-80
- d1 -0.04/-0.08
- 25
- l1 +0.6
- 80
- d2
- 30.8
- d3
- 50
- d4
- 30.4
- l2 ±1
- 22.3
- l3 -0.2
- 54.3
- Location
bore H11 - 25
- Load F in kN ≈
Load capacity in kN ≈
Double sided
shearing resistance
according DIN 50141
(breaking strength) - 631
- 662
Pin
Stainless steel AISI 630
Precipitation-hardened
Knob, push button
Stainless steel AISI 316L
Balls
Stainless steel AISI 420C
Pressure spring
Stainless steel
German material no. 1.4565
Ball lock pins GN 113.10 are used for quick fixing, connecting and locking of various parts and workpieces. A typical application is location pins which have to be often removed and replaced again.
By pressing the spring loaded push button both balls are unlocked and by releasing it, the balls are locked again.
Ball lock pins GN 113.10 have an extreme load capacity, the pin is made of heavy duty, hardened and highly abrasion-resistant stainless steel.
The technical appendix contains the load capacities for the double-sided shearing resistance (breaking strength).
