7072.3-36-B15-NI

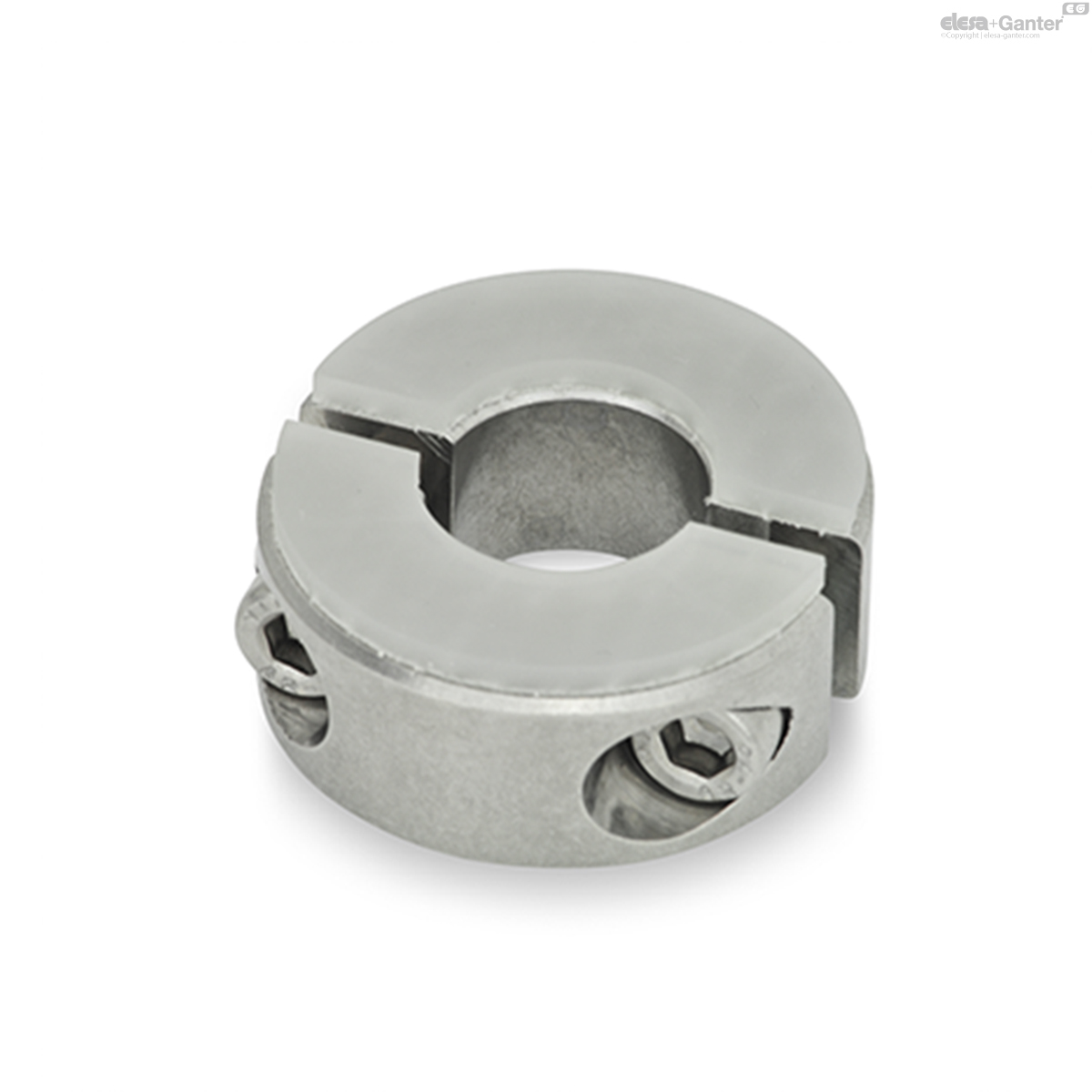

GN 7072.3 Colliers à arbre fendu
Délai: 1-2 semaines Toutes les tailles et variantes de GN 7072.3
🔒 Prix, stock en temps réel & téléchargements CAO
Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.
Se connecter Demander un compte
Fiche technique
Caractéristiques techniques
- Code
- GN 7072.3-36-B15-NI
- d1
- 36
- d2 H10
- B 15
- b1
- 13
- b2
- 15
- d3
- M 5
- s
- 2.1
- x ≈ Max. protrusion
of cap screw - 1.4
- Adjustable hand lever for d3
- GN 311-30-M5-13-SW
- 113
Stainless steel AISI 316LHC NI
Sintered
Damping washer
Elastomer (PUR)
- 70 Shore A
- Temperature resistant up to 80 °C
- Transparent
Socket cap screw DIN 912
Stainless steel AISI 304
The affixed damping washer of the split shaft collars GN 7072.3 absorbs mild shocks and has a sound-damping effect when the shaft collars come into contact with other components.
They can be assembled safely and easily with a high clamping force by reducing the slot height, without damaging the surface of shafts and axles. As compared to semi-split shaft collars, split shaft collars can even be assembled radially.
The thread d3 for sizes d1 = 30 to 36 is designed as a through hole; for sizes d1 = 42 and larger, it is designed as blind hole.
- Adjustable Hand Levers GN 311
