GN 124.1 Broches de centrage en inox
Délai: 1-2 semaines Toutes les tailles et variantes de GN 124.1
🔒 Prix, stock en temps réel & téléchargements CAO
Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.
Se connecter Demander un compte
Fiche technique
Caractéristiques techniques
- Code
- GN 124.1-6-17
- d1 -0.04/-0.08
- 6
- l1
- 17
- d2
- 26
- d3
- 17.5
- l2
- 22
- l3
- 1.3
- Location bore
- 6
- Axial holding
force in N ≈ - 65
- Load in kN ≈
Load capacity in kN ≈
Double sided
shearing resistance
according DIN 50141
(breaking strength) - 22
- 19
Pin
Stainless Steel AISI 303
Knob
Plastic Technopolymer (Polyamid PA)
- black-grey
- temperature resistant up to 80 °C
Retaining magnet
Neodymium, iron, boron

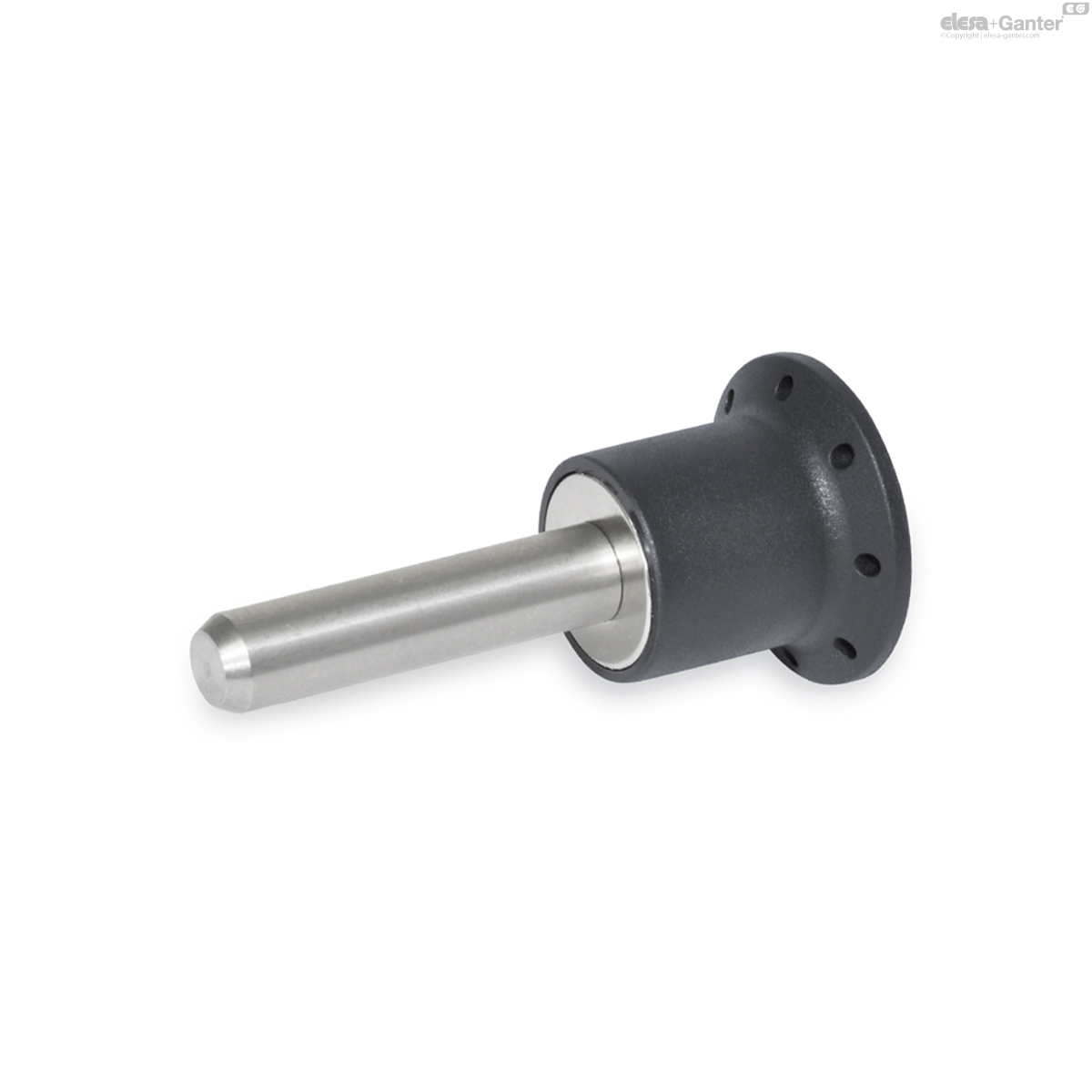

GN 124.1 Stainless Steel-Locking pins are used for quickly fixing, connecting and locking various parts and workpieces made of magnetic materials.
A neodymium magnet is recessed into the underside of the bolt and axially retains the bolt in its inserted procession. High-quality surfaces with perpendicular locating holes promote magnetic flux to produce excellent axial retention.
The rated shear stresses of the bolt cross-section are theoretical guide values only and do not constitute any warranty. They constitute no general warranty of quality and condition. The user must determine from case to case whether a product is suitable for the intended use.
