730.5-A4-120-GS
GN 730.5 Poignée déportée inox
Délai: 1-2 semaines Toutes les tailles et variantes de GN 730.5
🔒 Prix, stock en temps réel & téléchargements CAO
Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.
Se connecter Demander un compte
Fiche technique

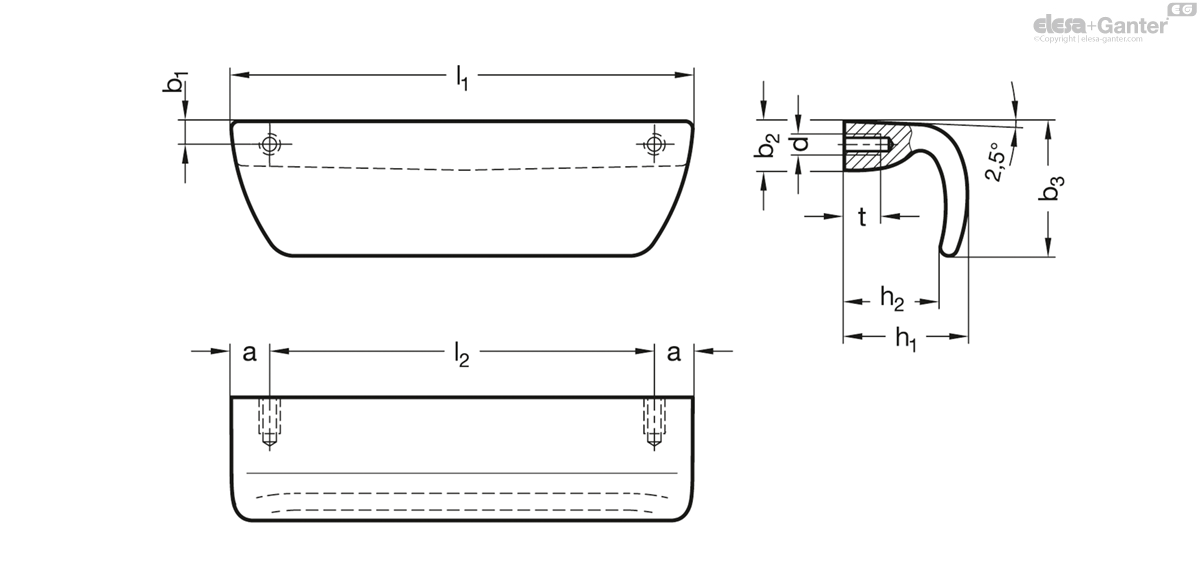

Caractéristiques techniques
- Code
- GN 730.5-A4-120-GS
- l1
- 120
- a
- 10
- b1
- 6
- b2
- 12.5
- b3
- 35
- d
- M 6
- h1
- 32
- h2
- 25
- l2
- 100
- t min.
- 9
- 347
Stainless steel precision casting AISI 316 A4
Stainless steel precision casting AISI 316 A4
Matte shot-blasted finish GS
The ledge handle GN 730.5 is used on doors, guards and hatches on machines, as well as on drawers and pull-out units.
Due to the material used, the handle is intended especially for use in corrosive environments with aggressive media.
The ledge handle is made in a way that does not allow pooling of fluids, which makes cleaning easier and prevents build up of residue and bacteria.
It can be attached from the back side via the mounting thread. Alternatively, the handles can be welded from the front.
- Polished or powder coated
