812-200-CV
GN 812 Sauterelles
Délai: 1-2 semaines Toutes les tailles et variantes de GN 812
🔒 Prix, stock en temps réel & téléchargements CAO
Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.
Se connecter Demander un compte
Fiche technique

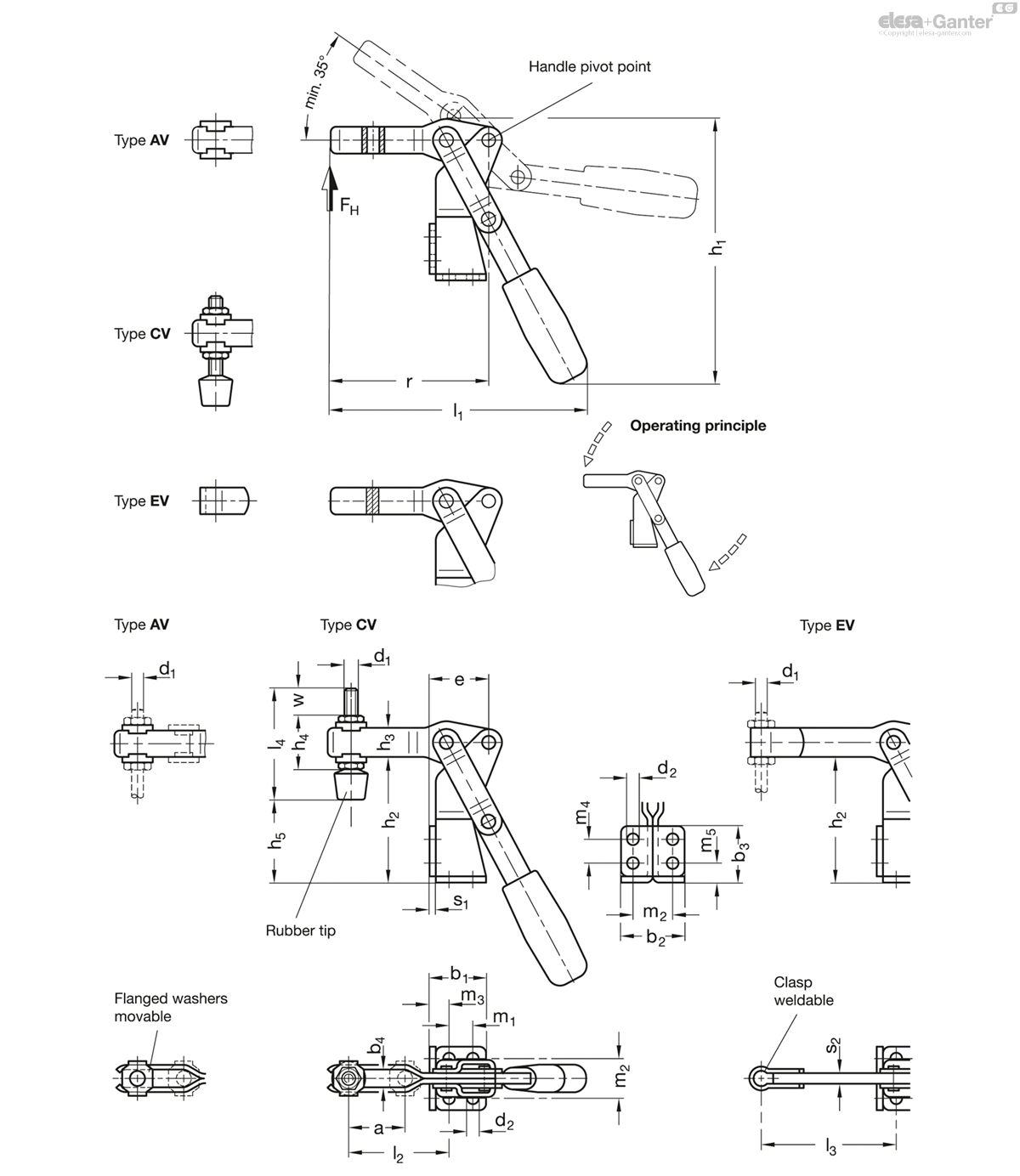

Caractéristiques techniques
- Code
- GN 812-200-CV
- Size
- 200
- FH in N
- 1200
- a ≈
- 34
- b1
- 35
- b2
- 38
- b3
- 35
- b4
- 8.5
- d1
- M 8
- d2
- 6.5
- e
- 37
- h1 ≈
- 154
- h2
- 76
- h3
- 17
- h4
- 29
- h5 max.
- 52
- l1 ≈
- 158
- l2 ≈
- 59
- l4
- 68
- m1
- 16
- m2
- 26
- m3
- 11
- m4
- 16
- m5
- 11
- r ≈
- 96
- s1
- 3
- w
- 21
- 480
Types
- Type AV: U-bar version, with two flanged washers
- Type CV: U-bar version, with two flanged washers and GN 708.1 spindle assembly
- Type EV: Solid bar version, with clasp
Parts in sheet metal
Case-hardened Steel C10, zinc plated, blue passivated
Bearing pins tempered
Bearing rivets case-hardened
All moving parts
lubricated with special grease
Hand grip
High quality, oil resistant red plastic
Spindle assembly GN 708.1, Type A
- Steel, zinc plated
- Rubber tip 85 Shore A

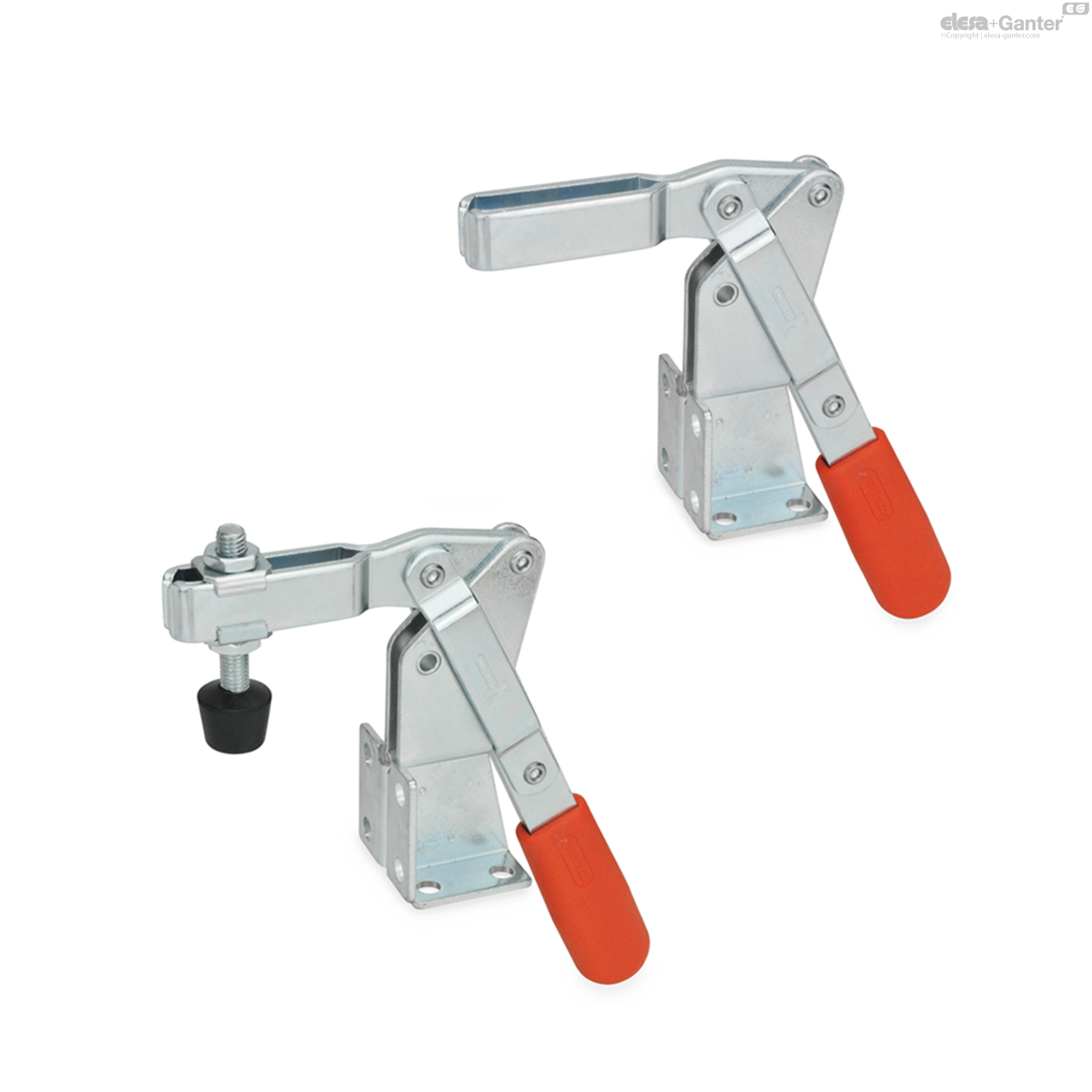

GN 812 vertical acting toggle clamps work according to the toggle principle: lever and clamping bar move in the same direction. They can be mounted in two planes via the dual flanged mounting base and require less space for the clamping action because the clamping arm and the operating lever move in opposite directions.
Vertical acting toggle clamps in the U-bar version with two flanged washers (Type AV) can accommodate an application specific clamping screw. A spindle assembly with neoprene rubber tip is also included for Type CV.
Type EV version can either be utilized by welding the clasp which can then accommodate an application specific hold-down fastener component, or by utilizing the bar in conjunction with the GN 809 clamp mounts to hold the work piece in place.
- Spindle assemblies
- GN 801 clamp mounts for toggle clamps (for Type AV)
- GN 809 clamp mounts for toggle clamps (for Type EV)
