810-75-C
GN 810 Acier
En stock Toutes les tailles et variantes de GN 810
🔒 Prix, stock en temps réel & téléchargements CAO
Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.
Se connecter Demander un compte
Fiche technique
Caractéristiques techniques
- Code
- GN 810-75-C
- Size
- 75
- Fh in N
- 750
- a ≈
- 20
- b1
- 29
- b2
- 34
- b3
- 5.2
- d1
- M 5
- d2 ≈
- 4.5
- h1 ≈
- 98
- h2
- 20.5
- h3
- 11
- h4
- 19
- h5
- 5.5
- l1 ≈
- 66.5
- l2 ≈
- 31.5
- l4
- 45
- m1
- 15
- m2
- 16
- m3
- 24
- m4
- 24
- r ≈
- 62.5
- s1
- 2
- w
- 15
- 100
Types
- Type A: U-bar version, with two flanged washers
- Type C: U-bar version, with two flanged washers and GN 708.1 spindle assembly
- Type E: Solid bar version, with clasp
Version in Steel
- Case-hardened Steel C10, zinc plated, blue passivated
- Bearing pins tempered
- Bearing rivets (for size 230 and up), case-hardened
All moving parts
lubricated with special grease
Hand grip
High quality, oil resistant red plastic
Spindle assembly GN 708.1, Type A
- Steel, zinc plated
- Rubber tip 85 Shore A
Version in Stainless Steel NI
Stainless Steel AISI 304
All moving parts
lubricated with special grease
Hand grip
High quality, oil resistant red plastic
Spindle assembly GN 708.1, Type A
- Stainless Steel AISI 304
- Rubber tip 85 Shore A

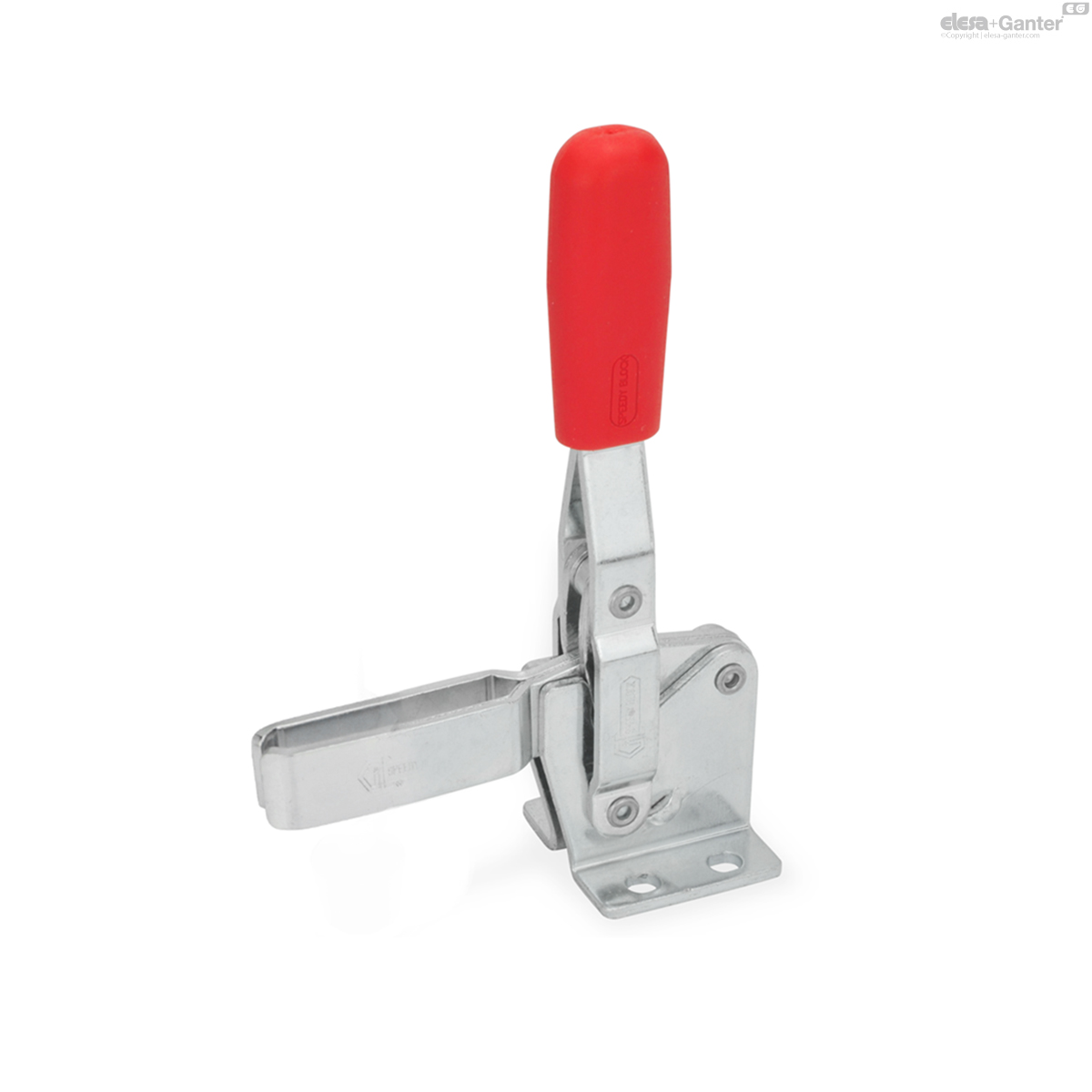

GN 810 vertical acting toggle clamps work according to the toggle principle: lever and clamping bar move in the same direction. In the clamped position the operating lever is in its vertical position.
Vertical acting toggle clamps in the U-bar version with two flanged washers (Type A) can accommodate an application specific clamping screw. A spindle assembly with neoprene rubber tip is also included for Type C.
Type E version can either be utilized by welding the clasp which can then accommodate an application specific hold-down fastener component, or by utilizing the bar in conjunction with GN 809 clamp mounts to hold the work piece in place.
- Spindle assemblies
- GN 801 clamp mounts for toggle clamps (for Type A)
- GN 809 clamp mounts for toggle clamps (for Type E)
