1024-NI-5-D
GN 1024-NI Acier inoxydable
Acier / Acier inoxydable
Délai: 1-2 semaines Toutes les tailles et variantes de GN 1024
🔒 Prix, stock en temps réel & téléchargements CAO
Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.
Se connecter Demander un compte
Fiche technique

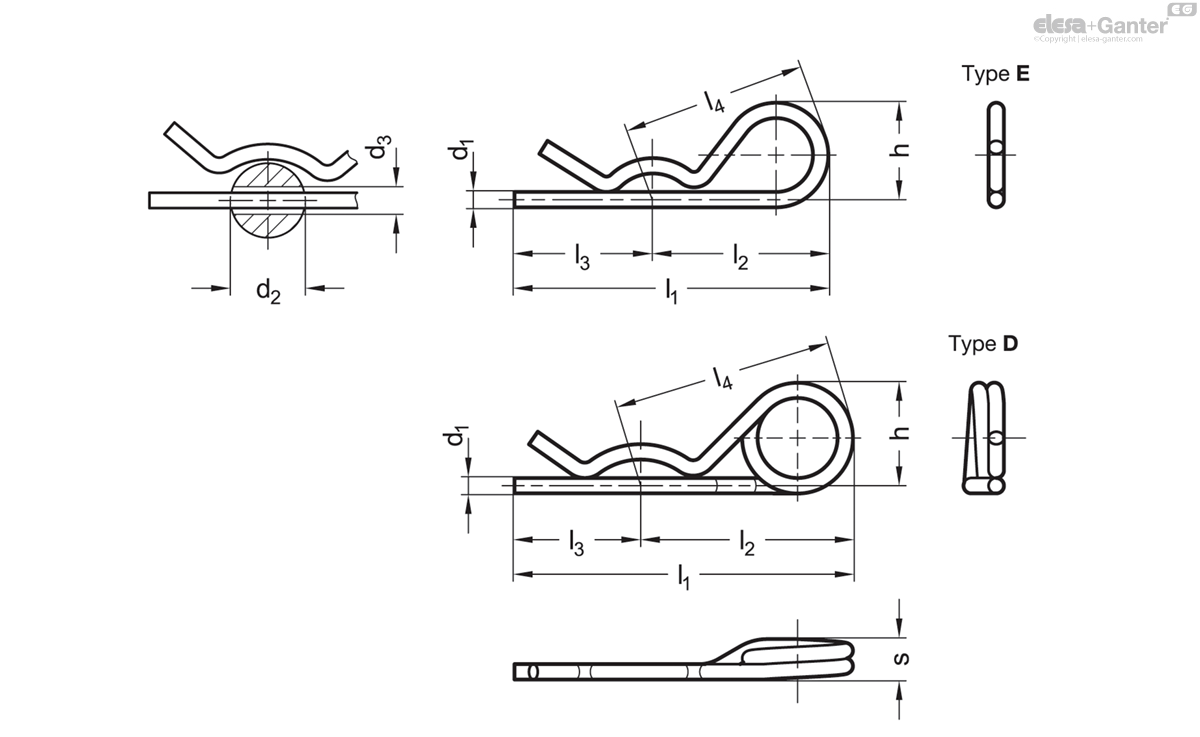

Caractéristiques techniques
- Code
- GN 1024-NI-5-D
- d1
- 5
- d2
- 18 ... 30
- d3
- 5.5
- h
- 35
- l1
- 110
- l2
- 70
- l3
- 40
- l4
- 73
- s
- 13.5
- Load in N ≈
Mounting - 100
- Load in N ≈
Dismantling - 95
- Load in N ≈
for bolt Ø - 25
- 53

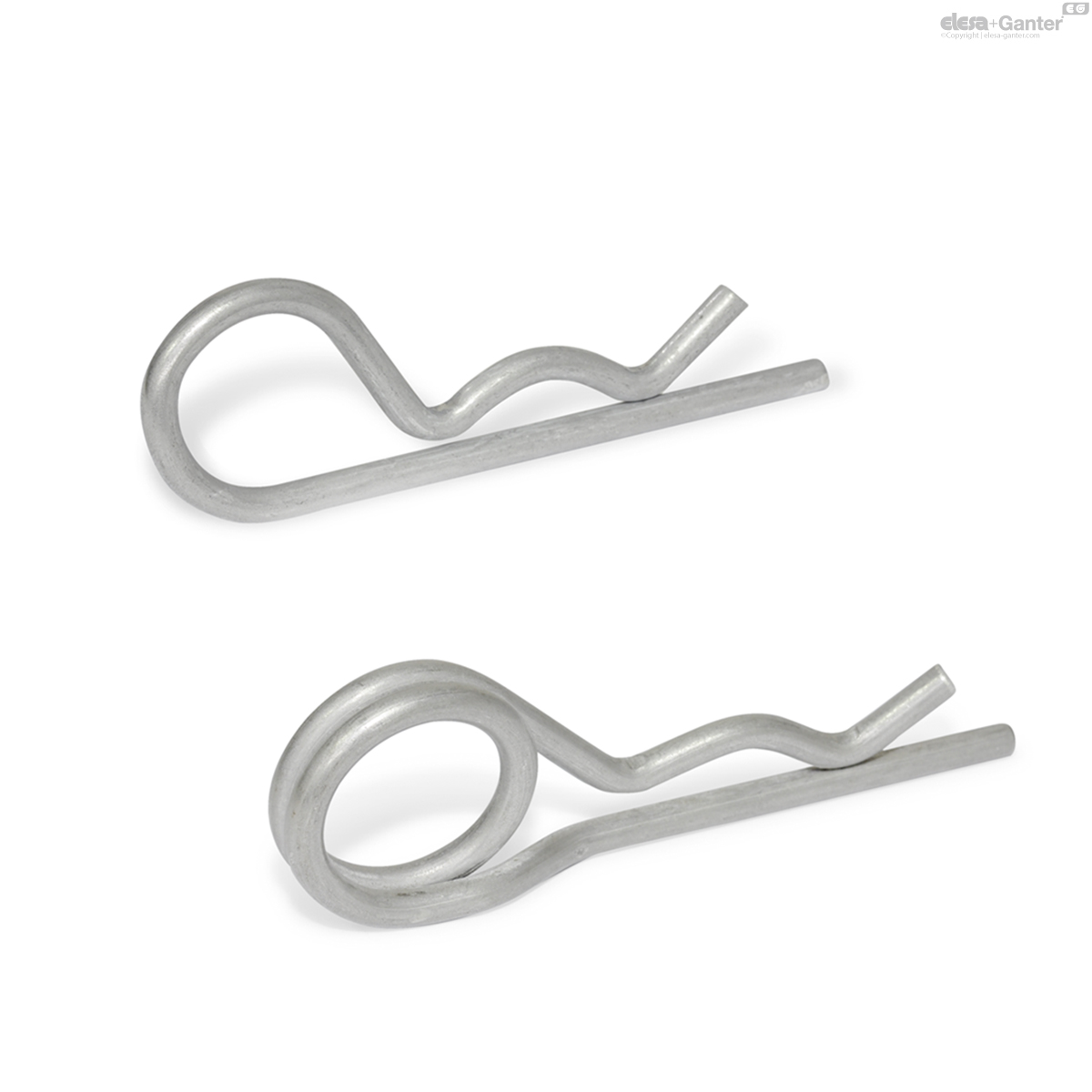

Types
- Type E: with single winding
- Type D: with double winding
Version in Steel ST
zinc plated, blue passivated
Version in Stainless Steel NI
AISI 301
Spring cotter pins GN 1024 are used for the axial fixing of bolts and axes and as distortion guard, e.g. for crown nuts DIN 935.
Owing to their double winding, spring cotter pins of Type D have a flatter spring characteristic and are therefore easier to install. Also, a retaining rope inclding a key ring can be attached to the double winding to safeguard the spring cotter pins against loss.
