817.9-10-12-C
GN 817.9 Doigts d'indexation
Délai: 1-2 semaines Toutes les tailles et variantes de GN 817.9
🔒 Prix, stock en temps réel & téléchargements CAO
Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.
Se connecter Demander un compte
Fiche technique
Caractéristiques techniques
- Code
- GN 817.9-10-12-C
- d1 Pin -0.02/-0.05
Bore
+0.10/+0.03 - 10
- l1
- 12
- l2
- 14
- b
- 16
- d2
- 5.3
- d3
- 28
- d4
- 7.5
- d4 -0.05
- 7.5
- d5
- M 4
- d6
- 38
- k
- 26
- l3
- 30
- l4
- 58
- l5
- 26
- l6
- 8
- l7
- 39.5
- l8
- 25.4
- l8 ±0.1
- 25.4
- t
- 8
- Spring load in N ≈
initial - 9.5
- Spring load in N ≈
end - 38
- 90
Types
- Type B: without rest position
- Type C: with rest position
Guide
Zinc die casting
plastic coated
black, textured finish
Pin
Stainless Steel AISI 303
Countersunk screw DIN 7991
Stainless Steel AISI 304
Knob
Plastic (Polyamide PA)
black, matt
Indexing plungers GN 817.9 have been designed such that special versions of the indexing pins can also be made economically in smaller unit quantities.

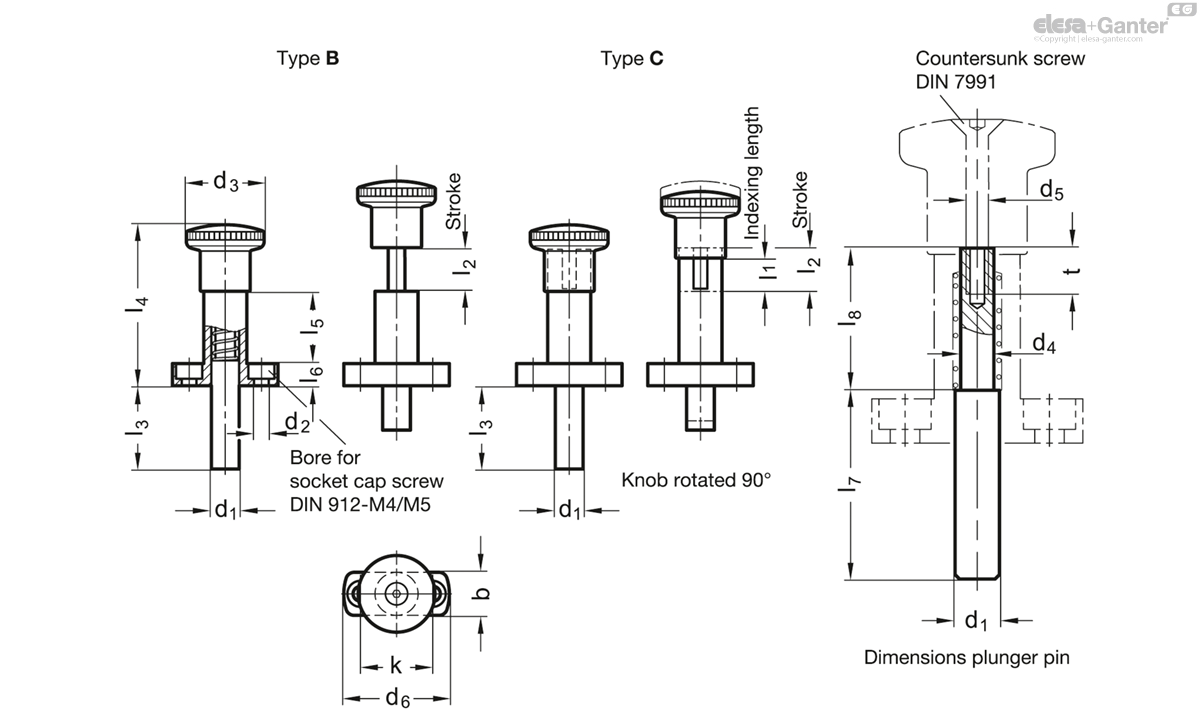

If reqired, the indexing pins can be machined or made by the user as shown in the drawing above. They are assembled with a countersunk screw and can therefore be assembled several times. All parts are supplied in a non-assembled set.
The indexing plungers type C are used for such applications where the plunger has to stay in its retracted position. To achieve this, the knob is rotated by 90° degrees after being retracted. A notch keeps the plunger in this position.
