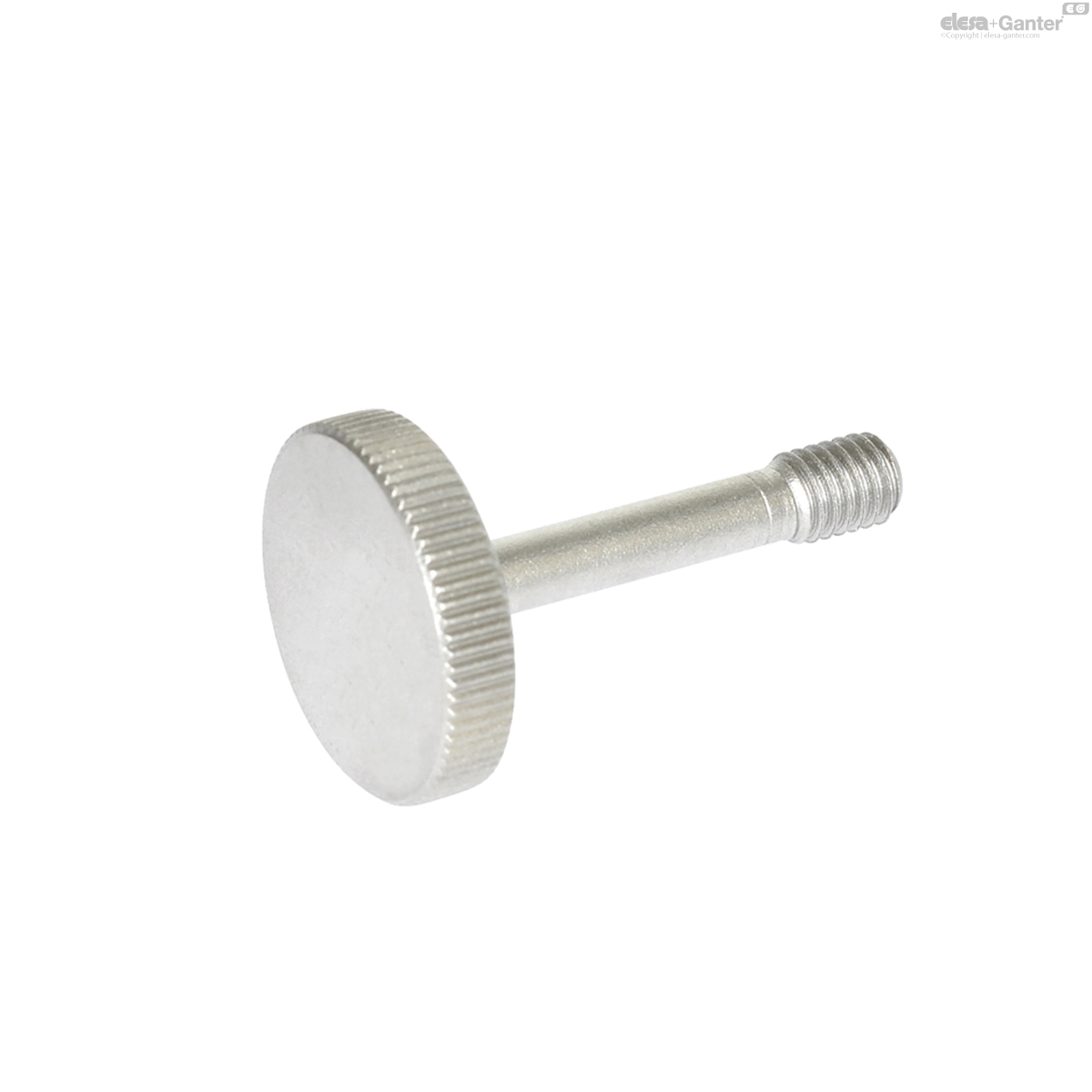

653.2-M8-42-NI
GN 653.2-NI Acier inoxydable
Délai: 1-2 semaines Toutes les tailles et variantes de GN 653.2
🔒 Prix, stock en temps réel & téléchargements CAO
Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.
Se connecter Demander un compte
Fiche technique
Caractéristiques techniques
- Code
- GN 653.2-M8-42-NI
- d1
- M8
- l1
- 42
- a1
- 16-20
- a2
- 20-28
- a3
- 28-32
- d2
- 30
- d3
- 16
- d4 -0.2
- 6.5
- d5
- 8.5
- h
- 9
- k
- 6
- l2
- 10
- l3
- 4
- 50
Version in Steel ST
- Tensile strength class 5
- visible face fine turned
- black oxide finish
Version in Stainless Steel AISI 303 NI
- AISI 303
- visible face fine turned
- matt shot-blasted
Knurled screws GN 653.2 can be used for to prevent loss of the thumb screw, due to the d4 recessed portion of the stud.
When using, instead of a typical tapped and bore hole, it is necessary to provide tapped bores with a thread d1 on each of the two elements to be assembled. Additionally, a clearance bore of d5 on one or both sides must be cut.

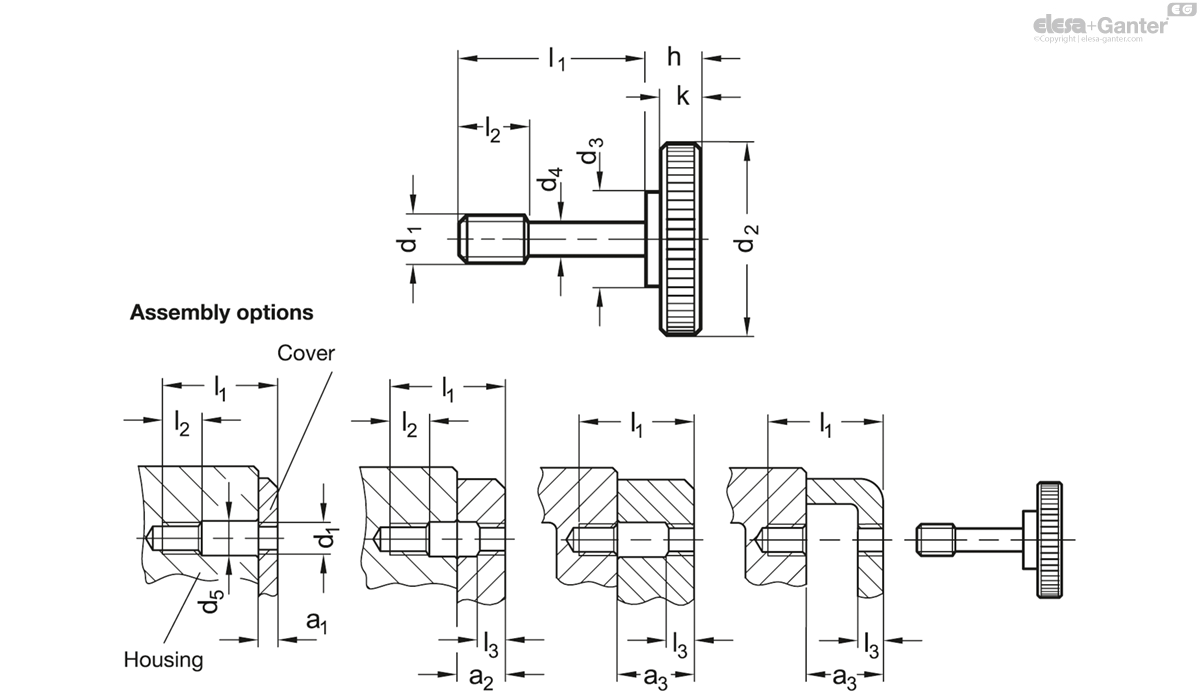

Depending on the design and required clamping length a1 ... a3 of the component being attached, there are a number of assembly options as shown.
