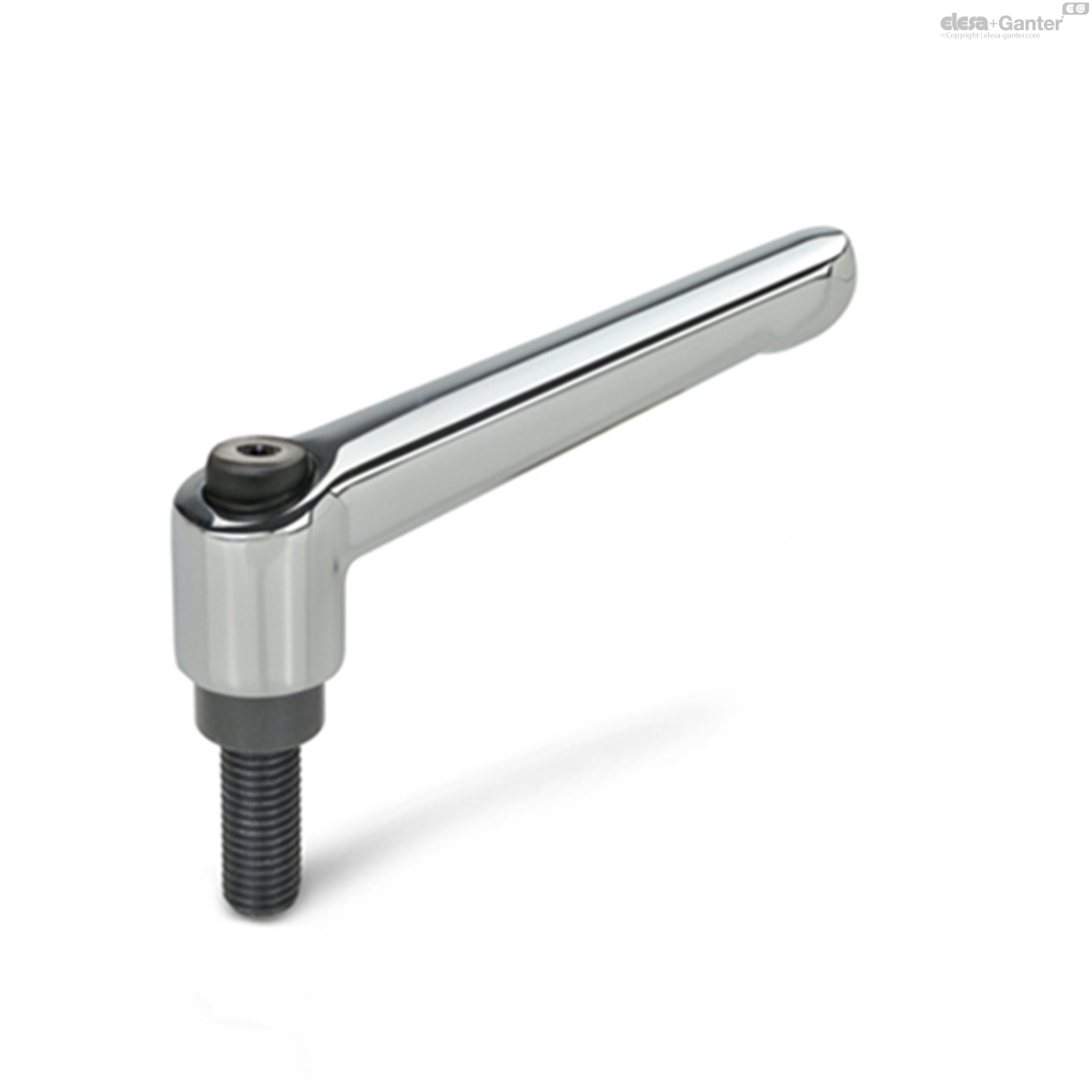

300-78-M12-80-CR
GN-300 Avec goujon fileté
Zinc moulé sous pression, Douille / Boulon fileté Acier
Délai: 1-2 semaines Toutes les tailles et variantes de GN 300
🔒 Prix, stock en temps réel & téléchargements CAO
Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.
Se connecter Demander un compte
Fiche technique
Handle
Handle
Zinc die casting
- Powder coated
- Black, RAL 9005, textured finish SW
- Black, RAL 9005, silk finish SZ
- Orange, RAL 2004, textured finish OS
- Red, RAL 3000, textured finish RS
- Silver, RAL 9006, textured finish SR
- Chrome plated CR
- Uncoated RH
- Tumbled
Insert / Retaining screw
Insert / Retaining screw
Steel, blackened
Property class 5.8 (external thread)
Adjustable hand levers GN 300 are ideal whenever parts have to be clamped in a confined space or in a particular lever position. The centre insert is connected to the lever via serrations which can easily be disengaged.
Pulling the lever, disengages the serrations and allowing it to be swivelled to the ideal clamping position. On releasing the lever the serrations automatically re-engage.
