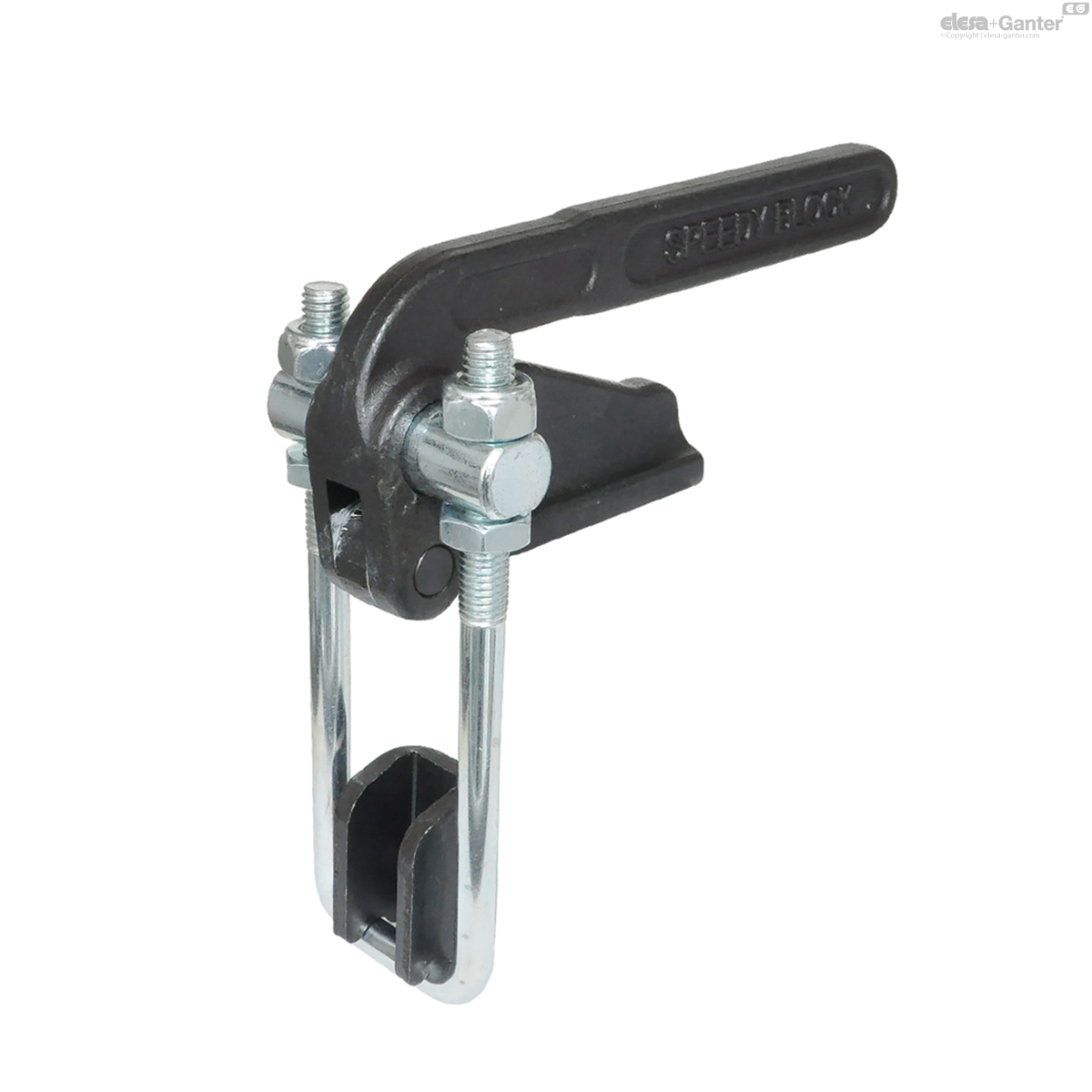

GN 852.1 Sauterelles à crochet

type robuste
  • Icons/__logo__RoHS__.png
  • Icons/__logo__SPEEDYBLOCK__.png

Délai: 1-2 semaines Toutes les tailles et variantes de GN 852.1

🔒 Prix, stock en temps réel & téléchargements CAO

Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.

Se connecter Demander un compte

Caractéristiques techniques

Code
GN 852.1-1400-T3S
Size
1400
FH in N
12000
Fh in N
12000
a2
29
b1
61
b3
46
b4
26
b5
64
b6
42
b7
26
d1
M10
h1 ≈
64
h2
24
l1 ≈
171
l2 min.
42
m4
12.5
m5
17
r ≈
109
s
8
w1
50
w2 ≈
22
1018
852.1-1400-T3S drawing

Types

  • Type T: with mounting holes, without U-bolt latch, with catch
  • Type T3: with mounting holes, with U-bolt latch, with catch
  • Type TS: for welding, without U-bolt latch, with catch
  • Type T3S: for welding, with U-bolt latch, with catch

Base / operating handle

Steel C22

  • forged
  • blackened

Catch

Sheet metal

blackened

U-bolt latch / bearing pins

Steel St 37

zinc plated, blue passivated

All moving parts

lubricated with special grease

The U-bolt latch of GN 852.1 vertical hook type toggle clamps is adjustable within the adjusting range.

Once in the clamping position, the latch bolt is perpendicular to the clamping arm and to the mounting base of the toggle clamp.

In addition to the standard lengths of the U-bolt latches shown in the table, a variety of other lengths are also available under the GN 951.2 series.-
