706.2-48-B22-A4
GN 706.2-A4 Acier inoxydable
Délai: 1-2 semaines Toutes les tailles et variantes de GN 706.2
🔒 Prix, stock en temps réel & téléchargements CAO
Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.
Se connecter Demander un compte
Fiche technique

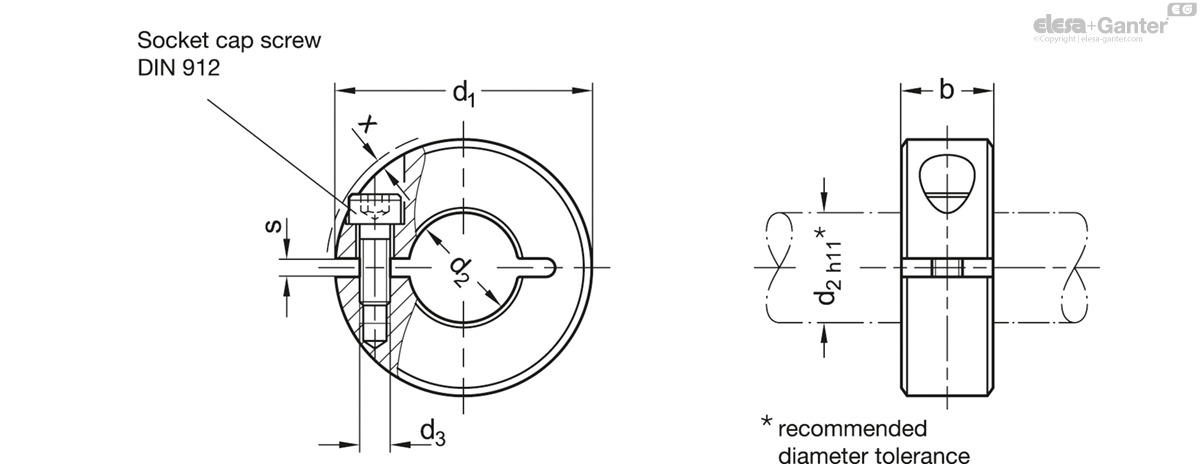

Caractéristiques techniques
- Code
- GN 706.2-48-B22-A4
- d1
- 48
- d2 E8
- B 22
- b ±0.2
- 15
- d3
- M 5
- s
- 1.6
- x ≈ Max. protrusion
of cap screw - 0
- 160
Version in Steel ST
Sintered (Distaloy AB)
Black oxidised with vapor
Socket cap screw DIN 912
Steel, plain
Version in Stainless steel NI
Sintered AISI 316LHC
Socket cap screw DIN 912-A2
Version in Stainless steel A4
Turned AISI 316
Weldable
Socket cap screw DIN 912-A4
Version in Aluminum AL
Turned, tumbled
Socket cap screw DIN 912-A2
Semi-split shaft collars GN 706.2 can safely and simply be assembled by reducing the slot height with high clamping force and thus they act, for instance, like an end stop. The surface of the shaft or the axle is not damaged.
The thread d3 for sizes d1 = 16 to 36 is designed as a through hole; for sizes d1 = 42 and larger, it is designed as blind hole.
- Damping Washers GN 7062.30
