412-8-47-C-2 GN 412 Doigts d'indexation

412-8-47-C-2

GN 412 Doigts d'indexation

avec et sans position de repos
  • Icons/__logo__RoHS__.png
  • Icons/__logo__profile__.png

En stock Toutes les tailles et variantes de GN 412

🔒 Prix, stock en temps réel & téléchargements CAO

Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.

Se connecter Demander un compte

Caractéristiques techniques

Code
GN 412-8-47-C-2
d1 Pin 0/-0.06
Bore
+0.05/+0.1
8
b
47
d3
M 5
d4
33
h
34
k
35
l1
39
l2 min.
10
l4
18
s
14
A/F
17
t
12
Spring load in N ≈
initial
9
Spring load in N ≈
end
35
150

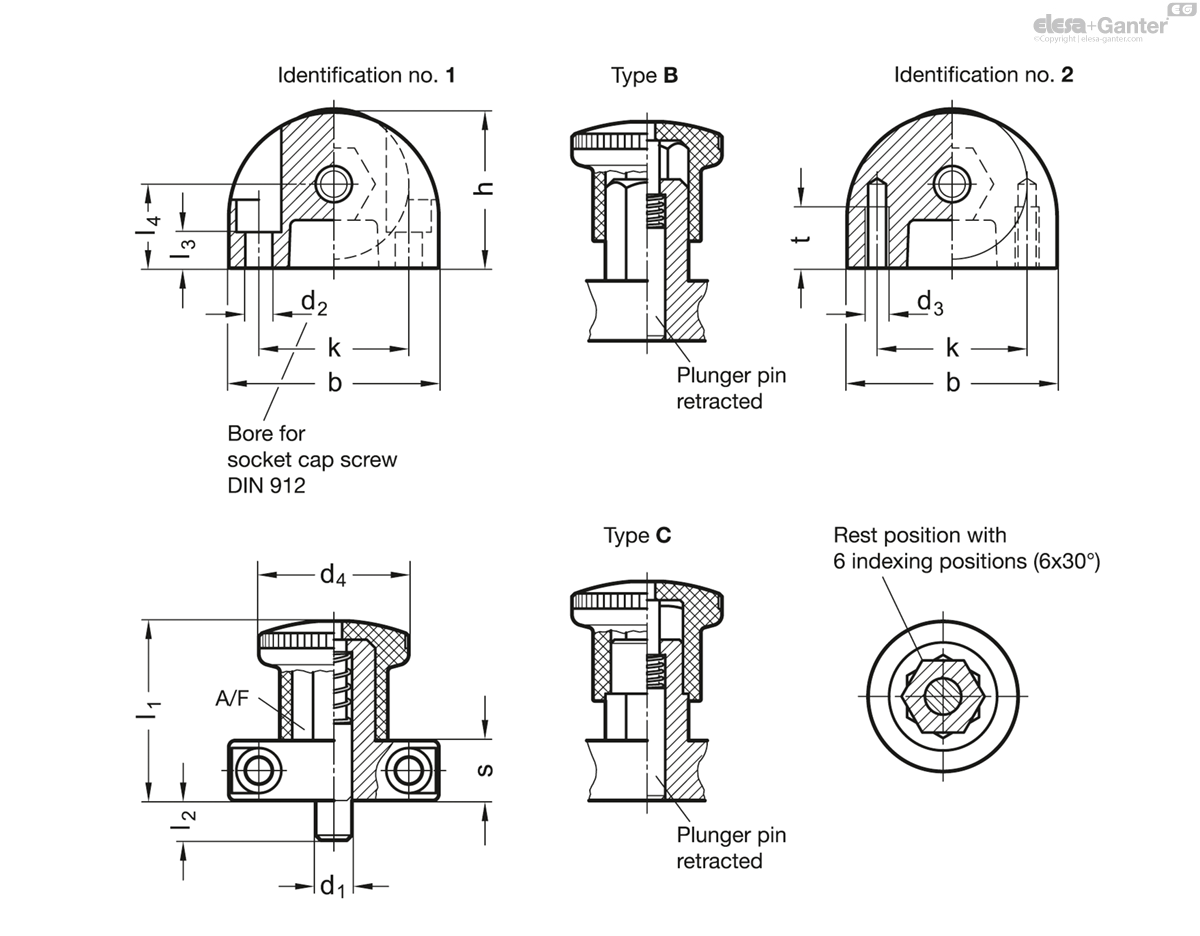

412-8-47-C-2 drawing

Types

  • Type B: without rest position
  • Type C: with rest position

Identification no.

  • No. 1: Mounting from the front
  • No. 2: Mounting from the back

Guide

Zinc die casting

plastic coated

black, textured finish

Pin

Stainless Steel AISI 303

Spring

Stainless Steel AISI 301

Knob

Plastic (Polyamide PA)

  • black, matt finish
  • not removable

The outstanding feature of the indexing plungers GN 412 is their compact design. They are mounted either from the front with cylinder head screws or from the back through threads. In Type C, the knob can be turned by 30° after retracting the indexing pin, holding it in the 'retracted' position by means of the indexing lock.

The dimensions and connection measurements match the combination with GN 412.1 mounting blocks in connection with positioning bushings GN 412.2 or GN 412.3.
