339-29-M8-35-KR-NI GN 339-NI Acier inoxydable

339-29-M8-35-KR-NI

GN 339-NI Acier inoxydable

Acier / Acier inoxydable / Tige filetée , non réglable
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Délai: 1-2 semaines Toutes les tailles et variantes de GN 339

🔒 Prix, stock en temps réel & téléchargements CAO

Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.

Se connecter Demander un compte

Caractéristiques techniques

Code
GN 339-29-M8-35-KR-NI
d1
29
d2
M 8
l1
35
l2 ≈
8
l3 ≈
5
l4
0.4
A/F
4
Static load
in kN
13
37

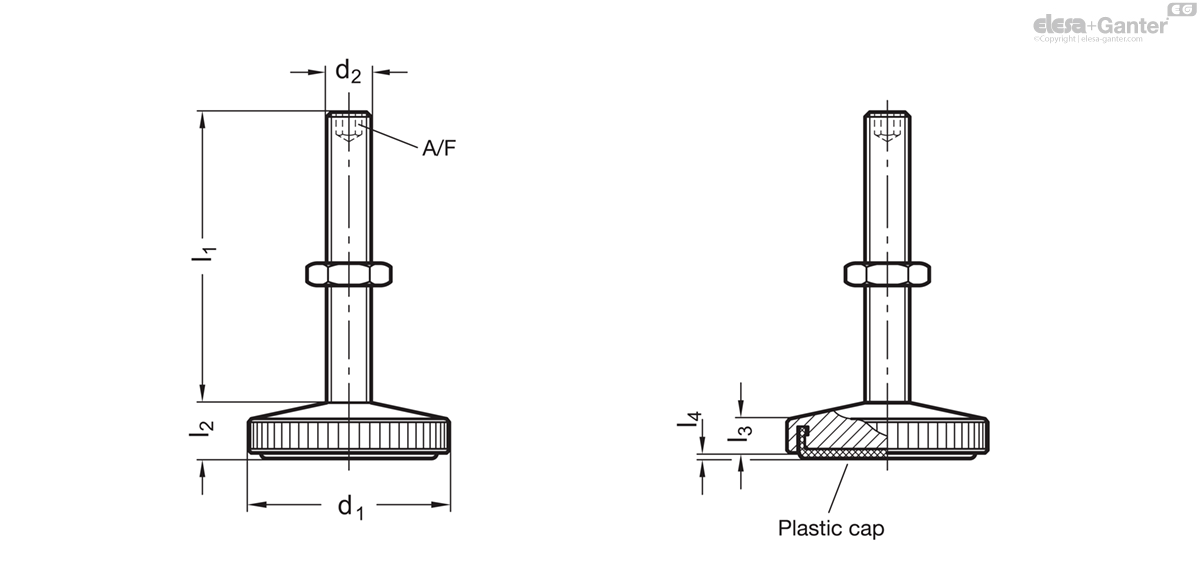

339-29-M8-35-KR-NI drawing

Types

  • Type KS: with plastic cap, gliding
  • Type KR: with plastic cap, non-gliding

Version in Steel ST

  • Tensile strength class 5.8
  • zinc plated, blue passivated
  • Hexagon nut ISO 4035, Steel zinc plated, blue passivated

Version in Stainless Steel NI

  • AISI 303
  • Hexagon nut ISO 4035, Stainless Steel AISI 304

Plastic caps:

Type KS

Technopolymer (Polyacetal POM)

white (natural colour) RAL 9001

Type KR

Elastomer (TPE)

73 shore A ≈, black

Levelling mount GN 339 are used for applications in cases where no jointed link is required between foot and adjusting screw.

For this reason they offer the advantage of reduced height.

The gliding and/or the non-gliding protective cap is safely fixed in the foot.
