817.8-12-15-CK-NI GN 817.8-NI Doigts d'indexation, Acier inoxydable

817.8-12-15-CK-NI

GN 817.8-NI Doigts d'indexation, Acier inoxydable

Acier / Acier inoxydable, amovible, avec ou sans position de repos
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

En stock Toutes les tailles et variantes de GN 817.8

🔒 Prix, stock en temps réel & téléchargements CAO

Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.

Se connecter Demander un compte

Caractéristiques techniques

Code
GN 817.8-12-15-CK-NI
d1 Pin -0.02/-0.05 Bore H7
12
l1
15
l2
17
d2
M20x1.5
d3
33
d4
9
d4 -0.05
9
d5
M6
k
28.5
l3
35
l4
71.5
l5
33
l6
10
l7
47.3
l8
31.3
l8 ±0.1
31.3
t
13.5
A/F
22
Spring load in N ≈
initial
11.5
Spring load in N ≈
end
40
194

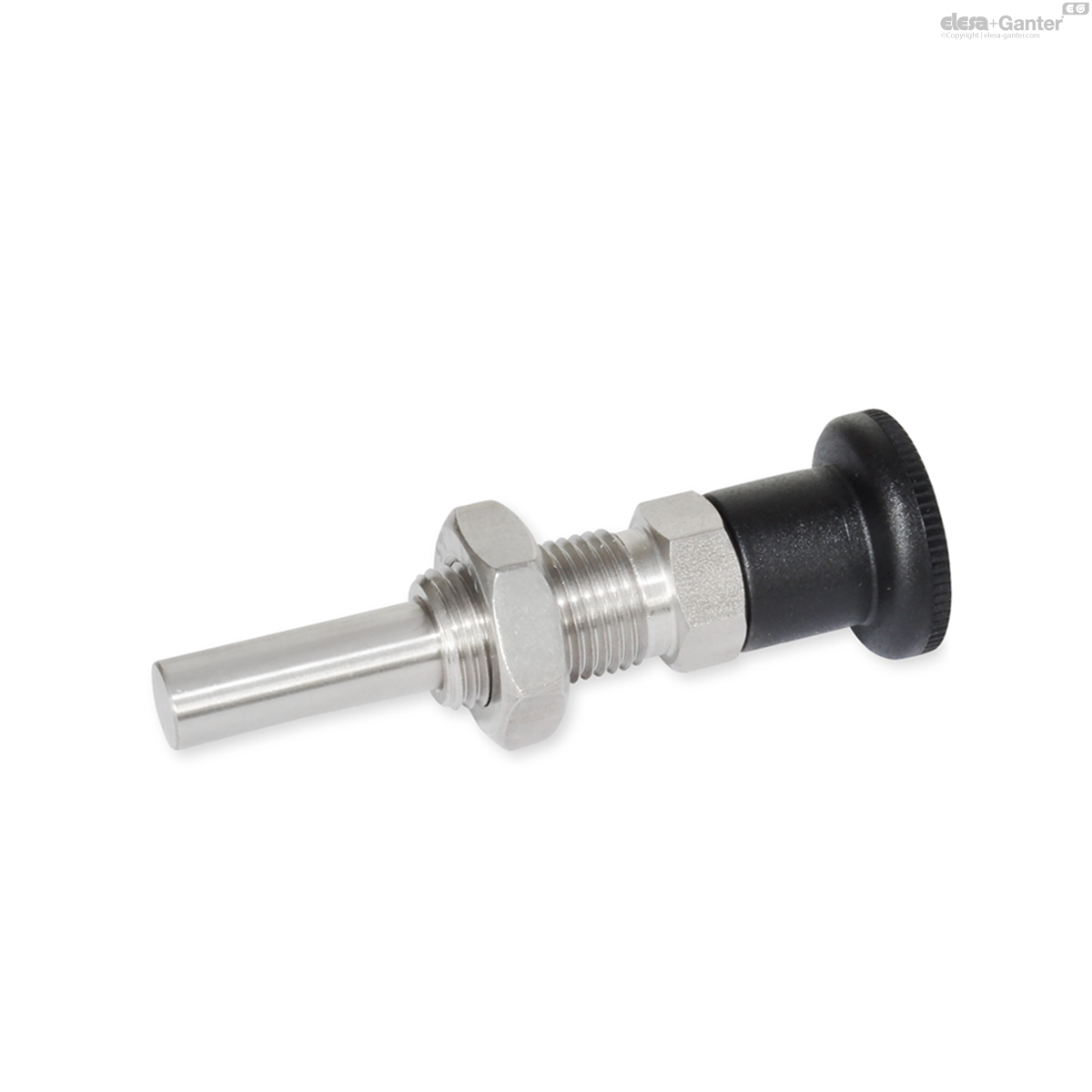

817.8-12-15-CK-NI drawing

Types

  • Type B: without rest position, without lock nut
  • Type BK: without rest position, with lock nut
  • Type C: with rest position, without lock nut
  • Type CK: with rest position, with lock nut

Version in Steel ST

blackened

  • Threaded body
  • Lock nut

Version in Stainless Steel NI

  • Threaded body, AISI 303
  • Lock nut, AISI 304

Pin

Stainless Steel AISI 303

Countersunk screw DIN 7991

Stainless Steel AISI 304

Knob

  • Plastic (Polyamide PA)
  • black, matt

Indexing plungers GN 817.8 have been designed such that special versions of the indexing pins can also be made economically in smaller unit quantities.

If reqired, the indexing pins can be machined or made by the user as shown in the drawing above. They are assembled with a countersunk screw and can therefore be assembled several times. All parts are supplied in a non-assembled set.

The indexing plungers type C / CK are used for such applications where the plunger has to stay in its retracted position. To achieve this, the knob is rotated by 90° degrees after being retracted. A notch keeps the plunger in this position.
