GN 484 Fixations par pince de fixation
Délai: 1-2 semaines Toutes les tailles et variantes de GN 484
🔒 Prix, stock en temps réel & téléchargements CAO
Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.
Se connecter Demander un compte
Fiche technique

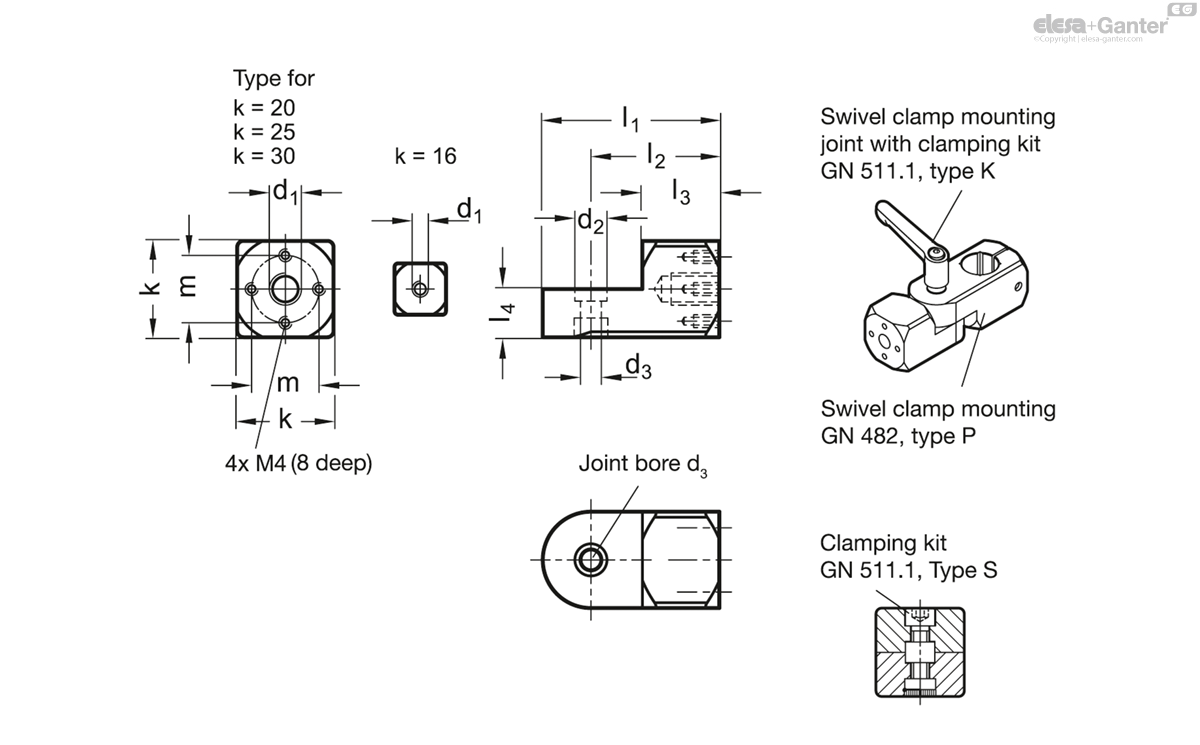

Caractéristiques techniques
- Code
- GN 484-M8-16-MT
- d1
- M 8
- k
- 16
- d2
- 7
- d3
- 4.5
- l1
- 30
- l2
- 22
- l3
- 13
- l4
- 8
- Clamping kit for 3 Type S
- GN 511.1-M4-16-S
- Clamping kit for 3 Type K
- GN 511.1-M4-16-K
- 12
Aluminium
- matt, slide ground MT
- anodized black ELS

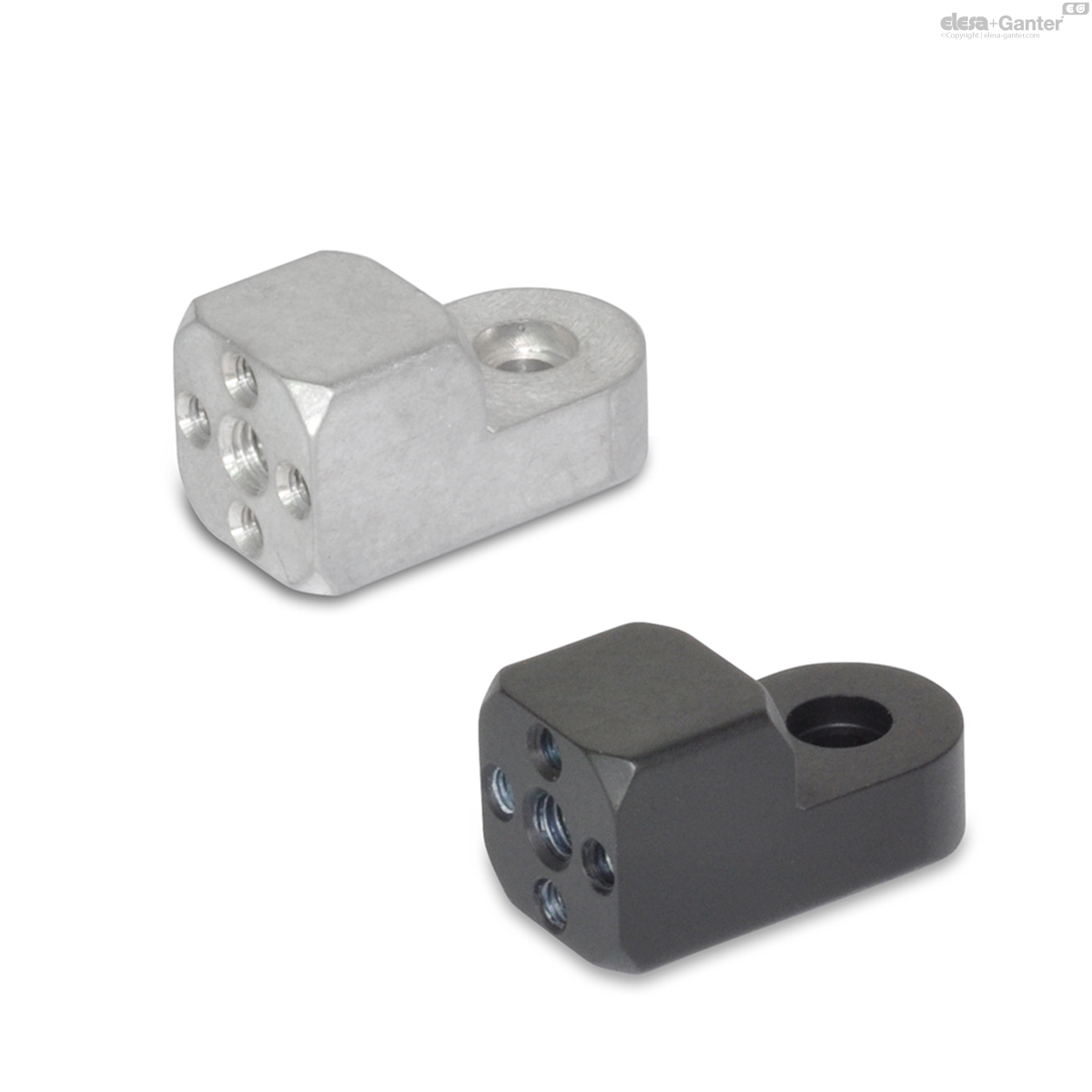

Attachment clamp mountings GN 484 are primarily designed for mounting sensor holders GN 479 and retaining plate GN 479.1 . They are fitted with a central thread and for the size with k = 20 and higher, an additional bore template 4 x M4.
Using swivel clamp mountings GN 482 and T-Swivel clamp mountings GN 483 with the same k dimensions, attachment clamp mountings GN 484 are easily combined into articulated swivel clamp mounting joints. Clamping kits GN 511.1 with screw, type S and adjustable hand lever, type K are available for this purpose (description see table of dimensions).
