709.7-13-16-B GN 709.7 Patins de serrage

709.7-13-16-B

GN 709.7 Patins de serrage

avec filetage femelle
  • Icons/__logo__RoHS__.png

Délai: 1-2 semaines Toutes les tailles et variantes de GN 709.7

🔒 Prix, stock en temps réel & téléchargements CAO

Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.

Se connecter Demander un compte

Caractéristiques techniques

Code
GN 709.7-13-16-B
d1 h9
13
l1 ±0.13
16
d2
M 5
d3
8.5
d4
10
l2
5.7
Static load
max. in kN
20
16

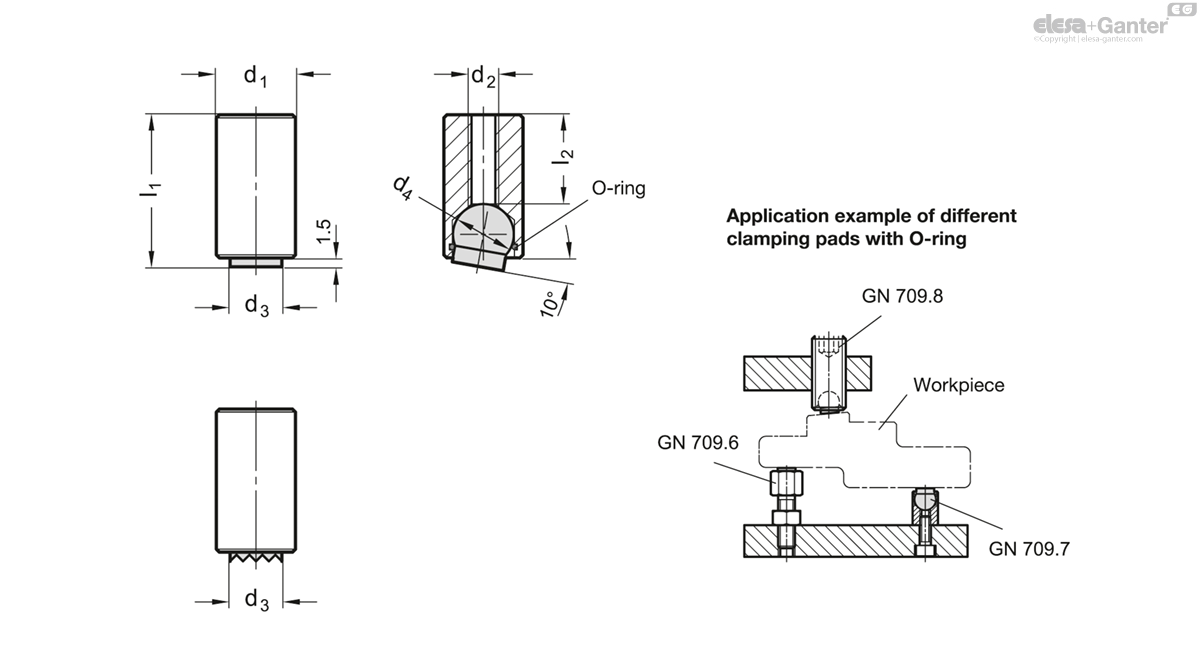

709.7-13-16-B drawing

Types

  • Type B: Ball steel, smooth contact face
  • Type R: Ball steel, serrated contact face
  • Type K: Ball plastic, smooth contact face

Steel

  • tempered
  • Tensile strength class 10.9

Ball

Type B and R:

Steel hardened (54+2 HRC)

Type K:

Plastic (Polyacetal POM)

O-Ring

Rubber NBR (Perbunan®)

Clamping pads GN 709.7 are also used in jig and fixture construction, for example for clamping workpieces, as movable bearing surface or as stop. The swivel-mounted ball compensates uneven and non-parallel contact surfaces by as much as 10°. It is also secured against further twisting.

The O-ring holds the ball in position and prevents dirt from penetrating, resulting in a long service life and constant mobility.
