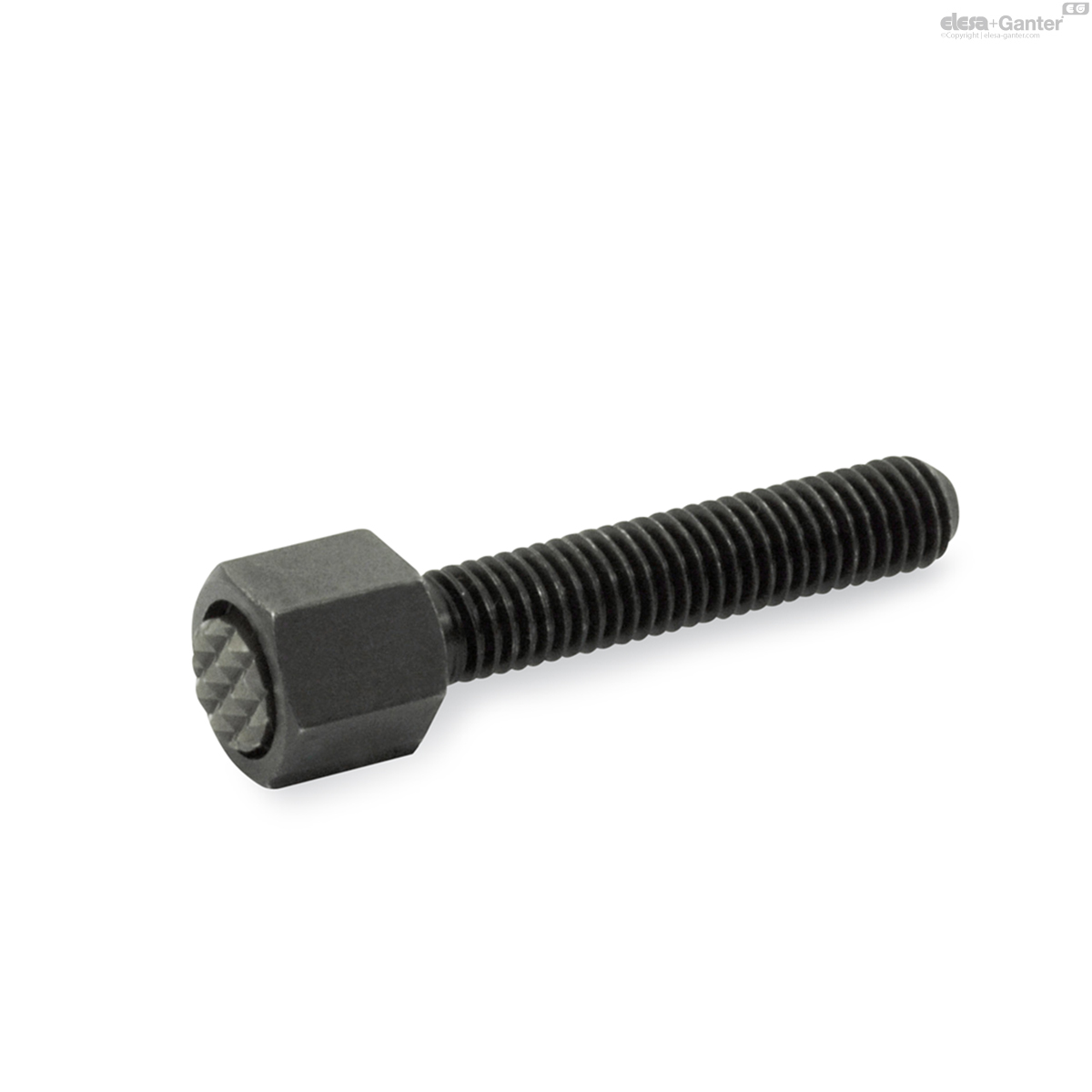

GN 709.6 Patins de serrage
Délai: 1-2 semaines Toutes les tailles et variantes de GN 709.6
🔒 Prix, stock en temps réel & téléchargements CAO
Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.
Se connecter Demander un compte
Fiche technique
Caractéristiques techniques
- Code
- GN 709.6-M6-25-K
- d1
- M 6
- l1
- 25
- d2
- 6
- d3
- 7
- l2
- 9.5
- A/F
- 10
- e
- 11.5
- Static load
max. in kN - 2
- 8
Types
- Type B: Ball steel, smooth contact face
- Type R: Ball steel, serrated contact face
- Type K: Ball plastic, smooth contact face
Steel
- tempered
- Tensile strength class 10.9
Ball
Type B and R:
Steel hardened (54+2 HRC)
Type K:
Plastic (Polyacetal POM)
O-Ring
Rubber NBR (Perbunan®)
Clamping pads GN 709.6 are also used in jig and fixture construction, for example for clamping workpieces, as movable bearing surface or as stop. The swivel-mounted ball compensates uneven and non-parallel contact surfaces by as much as 10°. It is also secured against further twisting.
The O-ring holds the ball in position and prevents dirt from penetrating, resulting in a long service life and constant mobility.
